OPERATOR'S CAB ELECTRICAL WIRING AND SWITCHES ( - 1974)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
19	AH80521	1	DOOR	-
19	H81814	1	Panel	(SUB AH80521 WITH H82000)
20	AH80090	1	Wiring Lead	406 MM (16") LONG, (WIPER)
20	AH85923	1	Wiring Lead	406 MM (16") LONG, (WIPER)
21	AN112432	1	Toggle Switch	(SUB FOR AU42024)
21	AT129467	1	Switch	WIPER (SUB FOR AT38296)
21	T62635	1	KNOB	WIPER (SUB FOR T44545)
22	AH84587	1	Toggle/Rocker Switch	(SUB FOR AH80198)
22	R44097	2	Nut	(AIR CONDITIONER)
23	AH84582	1	Wiring Harness	(SUB FOR AH80704) LONG (AIR CONDITIONER)
24	AH80199	1	Relay	(AIR CONDITIONER)
25	AH84580	1	Wiring Lead	(SUB FOR AH80705) LONG (AIR CONDITIONER)
26	AH80168	1	KNOB	(PRESSURIZER) (1 USED, AIR CONDITIONER)
27	AH80197	1	SWITCH	(AIR CONDITIONER)
27	R44165	1	Lock Nut	(AIR CONDITIONER)
28	AH80196	1	Plate	(AIR CONDITIONER)
29	AH80690	1	PANEL	(SUB FOR AH80206)
30	21H1299	1	SCREW	0.164" X 3/8"
31	-	1	Part 19	203 MM (8") LONG, (USE TO GROUND OPERATOR'S CAB) (MAKE FROM R32009, R32019 AND R32022 IN AR84006 WIRE REPAIR KIT)
32	AH84588	1	SWITCH	(SUB FOR AH80180) PRESSURIZER
32	R44165	1	Lock Nut	-
33	H81679	1	GROMMET	-
34	AH80182	1	WIRING HARNESS	-
35	AH84584	1	Wiring Harness	(SUB FOR AH80184)
36	-	1	Part 25	127 MM (5") LONG, (AIR CONDITIONER) (MAKE FROM TY16076 AND (2) R32018 IN AR84006 WIRE REPAIR KIT)
37	AH84617	1	Lamp	(SUB FOR AH84412) HIGH PRESSURE WARNING (AIR CONDITIONER)
38	H76064	3	Clip	(AIR CONDITIONER)
39	H84109	1	GASKET	-
40	H85835	1	HOUSING	-
41	H87158	1	Insulator	-

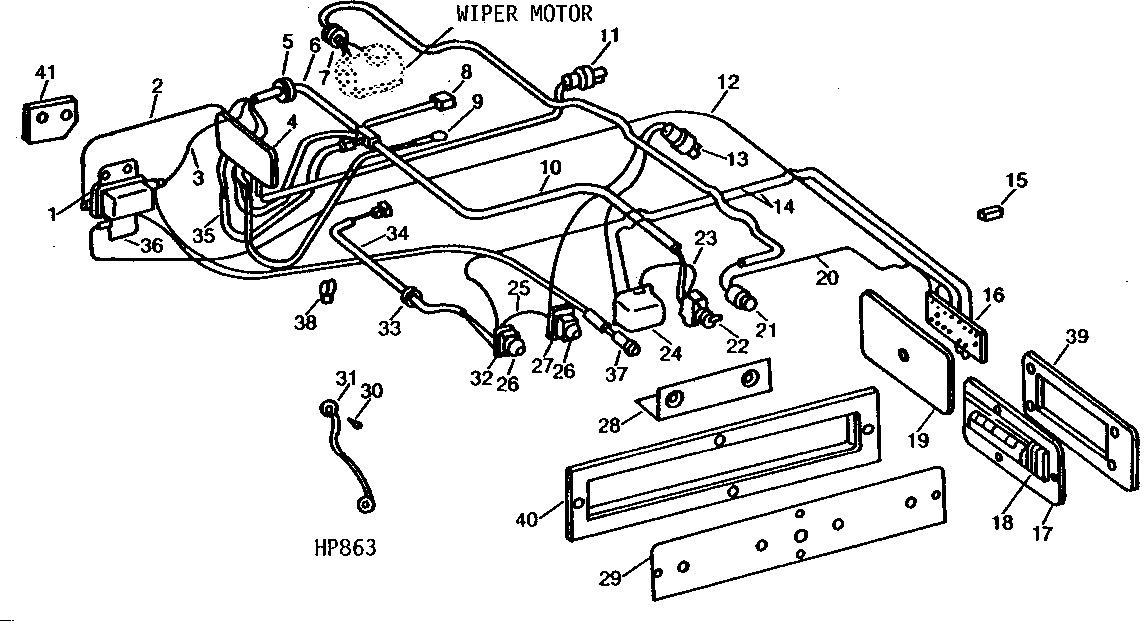

OPERATOR'S CAB ELECTRICAL WIRING AND SWITCHES ( - 1974)

Нет текстового описания
