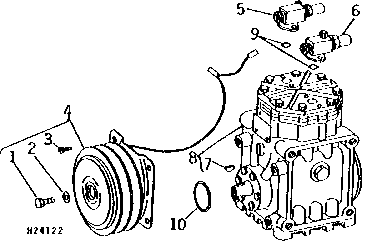

OPERATOR'S CAB COMPRESSOR AND ELECTROMAGNETIC CLUTCH ( - 1974)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2529	1	Cap Screw	5/16" X 1"
2	24M7024	1	Washer	9 X 28 X 3 mm
3	N14820	4	SELF-LOCKING SCREW	(SUB FOR H86858)
4	AH85846	1	Pulley	152 MM (6") DIA. SHEAVE, (SUB FOR AH79301)
5	AH80247	1	Flow Control Hyd. Valve	SUCTION (FLANGE TYPE)
5	AE28665	1	Valve	SUCTION (ROTO-LOCK TYPE)
6	AH80248	1	Flow Control Hyd. Valve	DISCHARGE (FLANGE TYPE)
6	AE28664	1	Valve	DISCHARGE (ROTO-LOCK TYPE)
7	26H10	1	Shaft Key	5/32" X 5/8"
8	AH84826	1	Compressor	(SUB FOR AH17726)
9	H81744	2	O-Ring	-
10	A4494R	1	O-Ring	(SUB FOR H86894)
..	AH80721	1	Seal Kit	(CONSISTS OF SEAL ASSEMBLY, PLATE, TWO GASKETS, O-RING, AND SERVICE INSTRUCTIONS FOR SERIES F COMPRESSORS)
..	AH83601	1	Seal Kit	(CONSISTS OF SEAL ASSEMBLY, PLATE, TWO GASKETS, O-RING, DUST CAP, AND SERVICE INSTRUCTIONS FOR SERIES M COMPRESSORS)
..	AH80724	1	Gasket Kit	(CONSISTS OF ALL GASKETS AND O-RINGS FOR SERIES F AND M COMPRESSORS)
..	AH80725	1	Kit	(CONSISTS OF VALVE PLATE ASSEMBLY AND GASKETS FOR SERIES F AND M COMPRESSORS)

OPERATOR'S CAB COMPRESSOR AND ELECTROMAGNETIC CLUTCH ( - 1974)

Нет текстового описания
