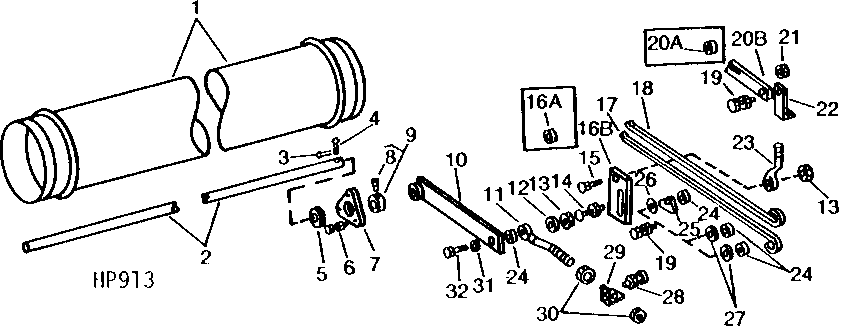

FEEDER CONVEYOR IDLER SHAFT AND FEEDER DRUM ( - 4500)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH76477	1	Drum	-
2	H77750	1	Shaft	-
3	11M1383	2	Cotter Pin	3.200 X 20 mm
4	H81710	2	Pin Fastener	DRILLED
5	JD8665	2	Ball Bearing	(SUB FOR JD8555)
6	03H1500	6	Bolt	3/8" X 1"
6	14H812	6	NUT	3/8"
7	H80806	2	Housing	-
8	22H897	2	Set Screw	1/4" X 1/4"
9	JD8554	2	Eccentric Locking Collar	-
10	AH116698	2	Arm	FLOAT (SUB FOR AH79728)
11	H76694	2	Eyebolt	-
12	12H301	4	Lock Washer	1/2"
13	14H1040	4	Nut	1/2"
14	03H1544	1	Bolt	5/16" X 1-1/4"
14	14H785	1	Nut	5/16"
14	03H1480	1	Bolt	3/8" X 1-1/4"
14	14H812	1	NUT	3/8"
15	12H301	2	Lock Washer	1/2"
15	H79762	2	Bolt	-
15	03H1931	2	Bolt	5/8" X 3-1/2"
17	H81478	2	Spring	(LOWER)
18	H81477	2	Spring	(UPPER)
19	19H1721	6	CAP SCREW	1/2" X 1-1/2"
19	12H301	6	Lock Washer	1/2"
19	14H1040	6	Nut	1/2"
21	12H301	4	Lock Washer	1/2"
21	14H1040	4	Nut	1/2"
22	H80230	2	Bracket	-
23	H80344	2	EYEBOLT	-
24	H81277	6	Bushing	-
25	H80920	2	Fulcrum	-
26	24H1916	2	Washer	17/32" X 3-1/2" X 0.180", (SUB FOR H80228)
27	24H1211	2	Washer	9/16" X 1-3/8" X 0.105"
28	14H785	4	Nut	5/16"
28	03H1540	4	Bolt	5/16" X 3/4"
29	H81074	2	Clip	-
30	14H1039	4	Nut	5/8"
31	24H1162	4	Washer	17/32" X 1-1/4" X 0.060"
32	H31381	2	Bolt	-
16A	H65694	2	Washer	-
16B	H82245	1	Stop	(RH) LOWER
16B	H82244	1	Stop	(LH) LOWER
20A	H65694	1	Washer	(UPPER)
20A	H65694	2	Washer	(UPPER)
20B	H84946	1	Stop	(SUB FOR H83451) (UPPER, L.H.)
20B	H84945	1	Stop	(SUB FOR H83450) (UPPER, R.H.)
