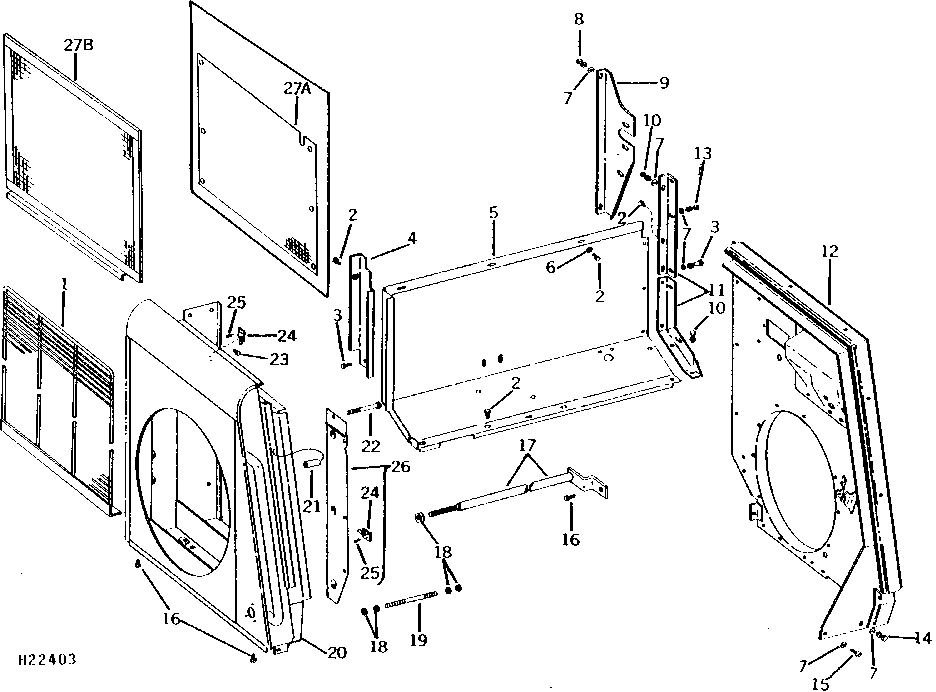

FAN SHROUD, ENGINE COMPARTMENT REAR SHEET, AND INSTRUMENT WALL ( - 100000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH79227	1	Grille	-
2	H65108	7	Screw	SELF-TAPPING
2	H65108	11	Screw	SELF-TAPPING
3	19H1813	6	CAP SCREW	5/16" X 5/8"
3	14H785	6	Nut	5/16"
4	H79389	1	Extension	(RH)
5	AH77251	1	Sheet	REAR
5	AH85049	1	Sheet	REAR
6	24M7207	2	Washer	8.400 X 24 X 2 mm
7	24H1136	8	Washer	11/32" X 11/16" X 0.065"
8	19H1900	2	Cap Screw	5/16" X 3/4"
8	14H785	2	Nut	5/16"
9	H80160	1	Bracket	(LH)
10	19H1905	3	Cap Screw	5/16" X 1"
10	14H785	3	Nut	5/16"
11	H78070	1	Angle	-
11	H84581	1	Angle	CORNER
12	AH76576	1	Partition	INSTRUMENT
12	AH81747	1	Partition	INSTRUMENT
13	19H2127	1	Cap Screw	5/16" X 7/8"
13	14H785	1	Nut	5/16"
14	19H1936	1	Cap Screw	3/8" X 3/4"
14	14H785	1	Nut	5/16"
15	21H1304	1	Screw	5/16" X 3/4"
15	14H785	1	Nut	5/16"
16	19H1936	4	Cap Screw	3/8" X 3/4"
17	AH79066	1	Rail	-
18	14H1040	6	Nut	1/2"
18	12H301	6	Lock Washer	1/2"
19	H79238	1	Stud	-
20	AH83911	1	Shroud	-
20	AH81743	1	Shroud	-
20	AH79229	1	Shroud	-
21	28H1673	1	Bushing	0.493" X 0.675" X 4-3/16"
22	19H2104	1	Cap Screw	3/8" X 5"
23	19H2020	2	Cap Screw	5/16" X 1/2"
24	AP23835	2	Latch	-
25	H62547	2	Rivet	-
26	H82807	1	Plate	(SUB FOR AH78123)
26	AH83913	1	Plate	REPAIR (CONSISTS OF H82807, AP23835 AND (2) H62547)
27A	H80831	1	Screen	(CORN)
27B	AH83914	1	Screen	(CORN)

FAN SHROUD, ENGINE COMPARTMENT REAR SHEET, AND INSTRUMENT WALL ( - 100000)
