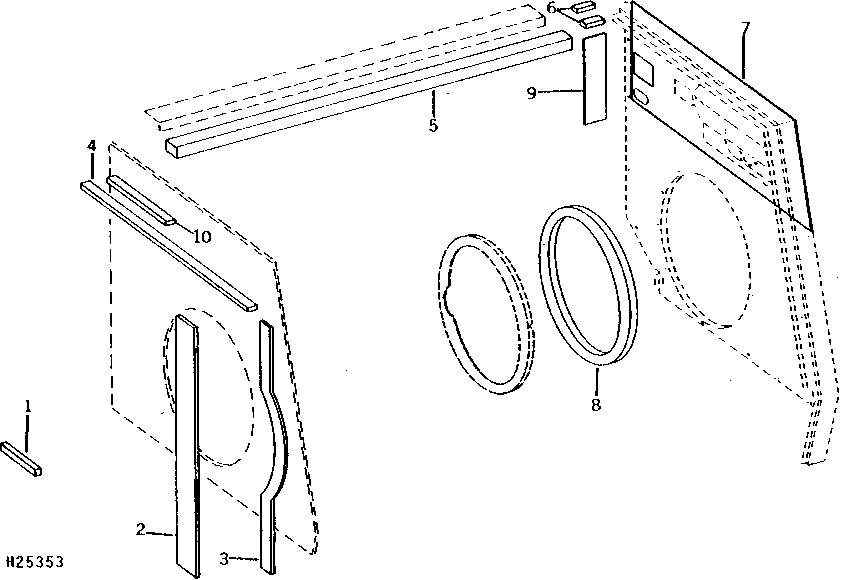

ENGINE COMPARTMENT SEALS (100001 - )

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	19 MM X 19 MM X 76 MM (3/4" X 3/4" X 3"), PRESSURE SENSITIVE (BETWEEN ROTARY SCREEN DOOR STOP BRACKET AND CORNER FRAME) (CUT FROM H88771)
2	-	1	Part 2	6 MM X 64 MM X 528 MM (1/4" X 2-1/2" X 20-13/16"), PRESSURE SENSITIVE (RH FRONT OF RADIATOR) (CUT FROM H88772)
3	-	1	Part 3	19 MM X 19 MM X 737 MM (3/4" X 3/4" X 29"), PRESSURE SENSITIVE (BETWEEN RADIATOR AND CORNER FRAME AT FRONT), (CUT FROM H88769)
4	-	1	Part 4	19 MM X 19 MM X 813 MM (3/4" X 3/4" X 32"), PRESSURE SENSITIVE (BETWEEN RADIATOR AND CORNER FRAME AT TOP) (CUT FROM H88769)
4	-	1	Part 5	10 MM X 25 MM X 711 MM (3/8" X 1" X 28"), PRESSURE SENSITIVE (BETWEEN RADIATOR AND CORNER FRAME AT FRONT) (CUT FROM H88769)
5	-	1	Part 6	25 MM X 25 MM X 876 MM (1" X 1" X 34-1/2"), (BETWEEN TOP DOOR HINGE SEAL AND GRAIN TANK) (CUT FROM H81326)
6	-	2	Part 7	27 MM X 27 MM X 76 MM (1-1/16" X 1-1/16" X 3"), (UNDER GRAIN TANK CHANNEL NEXT TO INSTRUMENT WALL AND BETWEEN L.H. GUSSET AND INSTRUMENT WALL), (CUT FROM H88770)
7	H86990	1	Seal	13 MM X 445 MM X 908 MM (1/2" X 17-1/2" X 35-3/4"), (SUB FOR H86378) PRESSURE SENSITIVE (ON ENGINE SIDE OF INSTRUMENT WALL AT TOP)
8	-	1	Part 9	15 MM X 18 MM X 1600 MM (37/64" X 23/32" X 63"), (BETWEEN INSTRUMENT WALL AND SEAL PLATE) (CUT FROM H85782)
9	-	1	Part 10	3 MM X 3 MM X 457 MM (1/8" X 1-1/4" X 18"), (BETWEEN REAR SHEET AND CORNER REINFORCEMENT ANGLE AT TOP), (CUT FROM H88769)
10	-	1	Part 11	19 MM X 19 MM X 203 MM (3/4" X 3/4" X 8"), PRESSURE SENSITIVE (BETWEEN RADIATOR AND CORNER FRAME AT LEFT FRONT), (CUT FROM H88769)
..	AR77143	1	Sealant	(5 OZ. (0.14 KG) TUBE), (SUB FOR AR66754)
