ENGINE AND OPERATOR'S PLATFORM ANGLES AND SUPPORTS ( - 100001)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

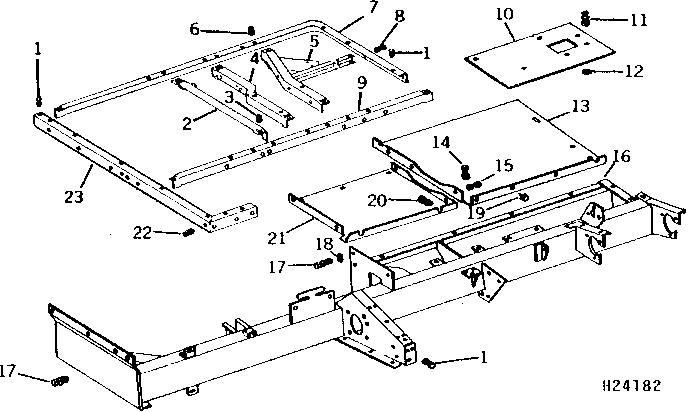

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	8	Lock Washer	3/8"
1	19H1731	8	Cap Screw	3/8" X 1"
1	14H812	8	NUT	3/8"
2	AH77020	1	Angle	(LH) STEERING COLUMN
2	AH87796	1	Angle	(LH) STEERING COLUMN
3	21H1137	1	Screw	5/16" X 1-1/4"
3	12H303	1	Lock Washer	5/16"
3	14H785	1	Nut	5/16"
4	AH77025	1	Angle	(RH) STEERING COLUMN
4	AH87795	1	Angle	(RH) STEERING COLUMN
5	AH93670	1	Support	(SUB FOR AH77026) CONTROL VALVE
6	14H785	7	Nut	5/16"
6	12H303	7	Lock Washer	5/16"
6	19H1905	7	Cap Screw	5/16" X 1"
7	H78809	1	Angle	FRONT
8	19H1900	2	Cap Screw	5/16" X 3/4"
8	12H303	2	Lock Washer	5/16"
8	14H785	2	Nut	5/16"
9	H78808	1	Angle	CROSS, FRONT
10	H95043	1	Sheet	(SUB FOR H86792 AND H89660)
11	21H1354	4	SCREW	3/8" X 1"
11	12H304	4	Lock Washer	3/8"
11	14H812	4	NUT	3/8"
12	24H1378	2	Washer	11/16" X 1-15/32" X 0.134", (GASOLINE)
13	H86582	1	Sheet	-
14	19H1792	1	Cap Screw	1/2" X 1"
14	12H301	1	Lock Washer	1/2"
14	14H1040	1	Nut	1/2"
15	19H1813	4	CAP SCREW	5/16" X 5/8"
15	12H303	4	Lock Washer	5/16"
15	14H785	4	Nut	5/16"
16	AH91116	1	Support	(SUB FOR AH87709)
16	AH93265	1	Support	-
17	14H1040	3	Nut	1/2"
17	12H301	3	Lock Washer	1/2"
17	19H1815	3	Cap Screw	1/2" X 1-1/4"
18	24H1788	2	WASHER	17/32" X 1-1/8" X 0.060"
19	H65108	2	Screw	SELF-TAPPING
19	H76139	2	Screw	SELF-TAPPING
20	19H1936	1	Cap Screw	3/8" X 3/4"
20	12H304	1	Lock Washer	3/8"
20	14H812	1	NUT	3/8"
21	H82617	1	Sheet	(LH)
22	21H1304	1	Screw	5/16" X 3/4"
22	12H303	1	Lock Washer	5/16"
22	14H785	1	Nut	5/16"
23	H78827	1	Angle	(LH)
