ENGINE AND OPERATOR'S PLATFORM ANGLES AND SUPPORTS (100000 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	8	NUT	3/8"
1	19H1731	8	Cap Screw	3/8" X 1"
2	AH77020	1	Angle	(LH) STEERING COLUMN
3	21H1137	1	Screw	5/16" X 1-1/4"
3	14H785	1	Nut	5/16"
4	AH77025	1	Angle	(RH) STEERING COLUMN
5	AH77026	1	Support	(SUB AH93670 AND H81688)
6	21H1331	16	SCREW	5/16" X 1"
6	14H785	16	Nut	5/16"
7	H78809	1	Angle	(FRONT, RH)
8	14H785	6	Nut	5/16"
8	19H1900	6	Cap Screw	5/16" X 3/4"
9	H78808	1	Angle	CROSS, FRONT
10	19H1813	4	CAP SCREW	5/16" X 5/8"
10	14H785	4	Nut	5/16"
11	H83471	1	Sheet	(SUB FOR H79384)
11	H84579	1	Sheet	DECK, ENGINE
12	19H1936	1	Cap Screw	3/8" X 3/4"
12	14H812	1	NUT	3/8"
13	H76139	2	Screw	SELF-TAPPING
14	12H301	1	Lock Washer	1/2"
14	14H1040	1	Nut	1/2"
14	19H1792	1	Cap Screw	1/2" X 1"
15	21H1347	3	Screw	5/16" X 5/8"
15	14H785	3	Nut	5/16"
16	H78641	1	Strap	-
17	AH83612	1	Support	(SUB FOR AH77165)
17	AH85046	1	Support	OPERATOR'S PLATFORM AND ENGINE
18	12H301	3	Lock Washer	1/2"
18	14H1040	3	Nut	1/2"
18	19H1815	3	Cap Screw	1/2" X 1-1/4"
19	24H1788	2	WASHER	17/32" X 1-1/8" X 0.060"
20	H85056	1	Seal	-
21	AH81104	1	Cover	(SUB FOR H79379)
21	H82617	1	Sheet	(LH)
22	21H1304	1	Screw	5/16" X 3/4"
22	14H785	1	Nut	5/16"
23	H78827	1	Angle	(LH)

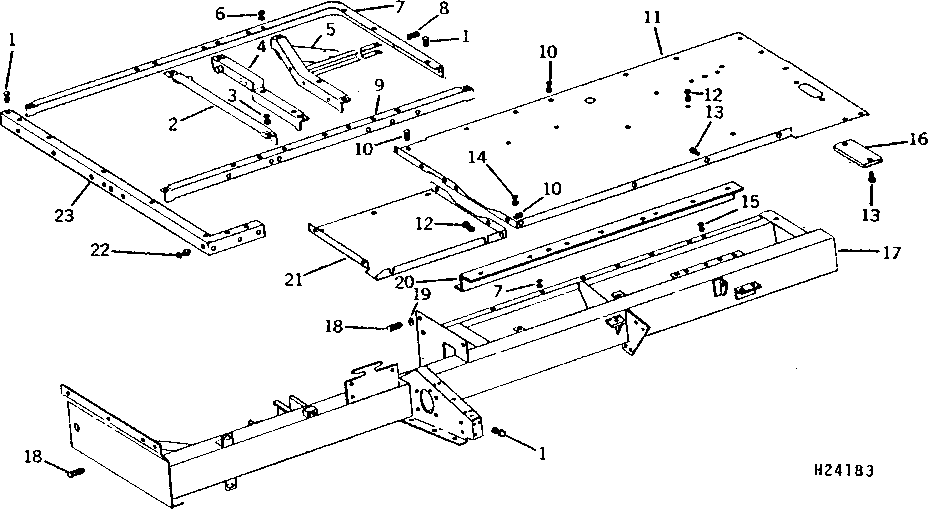

ENGINE AND OPERATOR'S PLATFORM ANGLES AND SUPPORTS (100000 - )
