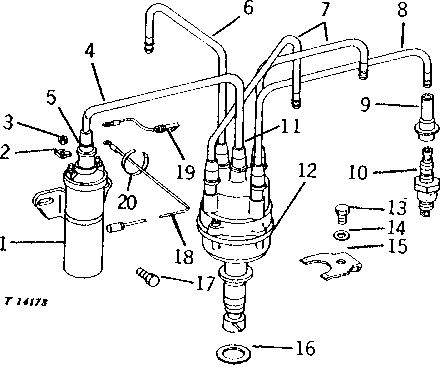

DISTRIBUTOR, COIL, SPARK PLUGS AND CABLES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT14383	1	Ignition	(SUB RE30365 AND RE30366), (PRESTOLITE NO. 200563), (PRESTOLITE DISTRIBUTOR MUST ALWAYS BE USED WHEN POWER UNIT IS EQUIPPED WITH PRESTOLITE IGNITION COIL)
2	12H246	2	LOCK WASHER	0.190"
3	14H631	2	Nut	0.190"
4	-	1	Part 4	229 MM (9"), (MAKE FROM R32006, (2) R32013, AND A3539R FROM AR30963 WIRE REPAIR KIT)
5	A4159R	1	BOOT	-
6	-	1	Part 6	203 MM (8"), NO.3 (MAKE FROM R32006, (2) R32012, AND (2) A3539R FROM AR30963 WIRE REPAIR KIT)
7	-	1	Part 7	292 MM (11-1/2"), NOS. 2 AND 4 (MAKE FROM R32006, (2) R32103, AND (2) A3539R FROM AR30963 WIRE REPAIR KIT)
8	-	1	Part 8	330 MM (13"), NO. 1 (MAKE FROM R32006, (2) R32013, AND (2) A3539R FROM AR30963 WIRE REPAIR KIT)
9	T20115	4	BOOT	-
10	TY21717	4	SPARK PLUG	(PRESTOLITE NO. 14G3) (HEAVY DUTY SERVICE) (SUB FOR AT21658 AND TY6066)
10	AT21343	4	SPARK PLUG	(CHAMPION NO. N-11Y) (MEDIUM DUTY SERVICE)
10	AT21177	4	SPARK PLUG	(CHAMPION NO. N-6) (HEAVY DUTY SERVICE)
11	A3539R	1	ELEC. CONNECTOR ACCESSORY	-
12	AT21351	1	IGNITION DISTRIBUTOR	(PRESTOLITE NO. IBT-4101U) (PRESTOLITE IGNITION COIL MUST BE USED WITH PRESTOLITE DISTRIBUTOR)
13	19H1905	1	Cap Screw	5/16" X 1"
14	12H303	1	Lock Washer	5/16"
15	T20113	1	CLAMP	-
16	T20112	1	GASKET	-
17	19H2020	2	Cap Screw	5/16" X 1/2"
18	AT23134	1	Wiring Lead	-
19	AT25512	1	Wiring Lead	-
20	H77698	3	Tie Band	(SUB FOR M66044)

DISTRIBUTOR, COIL, SPARK PLUGS AND CABLES

Нет текстового описания
