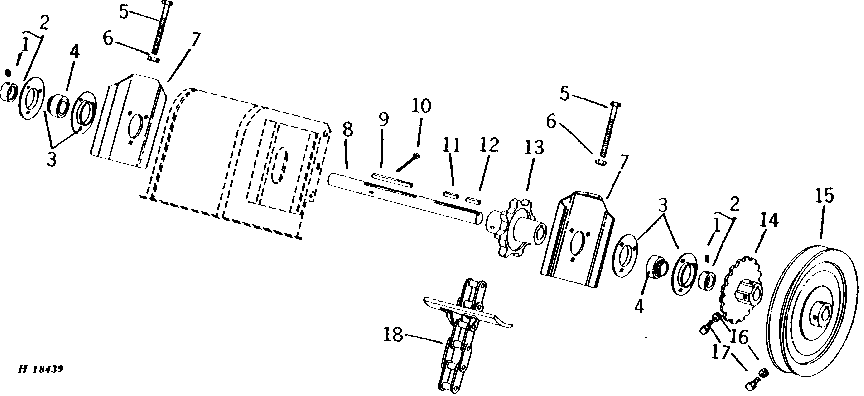

CLEAN GRAIN ELEVATOR CONVEYOR CHAIN, SHEAVE, AND SPROCKETS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H897	2	Set Screw	1/4" X 1/4"
2	JD8554	2	Eccentric Locking Collar	-
3	H103264	4	Pressed Flanged Housing	(SUB FOR P46463 AND H87472)
4	JD8665	2	Ball Bearing	(SUB FOR JD8555)
5	19H2462	2	Cap Screw	3/8" X 3-1/4"
6	14H732	2	Nut	3/8"
7	AH80508	2	Bracket	(SUB FOR AH78549)
8	H80704	1	Shaft	-
9	-	1	Part 9	8 MM X 8 MM X 57 MM (5/16" X 5/16" X 2-1/4"), (CUT FROM H64375 IN AH64587 KEY STOCK KIT)
10	11M7034	1	Cotter Pin	5 X 63 mm
11	-	1	Part 11	6 MM X 6 MM X 35 MM (1/4" X 1/4" X 1-3/8"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
12	-	1	Part 12	6 MM X 6 MM X 25 MM (1/4" X 1/4" X 1"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
13	H63577	1	Chain Sprocket	(SUB FOR H10353)
14	H77059	1	Chain Sprocket	Z=16
15	AH75987	1	Pulley	299 MM (11-3/4") DIA
16	14H732	4	Nut	3/8"
17	22H853	4	Set Screw	3/8" X 7/8"
18	AH87745	1	Link Chain	(CA-550 ROLLER CHAIN) (25 PADDLES), (SUB FOR AH76773)
18	AH76775	1	Link Chain	(CA-550 ROLLER CHAIN) (33 BUCKETS)
18	C10232	1	Link	ROLLER
18	AH137631	1	Chain Link	OFFSET (SUB FOR C10233)
18	AC11779	1	Pin Fastener	OFFSET LINK
18	AH137630	1	Chain Link	OFFSET (SUB FOR C10263)
18	AC14974	1	Pin Fastener	COUPLER LINK
18	H86759	25	Paddle	(RUBBER) (SUB FOR H33808)
18	H63576	33	Loader Bucket	-
18	H86761	1	Paddle	(STEEL CLEANING) (SUB FOR H81581)
18	AH87765	50	Chain Link	(SUB FOR AH21791)
18	P46115	50	Rivet	-
18	AH86897	50	Bolt	(PADDLE) (REPLACES RIVETS)
18	19H1948	1	Cap Screw	1/4" X 3/4", (STEEL CLEANING PADDLE, 2 USED; BUCKET, 66 USED)
18	24H1286	66	Washer	9/32" X 1/2" X 1/16", (BUCKET)
18	14H786	66	Nut	1/4", (BUCKET)

CLEAN GRAIN ELEVATOR CONVEYOR CHAIN, SHEAVE, AND SPROCKETS

Нет текстового описания
