AIR CONDITIONER COMPRESSOR MOUNTING AND SUPPORTS ( - 1973)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2060	1	Cap Screw	1/2" X 3", (DIESEL)
1	14H1040	1	Nut	1/2"
1	19H2805	1	Cap Screw	1/2" X 3-1/4", (GASOLINE)
2	08H4460	1	Cap Screw	1/2" X 7-1/2"
2	14H1040	1	Nut	1/2"
2	12H301	1	Lock Washer	1/2"
3	H80957	1	Strap	(GASOLINE)
3	H81743	1	Brace	(DIESEL)
4	19H1801	1	CAP SCREW	3/8" X 2", (GASOLINE)
4	19H1912	1	Cap Screw	3/8" X 3-1/2", (DIESEL)
5	24H1111	1	Washer	17/32" X 1-1/16" X 0.090", (1 USED, DIESEL; 3 USED, GASOLINE)
6	19H1792	2	Cap Screw	1/2" X 1", (GASOLINE)
6	12H301	2	Lock Washer	1/2"
7	H80958	1	Brace	(GASOLINE)
8	AH80301	1	Bracket	(DIESEL)
8	AH87827	1	Plate	-
8	H83403	1	Plate	-
8	AH79258	1	Bracket	(GASOLINE)
9	H80963	1	Brace	(GASOLINE)
10	14H1040	2	Nut	1/2", (GASOLINE)
10	12H301	2	Lock Washer	1/2"
11	24H1305	4	Washer	13/32" X 13/16" X 0.065"
12	19H1731	4	Cap Screw	3/8" X 1"
13	AH79259	1	Support	(GASOLINE)
13	AH80250	1	Support	(DIESEL)
14	H33456	2	Washer	(DIESEL)
15	24H1211	1	Washer	9/16" X 1-3/8" X 0.105", (DIESEL)
16	28H1885	2	Bushing	0.824" X 1.050" X 1/2"
16	P45513	2	Bushing	-
17	19H1890	2	Cap Screw	5/8" X 2-3/4"
17	12H294	2	Lock Washer	5/8"

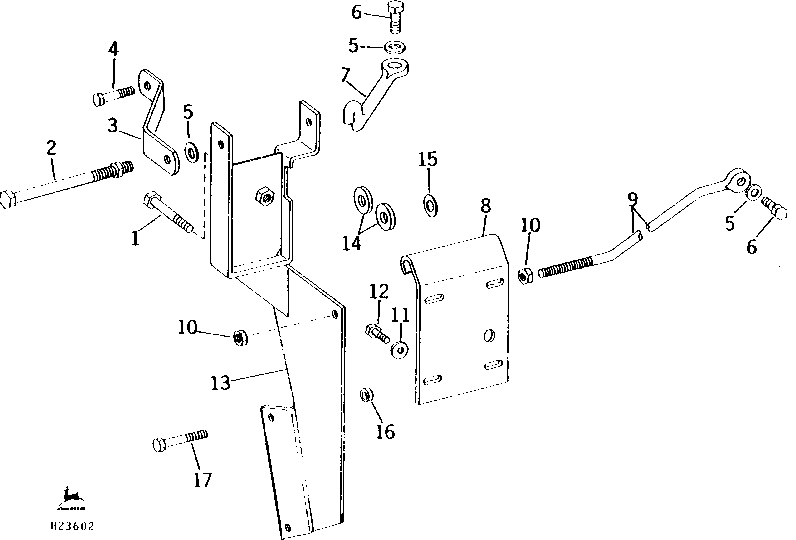

AIR CONDITIONER COMPRESSOR MOUNTING AND SUPPORTS ( - 1973)
