Dual Battery Disconnect and Jump Start Kit ( - 406005)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT437905	1	Battery Kit	WHOLE GOODS
2	AT430384	1	Battery Cable	Battery Single Positive With Disconnect
3	57M11551	1	Elec. Connector Terminal	Battery Disconnect Switch 1, S2-01
4	T395592	1	Boot	-
5	57M11549	1	Elec. Connector Terminal	Battery 1, G1-01
6	T107117	1	Cover	Terminal Cover
7	T31161	1	Stud	-
8	14H785	1	Nut	5/16"
9	AT424523	1	Battery Cable	Switch to Starter
10	57M11551	1	Elec. Connector Terminal	Battery Disconnect Switch 1, S2-01
11	T395593	1	Boot	-
12	57M11280	1	Elec. Connector Terminal	Main Fuse 1, F1-01
13	57M11550	1	Elec. Connector Terminal	Starter Motor 30, M1-02
14	T395592	1	Boot	-
15	AT41188	1	Switch	Battery Disconnect
16	T268456	1	Label	Battery Disconnect
17	AT113412	1	Elec. Connector Terminal	-
18	AT424522	1	Battery Cable	Battery Dual Positive With Disconnect
19	T107117	1	Cover	Terminal Cover
20	57M11549	1	Elec. Connector Terminal	Battery 1, G1-01
21	57M11551	1	Elec. Connector Terminal	Battery Disconnect Switch 2, S2-02
22	14H785	2	Nut	5/16"
23	T31161	2	Stud	-
24	T395592	1	Boot	-
25	T145966	1	Cover	Terminal Cover
26	14M7296	1	Flange Nut	M10
27	T354696	1	Conductor	-
28	T129165	1	Boot	-
29	AT446417	1	Cover	Jump Start Cover
30	N370375	1	Grommet	-
31	AT447142	1	Plate	-
32	AT504455	1	Bracket	Battery Disconnect
33	24M7238	2	Washer	8.700 X 17 X 2 mm
34	19M7881	2	Screw	M8 X 20
35	H77698	2	Tie Band	-

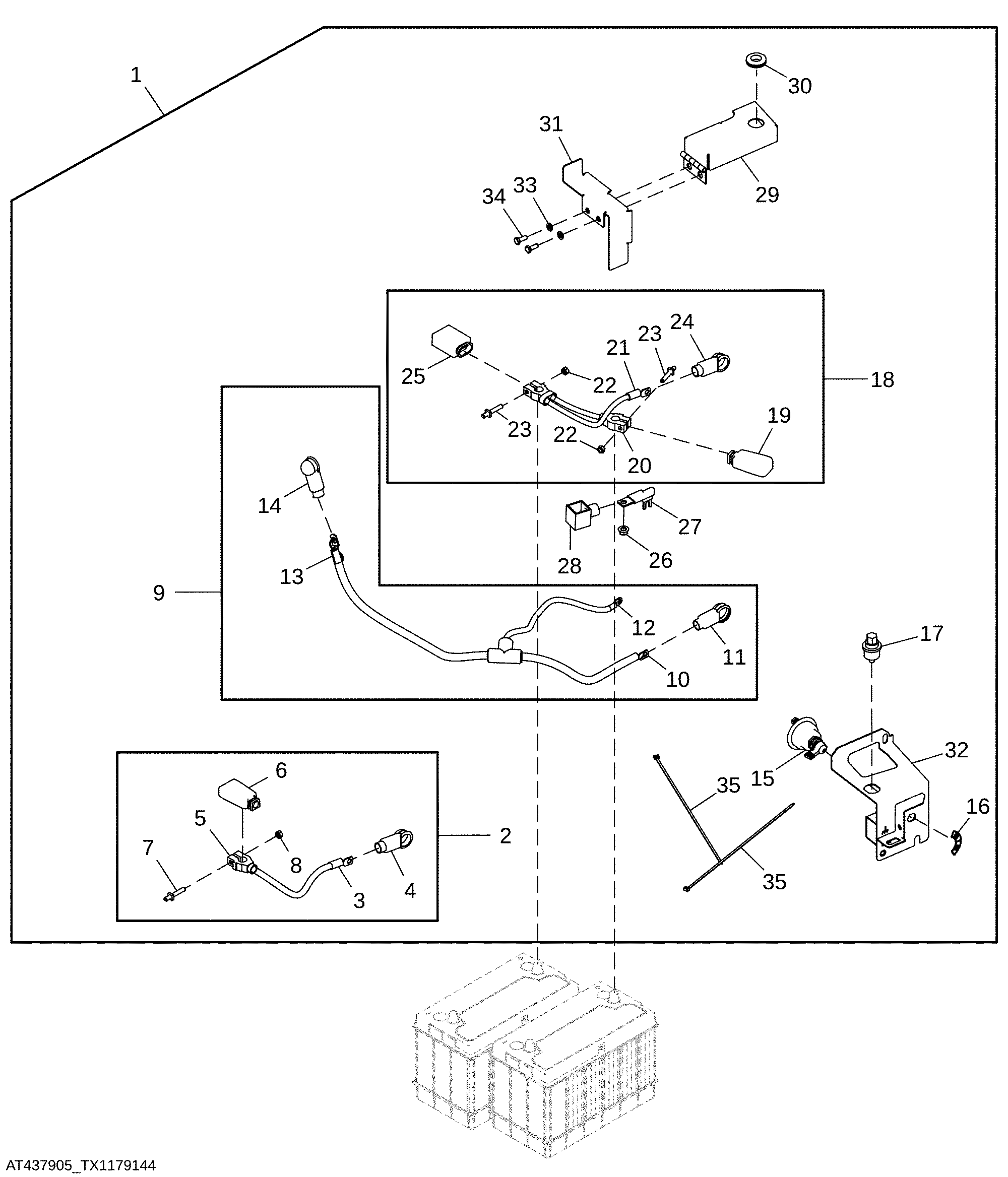

Dual Battery Disconnect and Jump Start Kit ( - 406005)
