Pilot Controller Valves and Joysticks (303524 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT462975	2	Universal Joint	Not Illustrated
1	AT462976	4	Seal Kit	Not Illustrated
1	AT451754	2	Hydr./Pilot Control Valve	Components Listed On Separate Page
2	19M7796	8	Screw	M6 X 30
3	H77698	4	Tie Band	-
4	AT531224	1	Grip	LH, SUB FOR AT458593, INCLUDES T368072
4	AT451407	1	Plug	Grip Plug Kit
4	21M7663	2	Screw	M4 X 25
4	14M7746	2	Lock Nut	M4
5	T368072	1	Shaft	-
6	T373478	1	Grommet	-
7	57M9940	1	Elec. Connector Accessory	-
8	57M8739	1	Elec. Connector Housing	-
9	T368061	1	Boot	-
10	14M7156	1	Nut	M14
11	AT458594	1	Grip	RH, ORDER AT504174, INCLUDES T368073
11	14M7746	2	Lock Nut	M4
11	21M7663	2	Screw	M4 X 25
11	AT451407	1	Plug	Grip Plug Kit
11	AT504174	1	Grip	RH, ORDER AT531220; INCLUDES T368073
12	T368073	1	Shaft	-
13	T373478	1	Grommet	-
14	57M9940	1	Elec. Connector Accessory	-
15	57M8739	1	Elec. Connector Housing	-
16	T368061	1	Boot	-
17	14M7156	1	Nut	M14
18	T209627	2	Clamp	-
19	57M8264	1	Elec. Connector Terminal	Not Illustrated
20	57M7629	1	Elec. Connector Housing	Not Illustrated
21	57M7678	1	Elec. Connector Terminal	Wedge Lock Not Illustrated

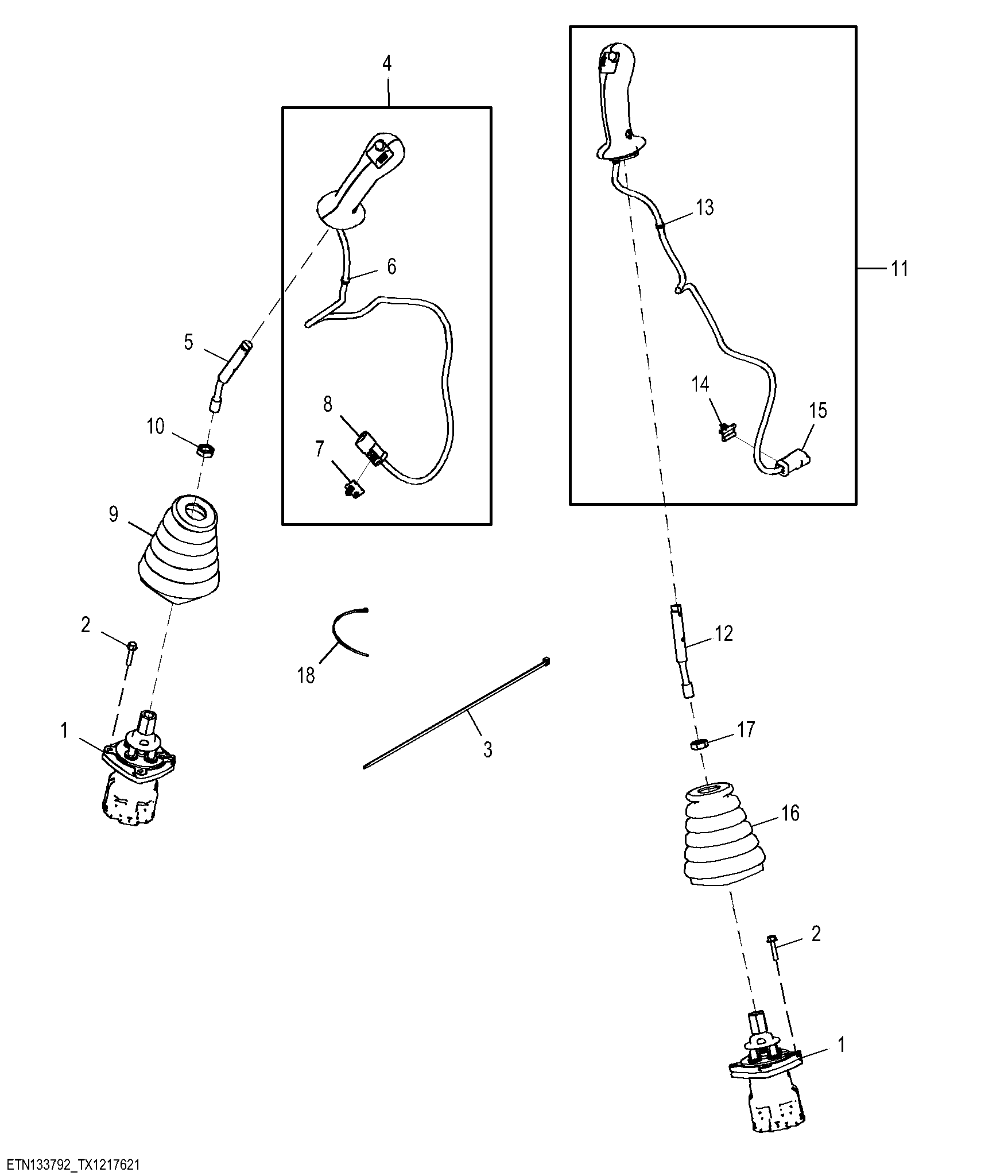

Pilot Controller Valves and Joysticks (303524 - )

Нет текстового описания
