Открытый узел

Bucket, Extension, and Auxiliary Hydraulics, Extendable Dipperstick

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT369645	1	Hydraulic Hose	Auxiliary Return
2	AT366769	1	Hydraulic Hose	Auxiliary Pressure
3	03M7192	4	Bolt	M10 X 30
4	24M7239	22	Washer	10.700 X 21 X 2.500 mm
5	AT308466	1	Hydraulic Hose	Auxiliary Return
6	AT308466	1	Hydraulic Hose	Auxiliary Pressure
7	T160376	8	Clamp	-
8	AT434826	1	Oil Line	Auxiliary Return, SUB FOR AT325066
9	AT434827	1	Oil Line	Auxiliary Pressure, SUB FOR AT325067
10	T205636	1	Bracket	-
11	T205637	1	Bracket	-
12	14M7274	14	Nut	M10
13	T162004	16	Clamp	-
14	19M7873	8	Screw	M8 X 110
15	19M7662	6	Cap Screw	M10 X 30
16	19M7572	2	Cap Screw	M10 X 45
17	T161365	1	Sleeve	-
18	T161365	1	Sleeve	-
19	T162005	4	Strap	-
20	H77698	4	Tie Band	-
21	T163702	2	Reducer	-
22	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
23	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
24	R27175	2	Drain Plug	-
25	T102934	2	Clamp	-
26	T78707	2	Nut	-
27	AT280347	1	Hydraulic Hose	Auxiliary Pressure Fabricate
28	AT280347	1	Hydraulic Hose	Auxiliary Return Fabricate
29	38H1286	2	Adapter Fitting	-
30	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
31	T80306	3	Nut	-
32	38H1329	1	Adapter Fitting	-
33	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
34	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
35	38H1531	1	Tee Fitting	-
36	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
37	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
38	H224073	2	Tie Band	-
39	AT280347	1	Hydraulic Hose	Bucket Head End Fabricate
40	AT280346	1	Hydraulic Hose	Bucket Rod End Fabricate
41	AT280346	1	Hydraulic Hose	Extension Cylinder Head End Fabricate
42	AT280346	1	Hydraulic Hose	Extension Cylinder Rod End Fabricate
43	AT178413	1	Hydraulic Hose	Extension Cylinder Head End
44	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
45	AT178413	1	Hydraulic Hose	Extension Cylinder Rod End
46	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
47	AT179238	1	Hydraulic Hose	Extension Cylinder Head End
48	AT179238	1	Hydraulic Hose	Extension Cylinder Rod End
49	AT170172	1	Hydraulic Hose	Bucket Rod End Fabricate
50	AT170173	1	Hydraulic Hose	Bucket Head End
51	AT325061	1	Tube	-
52	AT325062	1	Oil Line	-
53	AT327155	1	Hose Support	-
54	C16054	1	Clamp	-
55	R46919	4	Half Clamp	-
56	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
57	T165889	4	Screw	-
58	AT325063	1	Oil Line	Extension Cylinder Head End
59	AT325064	1	Oil Line	Extension Cylinder Rod End
60	T159954	1	Clamp	-
61	T160554	1	Clamp	-
62	38H1162	1	Adapter Fitting	-
63	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
64	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
65	T105773	1	Guide	-
66	14M7426	4	Lock Nut	M8
67	19M8637	2	Cap Screw	M10 X 40
68	38H1275	3	Adapter Fitting	-
69	T77857	6	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
70	T78716	3	Nut	-
71	38H1174	3	Adapter Fitting	-
72	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
73	R26906	3	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
74	38H1214	1	Adapter Fitting	-
75	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
76	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
77	AT366587	1	Hydraulic Hose	Extension Cylinder Rod End
78	AT366588	1	Hydraulic Hose	Extension Cylinder Head End
79	AT369649	1	Hydraulic Hose	Bucket Rod End
80	AT369646	1	Hydraulic Hose	Bucket Head End

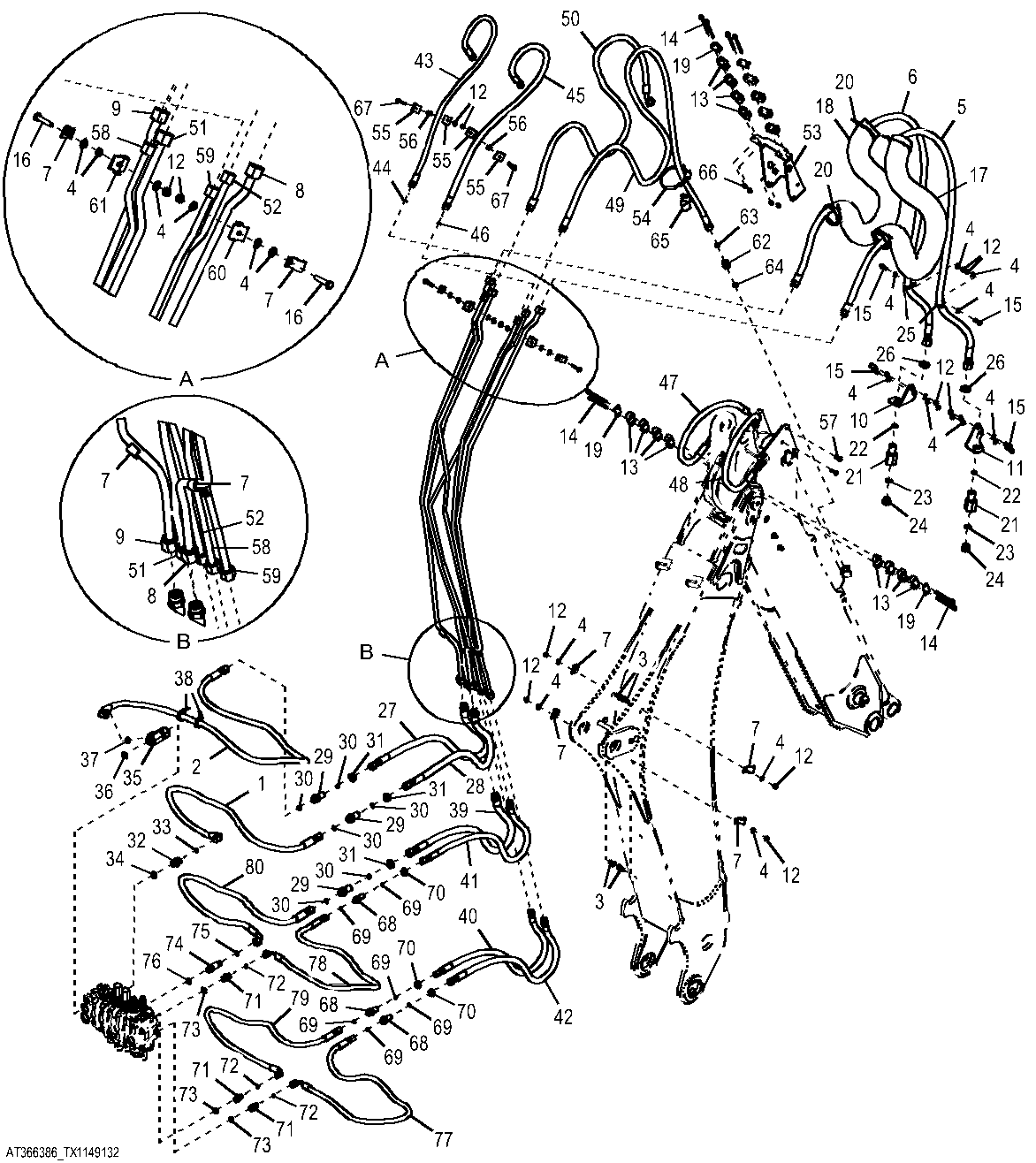

Bucket, Extension, and Auxiliary Hydraulics, Extendable Dipperstick
