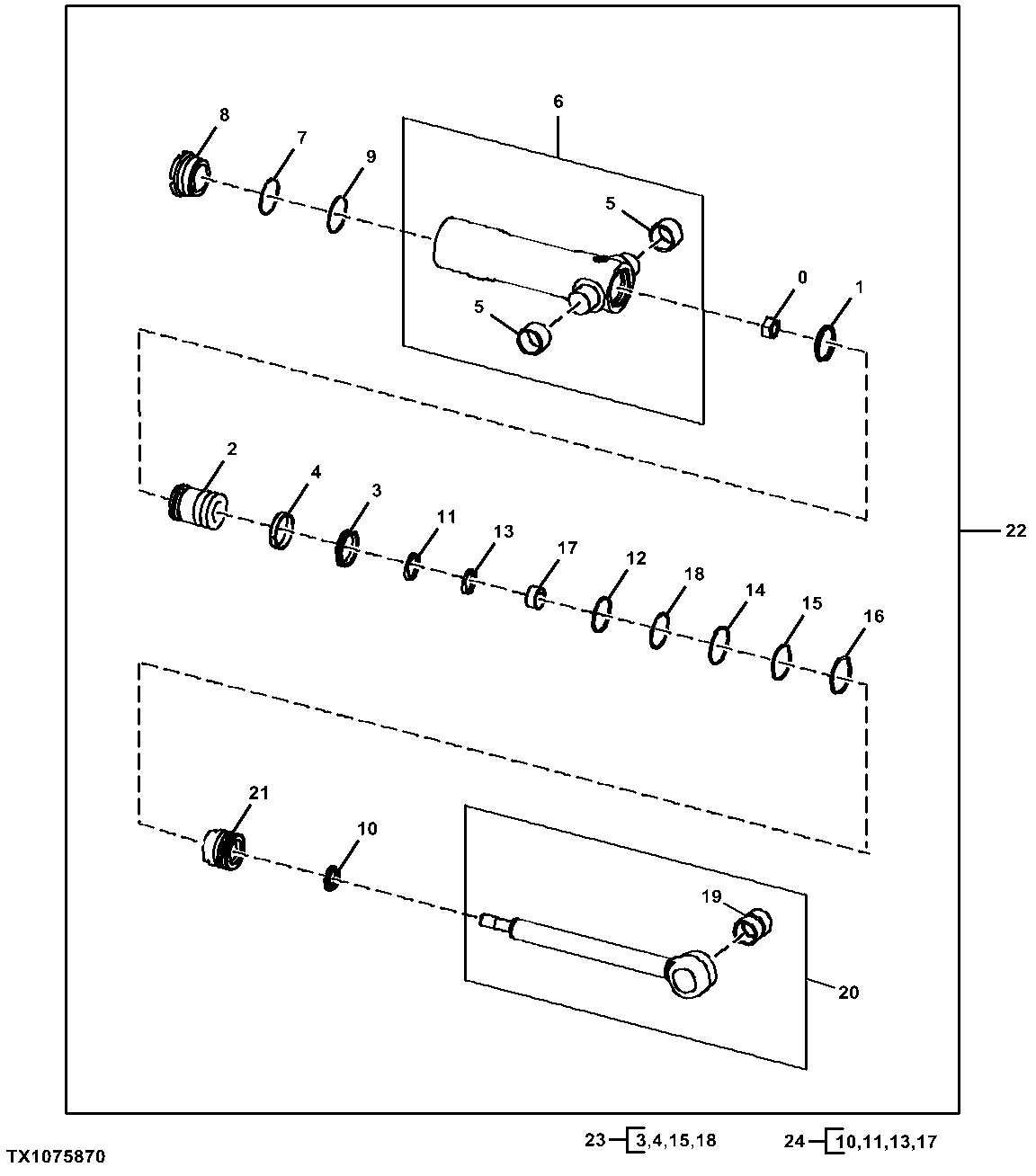

Swing Cylinder and Repair Kit ( - 203179)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	H170539	1	Nut	M30
1	H150947	1	Piston Ring	-
2	H154372	1	Piston	-
3	RE20344	1	Seal	-
4	R81776	1	Wear Ring	-
5	H151328	2	Bushing	-
6	AH220114	1	Hydraulic Cylinder Barrel	Components On Separate Page Swing Cylinder, NLA, ORDER AHC18280 ALSO ORDER 38H5111, (2) 51M7043, 38H5017, AND (3) T77857
7	H154373	1	Back-Up Ring	-
8	H156486	1	Hydraulic Cylinder Cap	-
9	P48403	1	O-Ring	85.319 X 3.531 mm (3-23/64" X 0.139")
10	AH146557	1	Seal	-
11	AH146561	1	Seal	-
12	F1430R	1	O-Ring	78.740 X 5.334 mm (3.100" X 0.210")
13	H152203	1	Seal	-
14	H180103	1	Snap Ring	-
15	H181114	1	O-Ring	82.144 X 3.531 mm (3-15/64" X 0.139")
16	H206859	1	Snap Ring	-
17	H208987	1	Wear Ring	-
18	R79101	1	Back-Up Ring	-
19	H180402	1	Bushing	-
20	AH147893	1	Hydraulic Cylinder Rod	-
21	H208631	1	Hydr. Cylinder Rod Guide	-
22	AH220108	1	Hydraulic Cylinder	Components On Separate Page Swing Cylinder, NLA, ORDER AHC18280 ALSO ORDER 38H5111, (2) 51M7043, 38H5017, AND (3) T77857
22	AHC11321	1	Hydraulic Cylinder	Components On Separate Page Swing Cylinder, NLA, ORDER AHC18280 ALSO ORDER 38H5111, (2) 51M7043, 38H5017, AND (3) T77857
22	AHC18280	1	Hydraulic Cylinder	Components On Separate Page Swing Cylinder
23	AH212096	1	Hydraulic Cylinder Kit	Bore
24	AHC16954	1	Hydraulic Cylinder Kit	Rod, SUB FOR AHC11573

Swing Cylinder and Repair Kit ( - 203179)
