Открытый узел

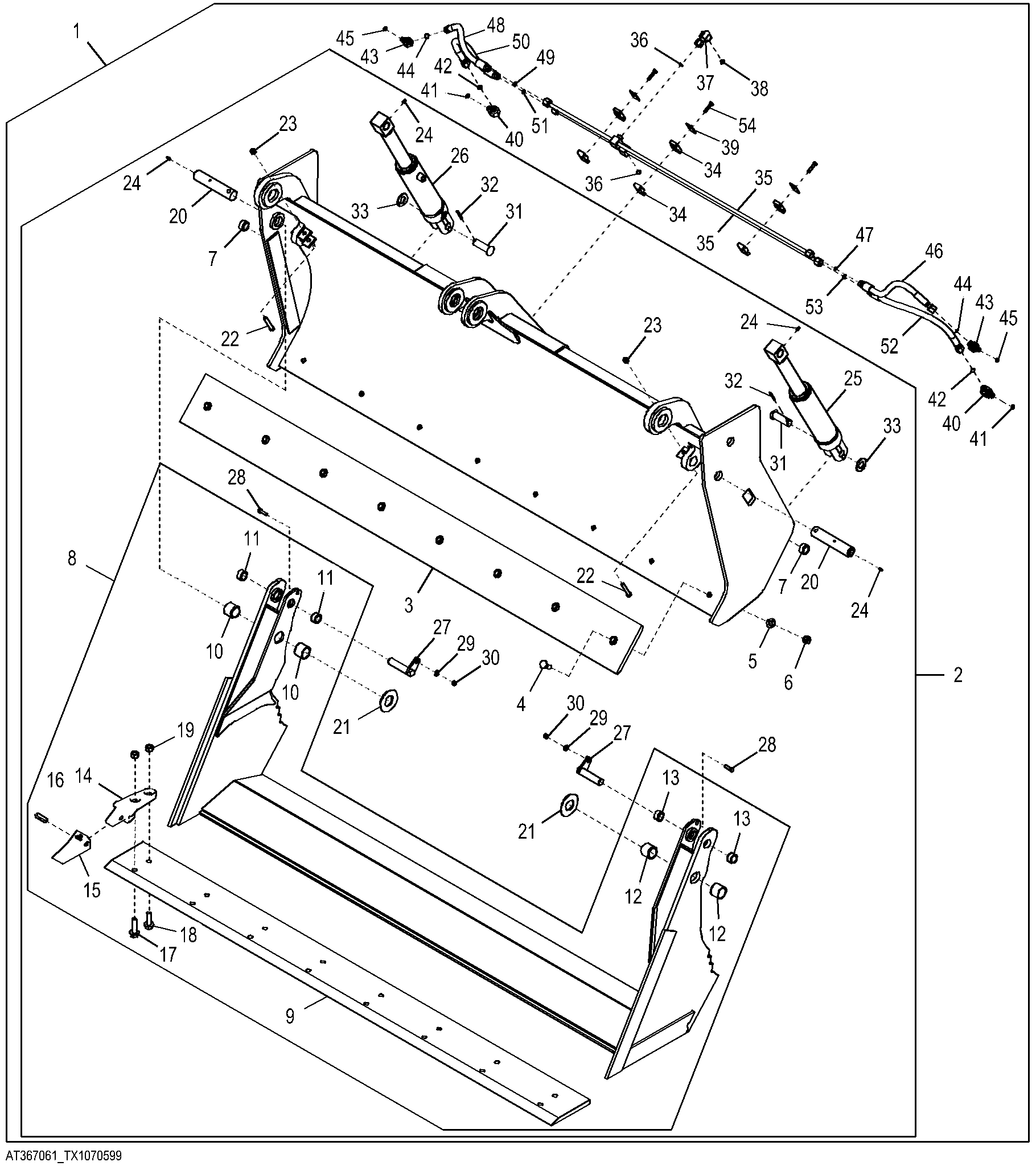

Multipurpose Flip Fork Ready Bucket with Teeth, 2.34 m³

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT367061	1	Multi-Purpose Bucket	Components On Separate Page, NLA; ORDER AT448181
2	AT364268	1	Loader Bucket	-
3	T143802	1	Cutting Edge	229.23 cm (90.248 in.)
4	09H1776	8	Bolt	5/8" X 1-3/4"
5	24M7241	8	Washer	17 X 34 X 4 mm
6	14H1039	8	Nut	5/8"
7	T166433	1	Bushing	-
8	AT366235	1	Hinge	-
9	T128538	1	Cutting Edge	234.95 cm (92.500 in.)
10	T128533	2	Bushing	-
11	T166433	2	Bushing	-
12	T128533	2	Bushing	-
13	T166433	2	Bushing	-
14	T221X230	8	Bucket Tooth Adapter	-
15	T230SP	8	Tooth	-
16	T23P	8	Pin	-
17	19M7824	8	Screw	M16 X 60
18	19M7794	8	Screw	M16 X 50
19	14M7276	16	Nut	M16
20	T167059	2	Pin	-
21	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
22	19H2106	2	Cap Screw	7/16" X 2-3/4"
23	K40006	2	Lock Nut	-
24	JD7844	4	Lubrication Fitting	-
25	AH210737	1	Hydraulic Cylinder	Components On Separate Page
26	AH210737	1	Hydraulic Cylinder	Components On Separate Page
27	AT190900	2	Pin	-
28	19H1732	2	Cap Screw	3/8" X 1-1/4"
29	24M7239	2	Washer	10.700 X 21 X 2.500 mm
30	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
31	T191318	2	Pin Fastener	-
32	11H218	2	Cotter Pin	3/16" X 1-1/2"
33	24H1138	2	Washer	1-1/16" X 2" X 0.134"
34	H135156	6	Clamp	-
35	AT189819	2	Line	Oil, NLA; ORDER AT448019
35	AT448019	2	Line	Oil
36	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
37	38H1095	1	Elbow Fitting	-
38	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
39	H121168	3	Plate	-
40	38H1314	1	Elbow Fitting	-
41	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
42	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
43	38H1521	1	Elbow Fitting	-
44	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
45	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
46	AT189822	1	Hydraulic Hose	Fabricate
47	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
48	AT189822	1	Hydraulic Hose	Fabricate
49	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
50	AT190701	1	Hydraulic Hose	Fabricate
51	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
52	AT190701	1	Hydraulic Hose	Fabricate
53	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
54	19H1906	3	Cap Screw	5/16" X 1-1/2"

Multipurpose Flip Fork Ready Bucket with Teeth, 2.34 m³

Нет текстового описания
