Extension Cylinder Hydraulics (Extendable Dipperstick) (Bucket)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	4	Nut	M10
2	14M7426	6	Lock Nut	M8
3	19M7185	8	Cap Screw	M8 X 60
4	19M7550	4	Cap Screw	M10 X 35
5	19M7932	2	Cap Screw	M8 X 16
6	19M7935	1	Cap Screw	M10 X 55
7	19M8637	2	Cap Screw	M10 X 40
8	24M7238	1	Washer	8.700 X 17 X 2 mm
9	24M7239	3	Washer	10.700 X 21 X 2.500 mm
10	24M7396	4	Washer	21 X 34 X 3 mm
11	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
12	38H1005	1	Elbow Fitting	-
13	R26375	1	O-Ring	-
14	T77857	16	O-Ring	-
15	38H1006	1	Elbow Fitting	-
16	R26906	6	O-Ring	-
17	T77932	11	O-Ring	-
18	38H1162	3	Adapter Fitting	-
19	38H1174	3	Adapter Fitting	-
20	38H1214	1	Adapter Fitting	-
21	38H1275	3	Adapter Fitting	-
22	38H1286	1	Adapter Fitting	-
23	AR21841	1	Clamp	-
24	AT170172	1	Hydraulic Hose	RH Rod End Fabricate
25	AT170173	1	Hydraulic Hose	LH Head End
26	T77858	2	O-Ring	Not Illustrated
27	AT172255	1	Hydraulic Hose	-
28	R26448	1	O-Ring	Not Illustrated
29	AT172256	1	Hydraulic Hose	-
30	AT178413	2	Hydraulic Hose	-
31	AT179238	2	Hydraulic Hose	-
32	AT280346	3	Hydraulic Hose	Fabricate
33	AT280347	1	Hydraulic Hose	Fabricate
34	AT325061	1	Tube	-
35	AT325062	1	Oil Line	-
36	AT325063	1	Oil Line	-
37	AT325064	1	Oil Line	-
38	AT327155	1	Hose Support	-
39	AT366587	1	Hydraulic Hose	-
40	AT366588	1	Hydraulic Hose	-
41	AT369646	1	Hydraulic Hose	-
42	AT369649	1	Hydraulic Hose	-
43	C16054	1	Clamp	-
44	M86877	1	Bolt	-
45	R46919	6	Half Clamp	-
46	T105773	1	Guide	-
47	T105774	1	Guide	-
48	T126052	1	Spacer	-
49	T159954	1	Clamp	-
50	T160554	1	Clamp	-
51	T161342	2	Plate	-
52	T162004	8	Clamp	-
53	T162005	4	Strap	-
54	T165889	4	Screw	-
55	T202050	2	Angle	-
56	T24959	1	Clamp	-
57	T29342	1	Washer	-
58	T78716	5	Nut	-
59	T80306	1	Nut	-

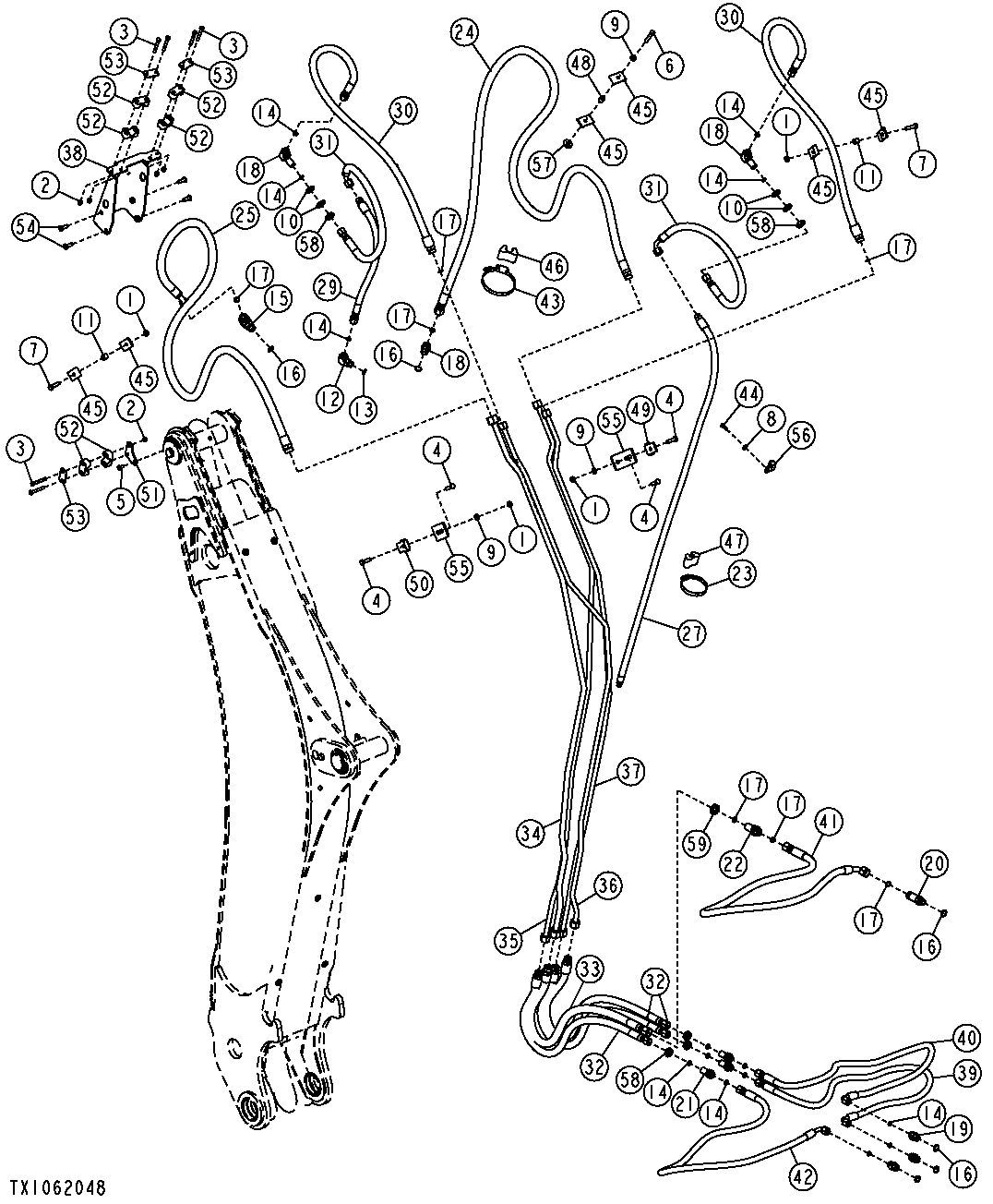

Extension Cylinder Hydraulics (Extendable Dipperstick) (Bucket)
