Открытый узел

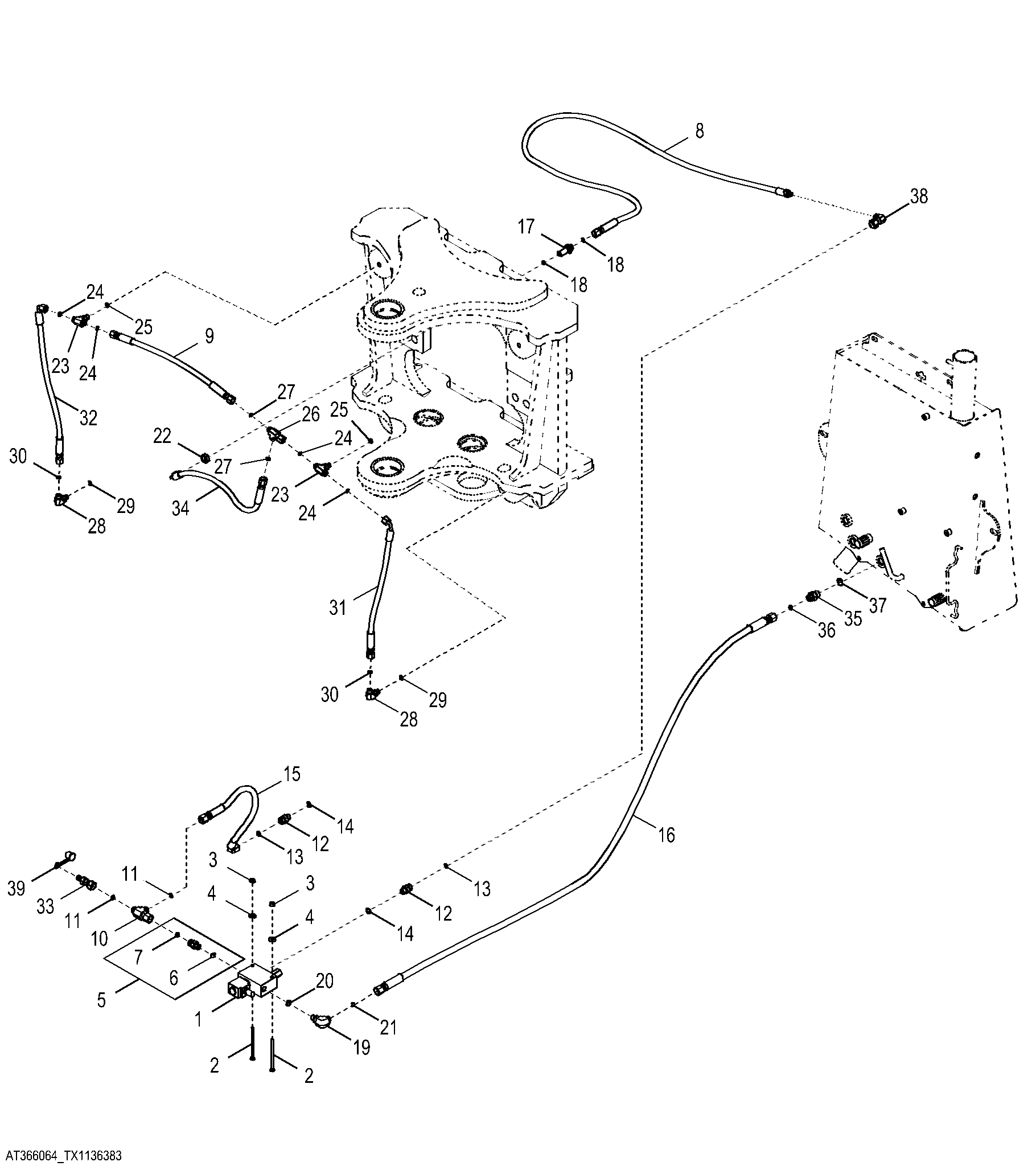

Backhoe Slideshift Lock Hydraulics ( - 234969)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT139973	1	Solenoid Valve	-
1	AT183556	1	Solenoid Hydraulic Valve	-
1	T101763	2	Shim	-
1	R28776	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
1	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
1	AT183592	1	Pressure Relief Valve	5000 psi
1	T101764	4	Back-Up Ring	-
1	R33259	2	O-Ring	13.995 X 1.778 mm (0.551" X 0.070")
1	R28776	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
1	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
1	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
1	P50883	2	Ring	17.170 X 1.778 mm (0.676" X 0.070")
1	T101763	4	Shim	-
2	19M9090	2	Cap Screw	M6 X 100
3	14M7303	2	Flange Nut	M6
4	24M7139	2	Washer	6.400 X 18 X 1.600 mm
5	AT81867	1	Check Valve	-
6	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	AT366088	1	Hydraulic Hose	-
9	AT368358	1	Hydraulic Hose	-
10	38H1030	1	Tee Fitting	-
11	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	38H1160	2	Adapter Fitting	-
13	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
14	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
15	AT378741	1	Hydraulic Hose	-
16	AT366178	1	Hydraulic Hose	-
17	38H1284	1	Adapter Fitting	-
18	T77814	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
19	38H1004	1	Elbow Fitting	-
20	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
21	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
22	14H832	1	Nut	9/16"
23	38H1015	2	Tee Fitting	-
24	T77814	4	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
25	R28782	2	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
26	38H1029	1	Tee Fitting	-
27	T77814	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
28	38H1003	2	Elbow Fitting	-
29	R28782	2	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
30	T77814	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
31	AT365785	1	Hydraulic Hose	-
32	AT365785	1	Hydraulic Hose	-
33	RE60701	1	Diagnostic Coupling	-
34	AT365784	1	Hydraulic Hose	-
35	38H1171	1	Adapter Fitting	-
36	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
37	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
38	62H1021	1	Adapter Fitting	SUB FOR AT195201
38	AT193365	1	Seal Kit	-06, STC Repair Kit
39	R77175	1	Cover	-

Backhoe Slideshift Lock Hydraulics ( - 234969)

Нет текстового описания
