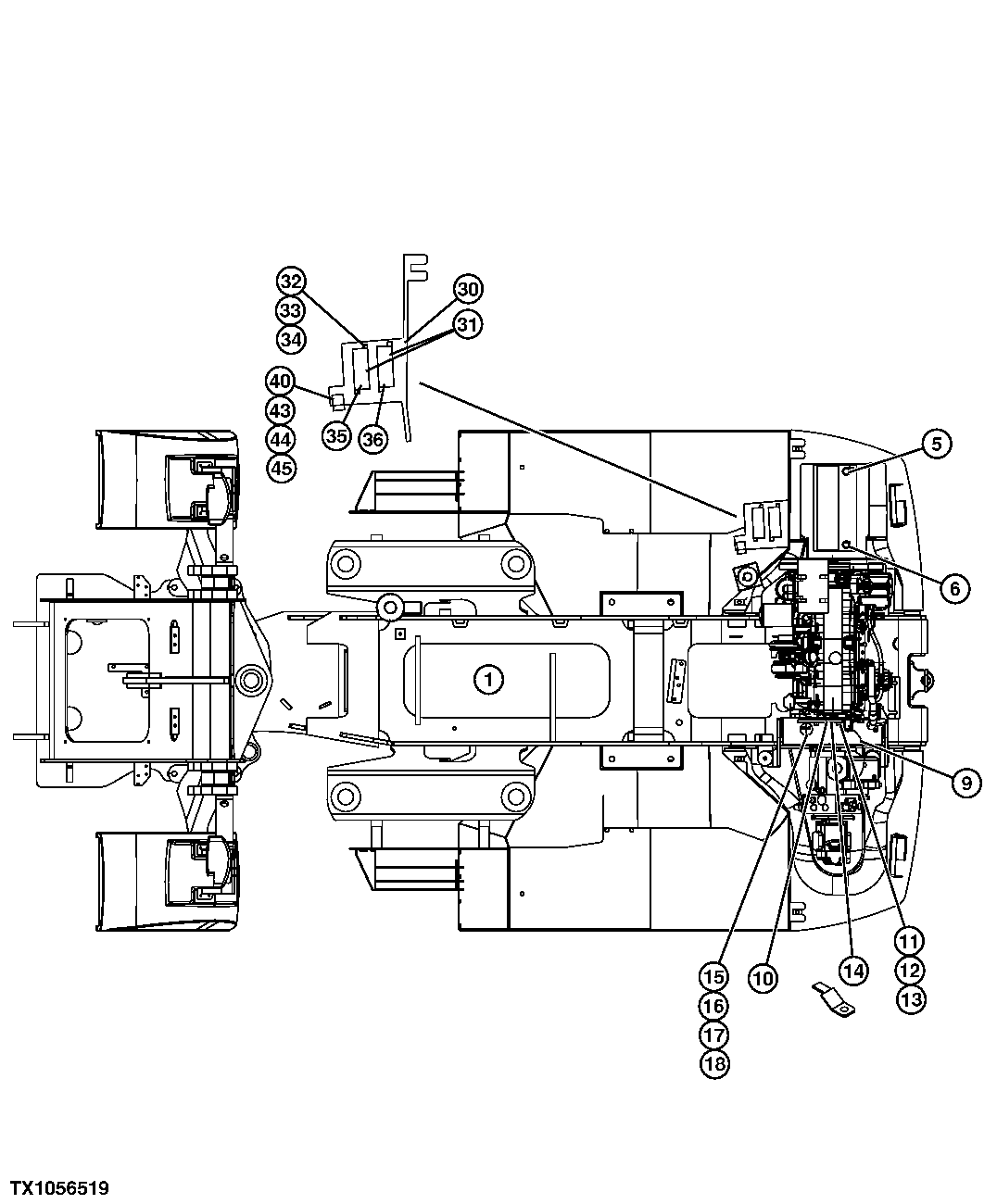

Wire Harness, Fuses and Battery Mounting

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW93018057	1	Wiring Harness	-
1	LW93020549	1	Wiring Harness	Machines Equipped with A/C Also Order AT314541, ALSO ORDER AT320265 AND AT320277
1	AT320265	1	Wiring Harness	Ride Control
1	AT320277	1	Wiring Harness	4th Fuction Control
1	AT314541	1	Wiring Harness	Air Conditioning
1	LW8929015	1	Resistor	Throttle Resistor
1	LW93012890	1	Wiring Harness	Components On Separate Page
5	AT250431	1	Electrical Connector Assy	-
6	AT250432	1	Electrical Connector Assy	-
9	LW774383508	1	Conduit	-
10	AT310295	1	Clamp	-
11	19M7872	2	Cap Screw	M12 X 25
12	24M7429	2	Washer	13 X 24 X 2.500 mm
13	12H301	2	Lock Washer	1/2"
14	AT196437	2	Clamp	-
15	LW11000557	1	Relay	Glow Plug Relay
16	19M7372	2	Cap Screw	M5 X 16
17	24M7027	4	Washer	5.300 X 10 X 1 mm
18	LW4001866	2	Nut	-
30	AT310297	1	Fuse Holder	-
31	AT218593	2	Fuse Holder	Single Fuse
32	M114063	4	Screw	M6 X 16
33	24M7088	4	Washer	6.600 X 12 X 1.600 mm
34	14M7528	4	Lock Nut	M6
35	AT250373	1	Fuse	-
36	57M7960	1	Fuse	-
40	LW6905892	1	Holder	-
40	T206744	1	Fuse Holder	Fuse Holder for F07 and F010 Fuses
43	AT312246	2	Screw	-
44	14M7139	2	Nut	M4
45	57M7121	2	Fuse	-

Wire Harness, Fuses and Battery Mounting
