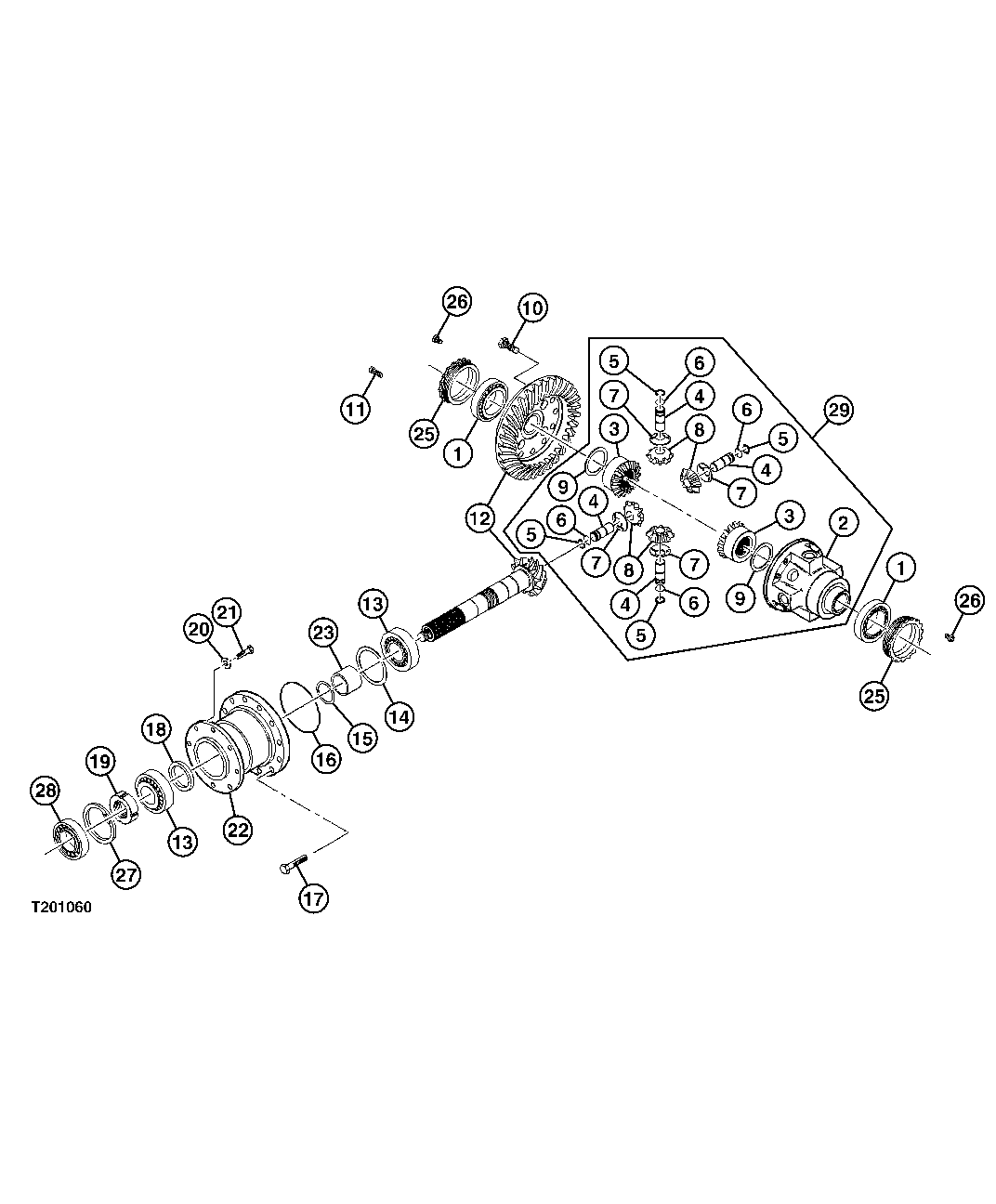

Rear Axle Differential Assembly, Ring and Pinion

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW12222999	2	Tapered Roller Bearing	-
1	LW11824374	2	Tapered Roller Bearing	ORDER LW12222999; SUB FOR AT313857 AND AT313864
2	AT313858	1	Differential	-
3	AT313819	2	Bevel Gear	-
4	AT335538	4	Pinion Shaft	SUB FOR AT334635
5	AT313862	4	Snap Ring	-
6	AT313861	4	Back-Up Ring	-
7	AT313859	4	Thrust Washer	-
8	AT337804	4	Gear	SUB FOR AT313820; USE WITH AT335538
9	AT313818	2	Thrust Washer	-
10	19M9362	12	Bolt	M12 X 35
11	19M7169	4	Cap Screw	M10 X 35
12	AT313856	1	Bevel Gear Drive	-
13	AT313866	2	Tapered Roller Bearing	-
14	AT313830	1	Shim	TK = 1 mm
14	AT313824	1	Shim	TK = 1.5 mm
14	-	1	Part 15	TK = 2 mm, AT313822 NLA
14	-	1	Part 16	TK = 3 mm, AT313823 NLA
15	AT313816	1	Shim	TK = 1.5 mm, SUB FOR AT313831 OR AT320296
15	AT313833	1	Shim	TK = 2 mm
15	AT313832	1	Shim	TK = 4 mm
15	AT313829	1	Shim	TK = 0.50 mm
16	AT313843	1	O-Ring	-
17	19M7285	12	Cap Screw	M12 X 30
18	AT313115	1	Seal	-
19	AT313964	1	Nut	-
20	12M7066	8	Lock Washer	10 mm
21	19M7169	8	Cap Screw	M10 X 35
22	AT313965	1	Housing	-
23	AT313876	1	Spacer	-
25	AT313896	2	Nut	-
26	LW10476470	2	Screw	SUB FOR AT313966
27	40M1873	1	Snap Ring	-
28	AT313240	1	Bearing	-
29	AT313967	1	Differential	-

Rear Axle Differential Assembly, Ring and Pinion
