Открытый узел

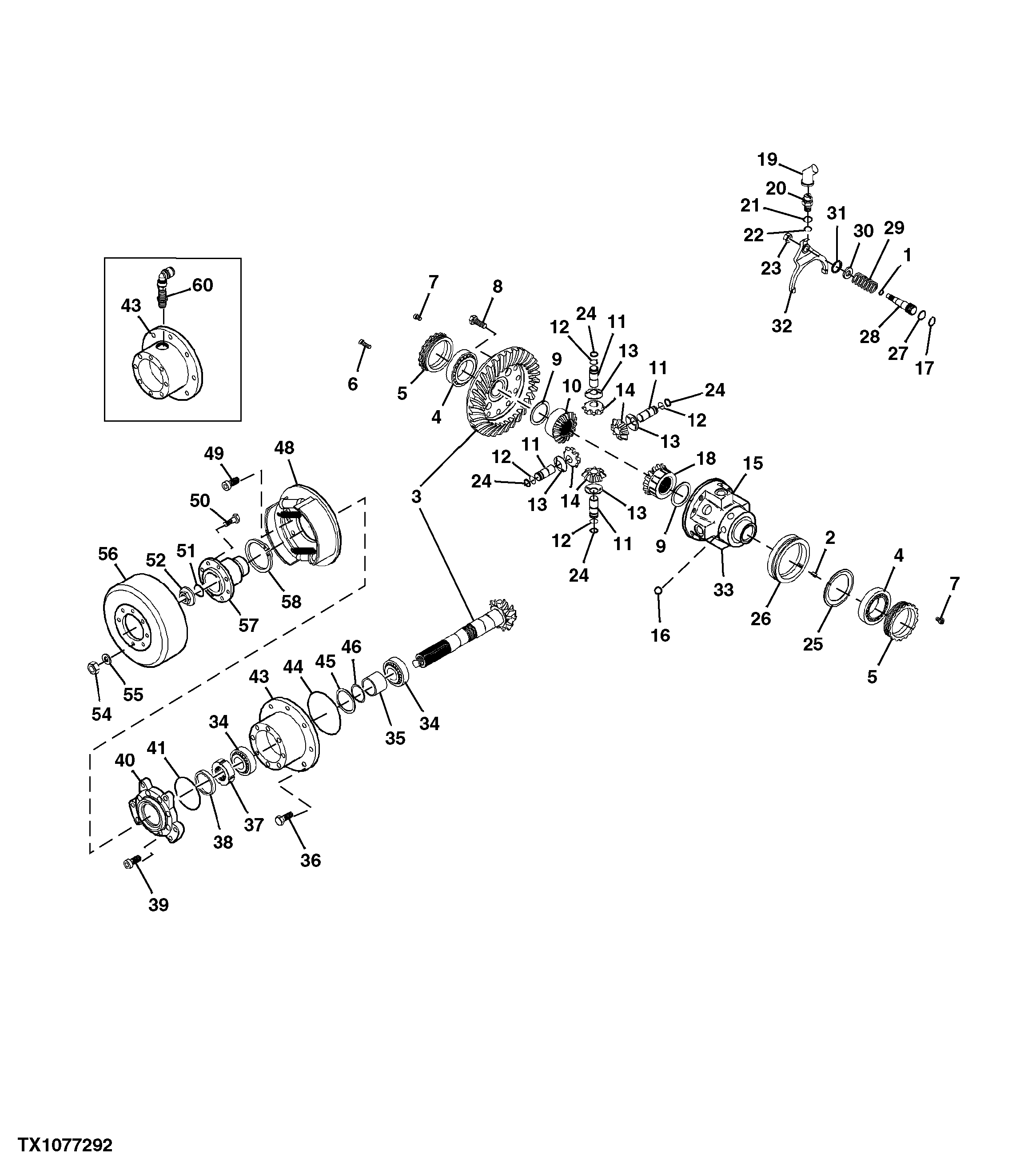

Front Axle Differential Housing, Bevel Gear and Disk

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT313860	1	Back-Up Ring	-
2	AT313905	1	Shaft Key	-
3	AT313906	1	Bevel Gear Drive	-
4	AT313857	2	Bearing	(SUB FOR AT313864)
5	AT313896	2	Nut	-
6	19M7657	4	Screw	M8 X 25
7	LW10476470	2	Screw	(SUB FOR AT313966)
8	19M9362	12	Bolt	M12 X 35
9	AT313818	2	Thrust Washer	-
10	AT313819	1	Bevel Gear	-
11	AT335538	4	Pinion Shaft	(SUB FOR AT334635)
12	AT313861	4	Back-Up Ring	-
13	AT313859	4	Thrust Washer	-
14	AT337804	4	Gear	(SUB FOR AT313820 ) (USE WITH AT335538)
15	AT313817	1	Differential	Housing
16	AT313821	6	Ball	-
17	AT313908	1	Ring	-
18	AT313887	1	Bevel Gear	-
19	AT313909	1	Cap	-
20	AT313910	1	Switch	-
21	LW10331937	1	Seal	(SUB FOR AT313911 OR AT318548)
22	AT313840	1	O-Ring	-
23	AT313912	1	Nut	-
24	AT313862	4	Snap Ring	-
25	AT313913	1	Plate	-
26	AT313914	1	Sleeve	-
27	AT313841	1	O-Ring	-
28	AT313915	1	Piston	-
29	AT313916	1	Compression Spring	-
30	AT313917	1	Stop	-
31	AT266154	1	Snap Ring	-
32	AT313918	1	Fork	-
33	AT313919	1	Differential	-
33	LW10115435	1	Differential	-
34	AT313866	2	Tapered Roller Bearing	-
35	LW10115436	1	Ring	Distance
35	AT313855	1	Spacer	-
36	19M7285	12	Cap Screw	M12 X 30
37	AT313882	1	Nut	-
38	AT313115	1	Seal	-
39	AT261728	6	Bolt	-
40	AT313113	1	Cover	-
41	AT313114	1	O-Ring	-
43	AT341101	1	Cover	-
43	AT313920	1	Housing	-
44	AT313843	7	O-Ring	-
45	-	1	Part 48	( AT313823 NLA)
45	AT313824	1	Shim	-
45	-	1	Part 47	( AT313822 NLA)
46	AT313816	1	Shim	(SUB FOR AT313831 OR AT320296)
46	AT313833	1	Shim	-
46	AT313832	1	Shim	-
48	AT313116	1	Brake	Components On Separate Page
49	AT303362	8	Socket Head Screw	-
50	LW10491217	8	Bolt	SUB FOR LW7004783
51	AT313842	1	O-Ring	SUB FOR LW7004783
52	LW11826706	1	Flange Nut	SUB FOR AT313921
54	AT313922	8	Nut	-
55	12M1645	8	Washer	10.500 X 21 X 1 mm
56	AT313109	1	Brake Drum	-
57	AT313923	1	Flange	-
58	AT313110	1	Snap Ring	-
60	AT318305	1	Transmitter	-

Front Axle Differential Housing, Bevel Gear and Disk

Нет текстового описания
