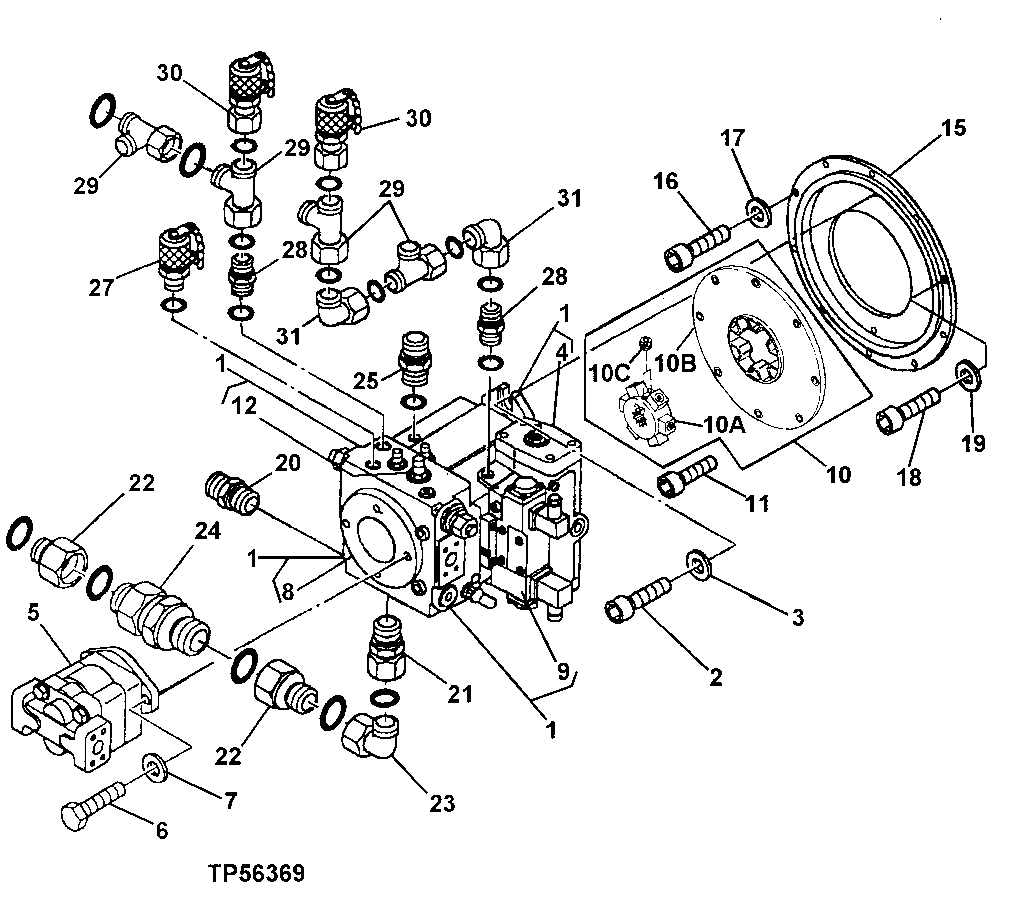

Hydrostatic and Hydraulic Pump With Fittings (344H)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT219016	1	Seal	Rotary Shaft Seal Not Illustrated
1	AT218528	1	Hydraulic Pump	Includes Charge Pump, SUB AT261176
1	AT195314	1	Electrical Connector Assy	Adapter Kit
1	AT195314	1	Electrical Connector Assy	Adapter Kit
1	AT195321	1	Hydraulic Pump	ORDER LW11117898
1	AT261048	1	Seal Kit	-
1	AT195314	1	Electrical Connector Assy	-
1	LW93018938	2	Cable	-
1	LW11117898	1	Hydraulic Pump	ALSO ORDER LW93018938
1	AT195321	1	Hydraulic Pump	ORDER LW11117898
1	AT261048	1	Seal Kit	-
1	AT261176	1	Hydraulic Pump	Includes Charge Pump, SUB AT195321, ALSO ORDER AT195314
1	AT219172	1	Seal Kit	-
2	LW4600263	2	Bolt	-
3	LW421500301	2	Washer	-
4	AT219174	1	Regulator	-
4	AT261181	1	Regulator	-
4	AT261181	1	Regulator	-
5	AT218536	1	Hydraulic Pump	-
5	AT219205	1	Seal Kit	-
5	AT218536	1	Hydraulic Pump	-
5	AT218536	1	Hydraulic Pump	-
5	AT310287	1	Hydraulic Pump	SUB FOR AT218536
6	19M7744	2	Cap Screw	M12 X 35
7	24H1272	2	Washer	9/16" X 1-1/4" X 1/4"
8	AT218539	1	Hydraulic Pump	Gear Pump
9	AT218540	1	Valve	-
9	AT197228	1	Valve	SUB FOR AT195371
9	AT197228	1	Valve	SUB FOR AT195371
10	AT310941	1	Clutch Plate	SUB FOR AT195316
10	AT310941	1	Clutch Plate	SUB FOR AT195316
10	AT195316	1	Clutch Plate	SUB FOR AT218521
10	AT218521	1	Clutch Plate	-
10A	AT195317	1	Coupling	SUB FOR AT218943
10A	AT218943	1	Coupling	-
10A	AT195317	1	Coupling	SUB FOR AT218943
10B	AT218944	1	Plate	-
10B	AT195318	1	Clutch Plate	SUB FOR AT218944
10B	AT195318	1	Clutch Plate	SUB FOR AT218944
10C	AT218475	2	Set Screw	-

Hydrostatic and Hydraulic Pump With Fittings (344H)
