4414 Timing Gear Cover, Water Pump (Cast Iron, With Insert)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE516672	1	Kit	Include Instructions
2	-	1	Part 2	(Marked R121036 ) (Order RE515314)
3	R545880	1	Gasket	SUB FOR R136515 OR R520131
4	RE517370	1	Fitting	M20 X 1.5, (Sub For RE501938)
5	51M7044	1	O-Ring	17.300 X 2.200 mm
6	RE516340	1	Seal	(Marked RE52346 Or RE505515 ) (Sub For RE59810)
7	RE505981	1	Water Pump	(Also Order R123417 And R123226)
7	SE501610	1	Water Pump Reman	(REMAN FOR RE505981)
8	RE46685	1	Fitting Plug	M18 X 1.5
9	51M7043	1	O-Ring	15.300 X 2.200 mm
10	RE515314	1	Kit	ORDER DZ110052
10	DZ110052	1	Water Pump	Not Illustrated Coolant Pump Rebuild kit
11	R123226	1	Seal	-
12	A364R	1	Snap Ring	-
13	-	1	Part 15	-
14	19M7863	5	Screw	M6 X 25
15	19M7796	3	Screw	M6 X 30
16	RE508566	1	Insert	(Includes Instructions)
17	R123417	1	Gasket	-
18	19M8317	10	Screw	M8 X 40
19	R121424	1	O-Ring	-
20	R121411	1	Cover	-
21	19M7775	3	Screw	M6 X 16
22	19M8291	1	Screw	M8 X 35
23	RE67239	1	Screw	(Threads With Pre-Applied Sealant)
24	14M7296	6	Flange Nut	M10
25	19M7801	1	Screw	M8 X 60
26	19M7979	2	Screw	M8 X 55
27	RE56369	1	Gear	Z=43, (Marked R120636)
28	R114193	1	Bushing	-
29	R131283	1	Thrust Washer	11 X 60 X 3 MM
30	19M8292	1	Screw	M10 X 50
31	RE505501	1	Bleed Valve	-

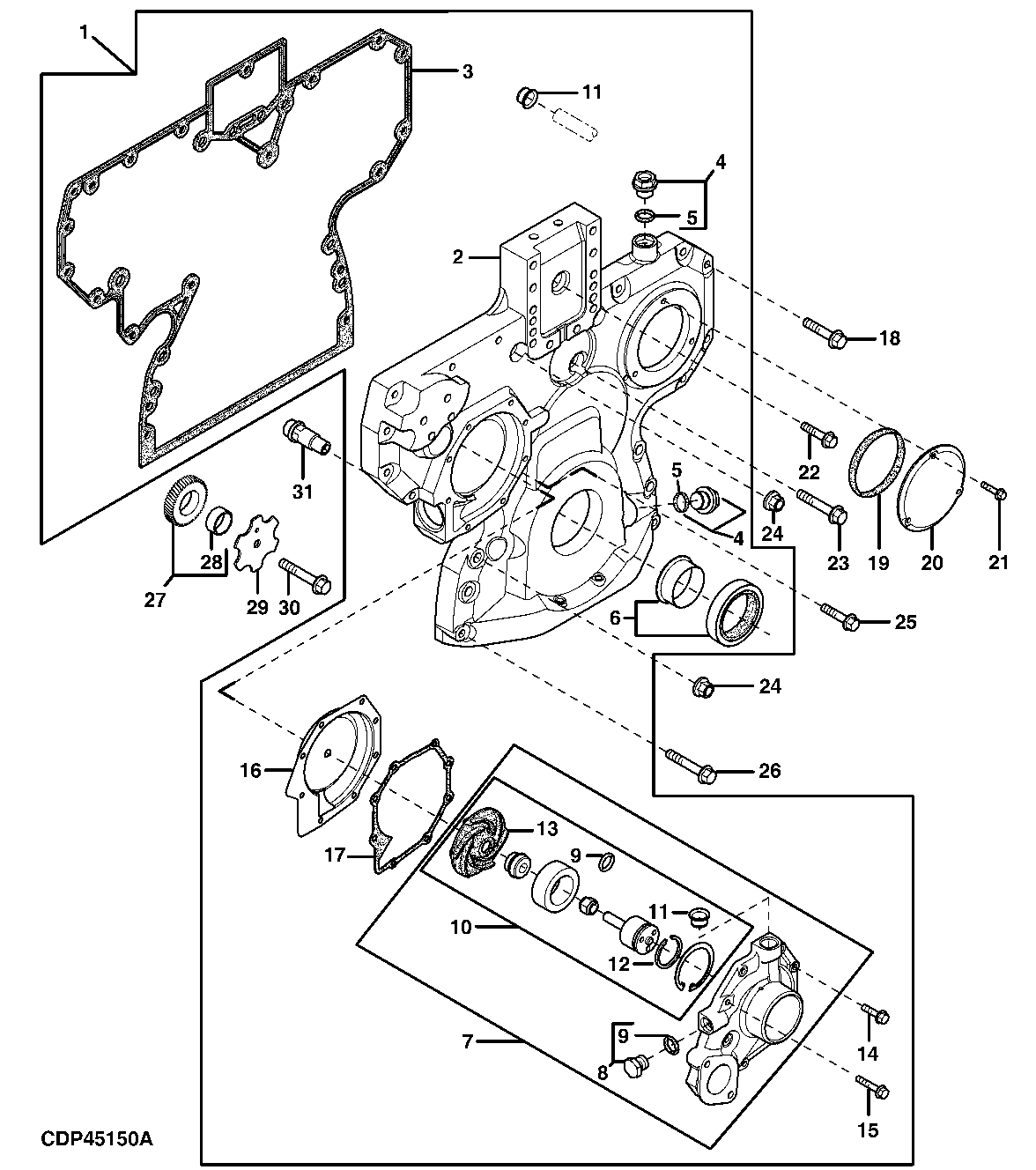

4414 Timing Gear Cover, Water Pump (Cast Iron, With Insert)
