Steering Control Assembly, Optional (500002 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SU314270	2	Fitting	-
2	SU315060	1	Support	Steering Valve
3	SU319640	1	Seat	Steering Gear
4	SJ319382	1	Steering Metering Pump	-
5	SU317901	4	O-Ring	-
6	SU34489	1	Junction Block	Hydrostatic Steering Unit
7	SU327863	1	Plate	-
8	SU319641	1	Shaft	Steering
9	SU319647	1	Tube	Steering
10	SU328161	2	Lock Washer	-
11	SU319850	3	Bolt	-
12	14M7158	1	Nut	M16
13	SJ317807	1	Steering Wheel	-
14	SU318979	8	Lock Washer	-
15	14M7509	2	Nut	M10
16	19M3148	2	Cap Screw	M10 X 40
17	SU318985	1	Washer	-
18	19M3145	2	Cap Screw	M10 X 25
19	SU318990	2	Lock Washer	-
20	19M7881	2	Screw	M8 X 20
21	SU318980	6	Lock Washer	-
22	SU318082	4	Fitting	Steering Return Pipe
23	SU317890	10	O-Ring	-
24	14M7515	2	Nut	M18
25	SU327361	1	Clamp	-
26	SU39641	1	Bracket	Oil Cylinder
27	14M7658	1	Nut	M20
28	14M7257	1	Nut	M20
29	11M7086	2	Cotter Pin	2.500 X 50 mm
30	SU318563	2	Fitting	-
31	SJ319620	1	Hydraulic Cylinder	INCLUDES SU317893, SU34480, SU34481, SU34482
31	SU34480	1	O-Ring	-
31	SU34481	1	O-Ring	-
31	SU34482	1	O-Ring	-
31	SU317893	1	O-Ring	Steering
32	SJ22276	1	Support	Oil Cylinder Oil Tube
33	SU326315	1	Sheet	Locking
34	SU314726	1	Nut	-
35	SJ319622	1	Hydraulic Cylinder Kit	Steering
36	SU328897	1	Clamp	-
37	SU320049	1	Clamp	-
38	SU326533	2	Fitting	Oil Cylinder Taper
39	19M7744	4	Cap Screw	M12 X 35
40	SU323076	2	Washer	-
41	SU318955	2	Nut	-
42	11M7023	2	Cotter Pin	4 X 32 mm
43	SJ22809	1	Oil Line	LGTH = 576 mm
44	SJ24300	1	Oil Line	LGTH = 415 mm
45	SU318719	4	Bolt	-
46	SJ315224	1	Grommet	-
47	SJ314267	1	Fitting	Oil Cylinder
48	SJ314266	1	Ball Joint	Oil Cylinder
49	SJ22293	1	Oil Tube	Oil Cylinder, Right
50	SJ22294	1	Oil Tube	Oil Cylinder, Left
51	SU314745	2	Boot	-
52	SU320245	2	Ball Stud	-

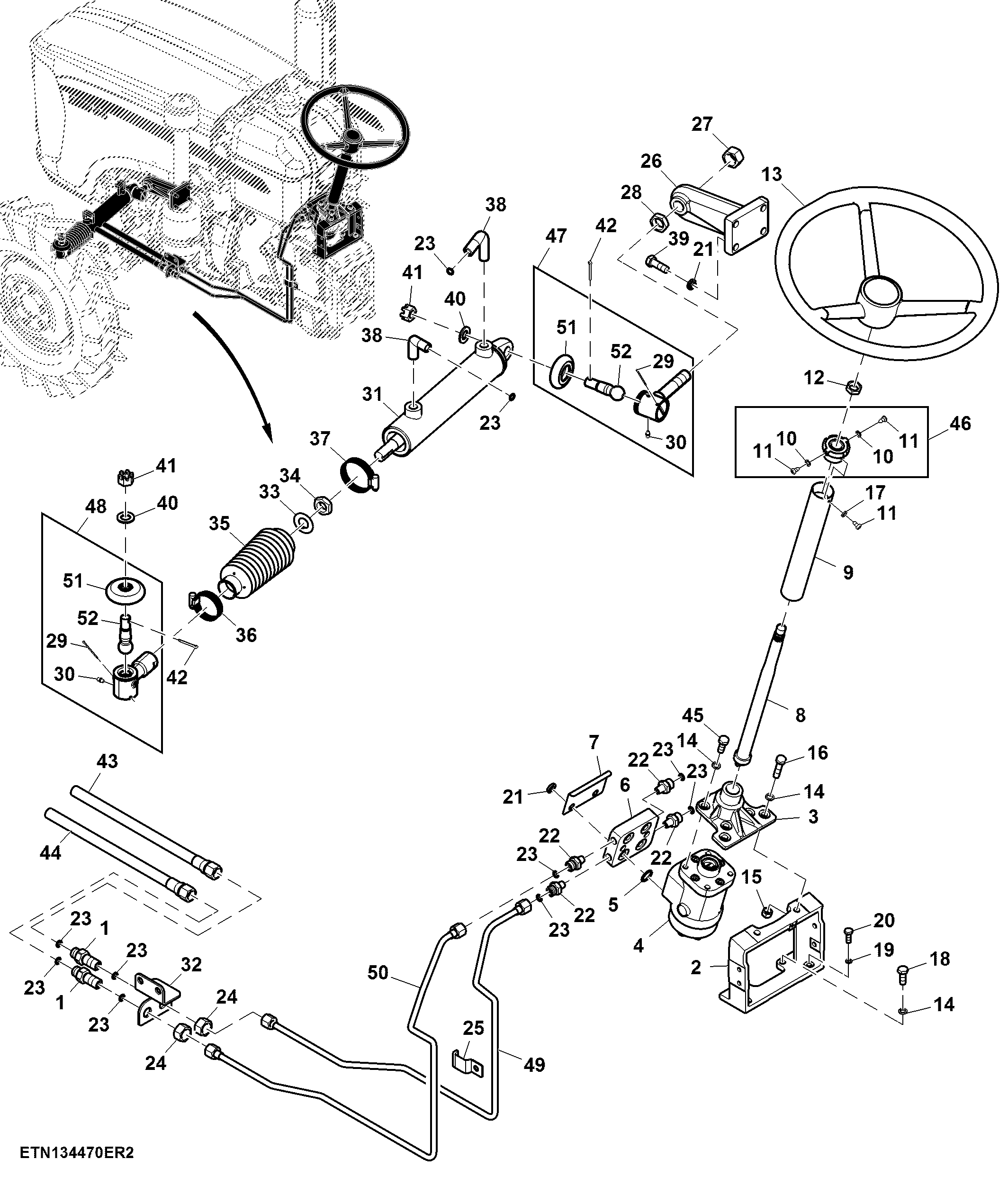

Steering Control Assembly, Optional (500002 - )
