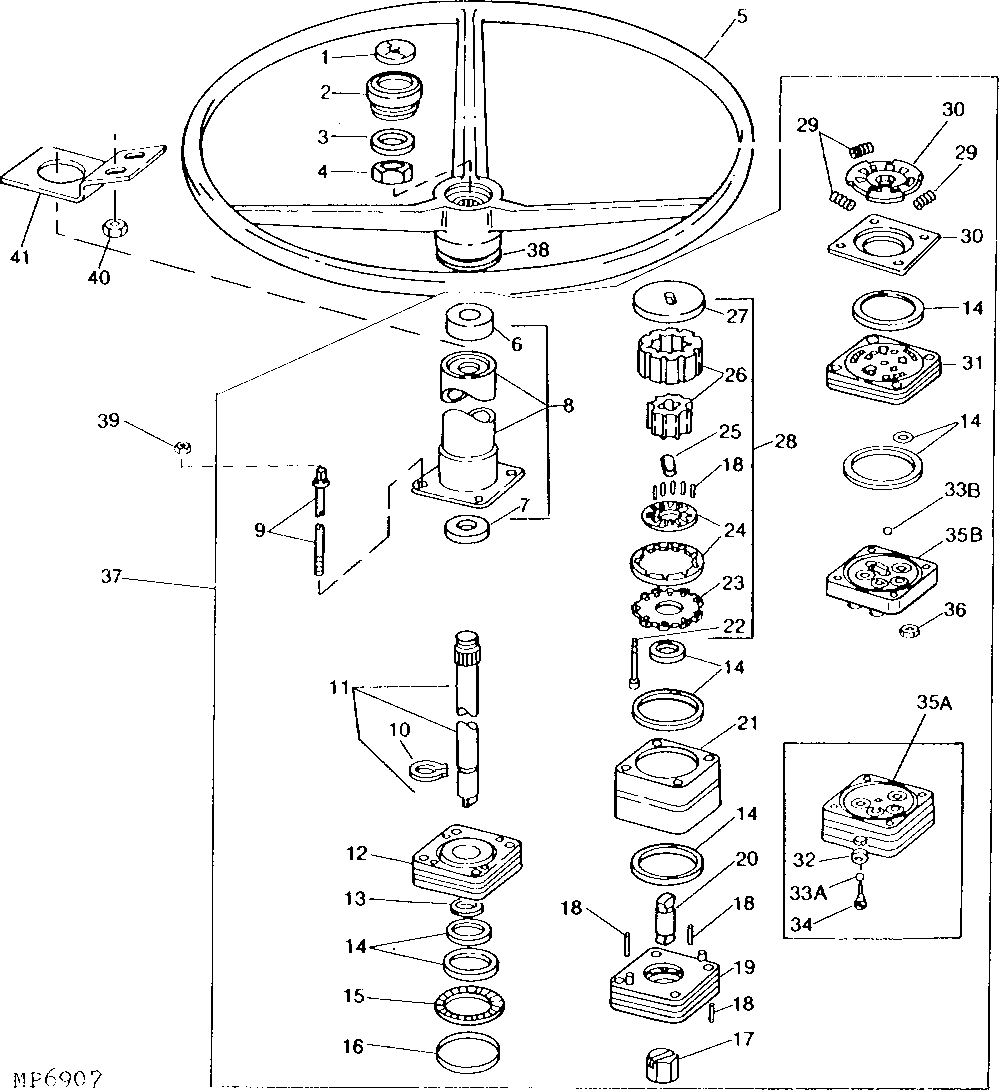

POWER STEERING CONTROL VALVE AND STEERING WHEEL [D19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M46707	1	Label	-
2	M85417	1	Filler Cap	-
3	T11220	1	O-Ring	-
4	14H866	1	Nut	5/8"
5	M85416	1	Steering Wheel	-
6	AM107081	1	Bearing Kit	BEARING (INCLUDES BEARING AND BUSHING) (SUB FOR M86792)
7	M86793	1	Washer	-
8	AM39456	1	Cover	-
9	M85281	4	Bolt	-
10	M40514	1	Snap Ring	-
11	AM102391	1	Shaft	INPUT
12	AM101654	1	Plate	-
13	M85283	1	Spacer	-
14	AM107078	1	Seal Kit	SEAL (INCLUDES FACE SEAL, RING SEAL, BACKUP RING, O-RINGS AND SEALS) (SUB FOR AM39468)
15	M71743	1	Bearing	(SUB FOR M85286)
16	M85284	1	Spacer	-
17	AM39465	1	Drive	-
18	AM39460	1	Roller Kit	NEEDLE ROLLER
19	M85295	1	Manifold	-
20	M85290	1	Link	-
21	M85287	1	Ring	METERING
22	M85288	11	Screw	-
23	M85289	1	Cover	-
24	AM39462	1	Device	COMMUTATOR AND RING ASSEMBLY
25	M85292	1	Spacer	-
26	AM39461	1	ROTOR	-
27	M85291	1	Plate	-
28	AM39459	1	Rotor Kit	METERING ASSEMBLY
29	AM39469	1	Spring Kit	SPRING
30	AM39464	1	Valve	-
31	M86885	1	Manifold	-
31	-	1	Part 32	(ORDER AM107762)
32	A4365R	1	O-Ring	-
34	AM39499	1	Plug	(INCLUDES A4365R)
36	M83389	4	Lock Nut	5/16"
37	AM100268	1	Steering Control Unit	(FIVE PORT)
37	AM107082	1	Valve	(FIVE PORT)
38	M43744	1	Bushing	-
39	14H650	4	Nut	5/16"
40	14M7303	2	Flange Nut	M6
41	M90142	1	CLAMP	(STEERING COLUMN TO INSTRUMENT PANEL)
33A	R63075	1	Ball	-
33B	M93606	1	Ball	-
35A	AM100320	1	Kit	PORT COVER AND CHECK VALVE
35B	AM107762	1	Plate Kit	PORT COVER AND CHECK VALVE, (INCLUDES M93606 BALL)

POWER STEERING CONTROL VALVE AND STEERING WHEEL [D19]
