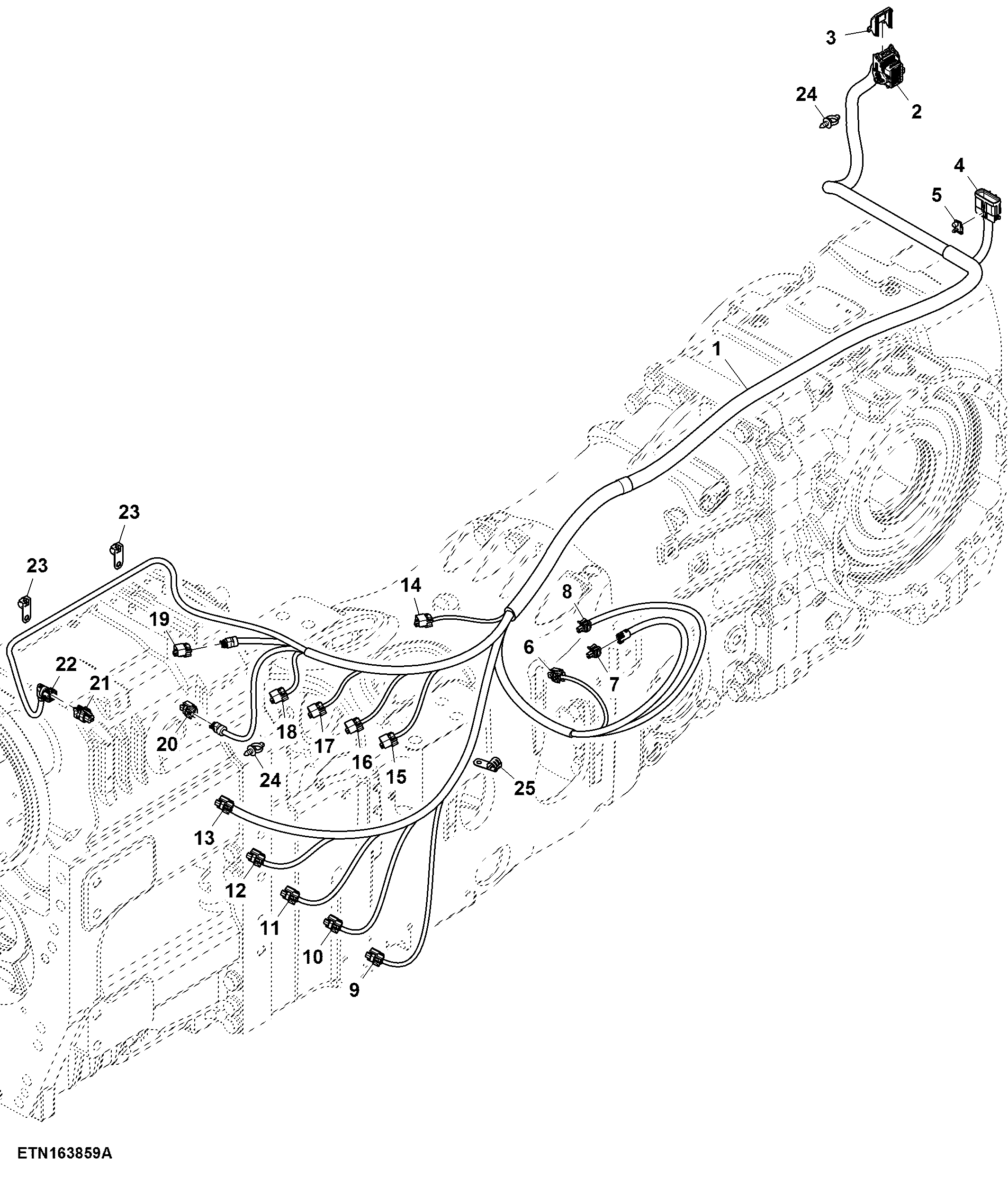

Wiring Harness, Transmission, 16 Speed PST (058001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE583644	1	Chassis Wiring Harness	-
2	57M10366	1	Elec. Connector Housing	A570-3
3	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 5
3	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 30, 42, 53
3	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 10, 11, 12, 13, 14, 15, 16, 22, 23, 24, 27, 28, 31, 33, 35, 40, 43, 44, 46, 47, 48, 49, 50
3	57M10401	1	Elec. Connector Accessory	-
4	57M8281	1	Elec. Connector Housing	XX330
5	57M11407	1	Elec. Connector Accessory	-
5	RWA11103	1	Repair Wire Assembly	Cavity A
5	RWA11098	1	Repair Wire Assembly	Cavity B, C, E, F, G, K, L, M, N, P, R
6	57M8924	1	Elec. Connector Housing	Y670
6	RWA11097	1	Repair Wire Assembly	Cavity A, B
7	57M8625	1	Elec. Connector Housing	B707
7	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
8	57M8625	1	Elec. Connector Housing	B727
8	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
9	57M8924	1	Elec. Connector Housing	Y653
9	RWA11097	1	Repair Wire Assembly	Cavity A, B
10	57M8924	1	Elec. Connector Housing	Y687
10	RWA11097	1	Repair Wire Assembly	Cavity A, B
11	57M8924	1	Elec. Connector Housing	Y685
11	RWA11097	1	Repair Wire Assembly	Cavity A, B
12	RWA11097	1	Repair Wire Assembly	Cavity A, B
12	57M8924	1	Elec. Connector Housing	Y688
13	57M8924	1	Elec. Connector Housing	Y686
13	RWA11097	1	Repair Wire Assembly	Cavity A, B
14	57M8924	1	Elec. Connector Housing	Y633
14	RWA11097	1	Repair Wire Assembly	Cavity A, B
15	57M8924	1	Elec. Connector Housing	Y689
15	RWA11097	1	Repair Wire Assembly	Cavity A, B
16	57M8924	1	Elec. Connector Housing	Y690
16	RWA11097	1	Repair Wire Assembly	Cavity A, B
17	57M8924	1	Elec. Connector Housing	Y691
17	RWA11097	1	Repair Wire Assembly	Cavity A, B
18	57M8924	1	Elec. Connector Housing	Y665
18	RWA11097	1	Repair Wire Assembly	Cavity A, B
19	57M8924	1	Elec. Connector Housing	Y693
19	RWA11097	1	Repair Wire Assembly	Cavity A, B
20	57M8924	1	Elec. Connector Housing	Y695
20	RWA11097	1	Repair Wire Assembly	Cavity A, B
21	57M9775	1	Elec. Connector Housing	B549
21	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
22	57M10155	1	Elec. Connector Accessory	-
23	57M9435	2	Clamp	-
24	RE258807	5	Tie Band	-
25	57M9432	1	Clamp	-

Wiring Harness, Transmission, 16 Speed PST (058001 - )
