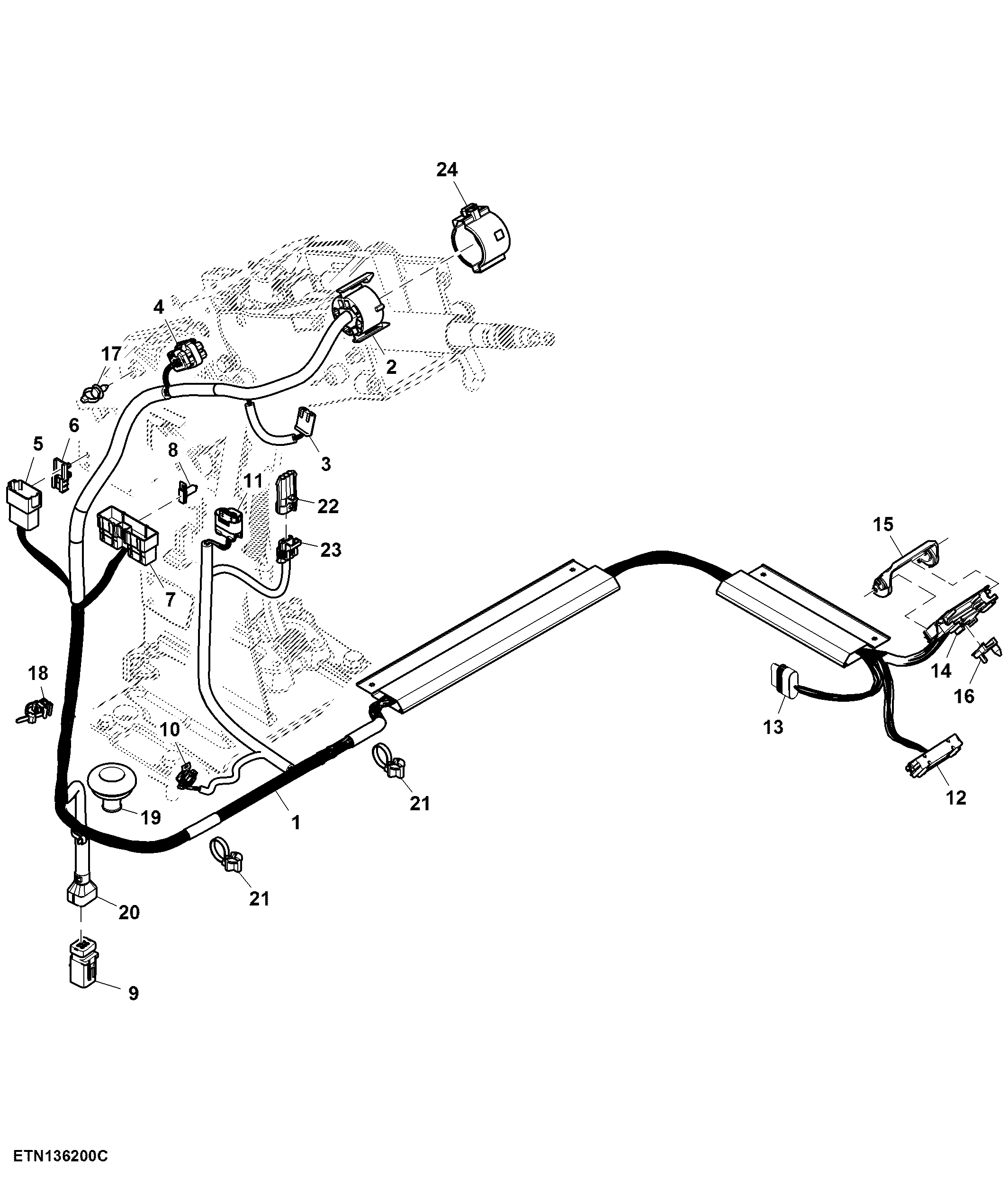

Wiring Harness, Front Control Support, W/ Backup Pump (058001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE578850	1	Wiring Harness	-
2	R277657	1	Elec. Connector Housing	S001
3	R77480	1	Electrical Connector Assy	S301
4	57M9786	1	Elec. Connector Housing	B248
5	-	1	Part 5	A574
5	57M7682	1	Elec.Connect Locking Device	-
6	57M9717	1	Elec.Connect Locking Device	-
7	57M8857	1	Elec. Connector Housing	XX101
7	57M8859	2	Elec.Connect Locking Device	-
7	57M8860	1	Elec.Connect Locking Device	-
8	57M8910	1	Clip	-
9	57M9789	1	Elec. Connector Housing	XX982
10	57M7328	1	Elec. Connector Housing	S503
10	57M7289	1	Elec.Connect Locking Device	-
11	57M8919	1	Elec. Connector Housing	A578
12	57M11346	1	Elec. Connector Housing	XX121
13	57M8851	1	Elec. Connector Housing	A577
14	57M11348	1	Elec. Connector Housing	XX120
15	-	1	Part 19	-
16	57M11364	1	Elec. Connector Accessory	-
17	RE258807	5	Tie Band	-
18	57M9229	1	Clip	-
19	R343435	1	Grommet	-
20	57M9841	1	Elec. Connector Accessory	-
21	57M11797	2	Elec. Connector Accessory	-
22	57M7255	1	Elec. Connector Housing	S504
22	57M7290	1	Elec. Connector Accessory	-
23	57M7257	1	Elec. Connector Housing	Dust Cap
24	RE576503	1	Snap Ring	-

Wiring Harness, Front Control Support, W/ Backup Pump (058001 - )

Нет текстового описания
