Открытый узел

Control, W/ Right Hand Reverser, 16 Speed PST

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

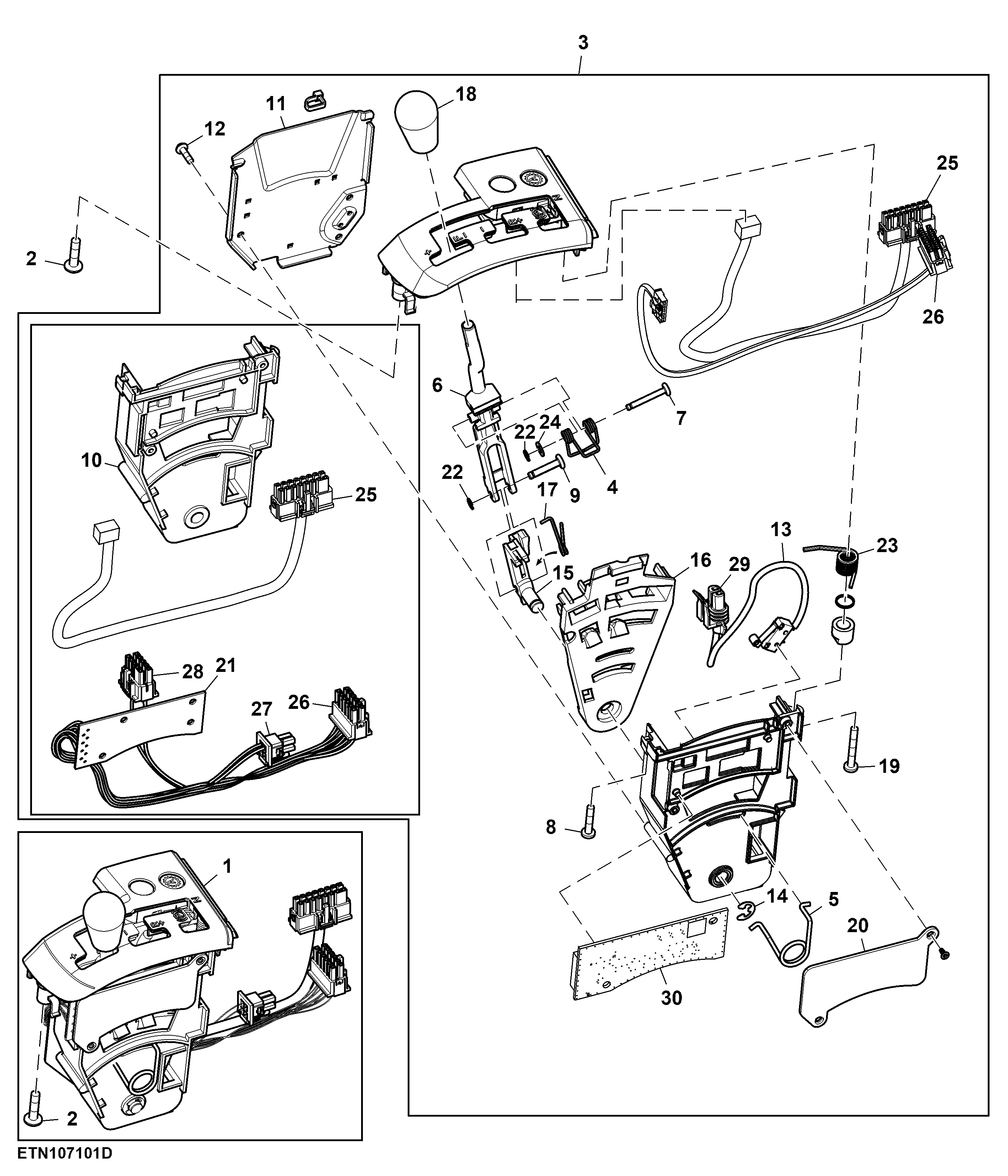

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE564621	1	Control	-
2	R542221	2	Screw	-
3	RE593953	1	Control	SUB FOR RE583256; ORDER RE594600
3	RE594600	1	Control	-
4	R134449	1	Spring	-
5	R124241	1	Spring	ORDER R569617
5	R569617	1	Spring	-
6	RE258526	1	Lever	-
7	R121919	1	Pin	-
8	21M7216	1	Screw	M4 X 20
9	R275315	1	Pin	-
10	R296817	1	Housing	USE WITH RE593953 OR RE583256
11	R557168	1	Shield	-
12	R542220	3	Screw	-
13	RE174520	1	Switch	-
14	R72654	1	Snap Ring	-
15	R123999	1	Pivot	-
16	RE311400	1	Sector	-
17	R124711	1	Spring	-
18	R345693	1	Knob	-
19	21M7276	1	Screw	M4 X 30
20	R558740	1	Cover	-
21	RE556548	1	Circuit Board	USE WITH RE593953 OR RE583256
22	R40687	2	Snap Ring	-
23	R187690	1	Spring	-
24	24M7117	1	Washer	4.300 X 9 X 0.800 mm
25	57M7717	1	Electrical Connector Assy	A012X4, Armrest Control Unit Connector (16 Pin) USE WITH RE593953 OR RE583256 OR RE594600
26	57M7716	1	Electrical Connector Assy	A012X3A, Armrest Control Unit Connector (12 Pin) USE WITH RE593953 OR RE583256 OR RE594600
26	57M7721	1	Electrical Connector Assy	USE WITH RE593953 OR RE583256
27	57M7712	1	Electrical Connector Assy	B068, Speed Control Lever Sensor USE WITH RE593953 OR RE583256
27	57M7718	1	Electrical Connector Assy	USE WITH RE593953 OR RE583256
28	57M7470	1	Elec. Connector Housing	X075, Drive Lever Set Speed Connector USE WITH RE593953 OR RE583256
28	57M7474	1	Elec. Connector Terminal	USE WITH RE593953 OR RE583256
29	57M7254	1	Elec. Connector Housing	S302, Neutral Start Switch
30	AL228068	1	Circuit Board	USE WITH RE594600

Control, W/ Right Hand Reverser, 16 Speed PST
