Control Valve, 1500 MFWD / ILS™, W/ AutoTrac™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7786	2	Screw	M10 X 30
2	51M7090	2	O-Ring	13.400 X 2.400 mm, USE WITH RE577904
2	R158521	2	O-Ring	12.294 X 3.531 mm (31/64" X 0.139"), USE WITH RE584164
3	R550394	1	O-Ring	USE WITH RE577904
3	R564072	1	Sealing Ring	USE WITH RE584164
4	RE581544	4	Pressure Sensor	SUB FOR APPL RE272647
5	RE582562	1	Hydraulic Pump	SUB FOR RE577556
6	RE583800	1	Valve	SUB FOR RE571343
8	RE561719	1	Manifold	-
9	RE561829	2	Valve	-
10	RE190805	2	Diagnostic Coupling	-
11	51M7041	8	O-Ring	11.300 X 2.200 mm
12	R77175	2	Cover	-
13	RE564118	2	O-Ring Kit	-
14	RE561827	6	Valve	-
15	RE564117	6	O-Ring Kit	-
16	12H293	4	Lock Washer	7/16"
17	19M10363	4	Socket Head Screw	M10 X 75
18	19M8335	4	Screw	M8 X 55
19	RE575260	1	Seal Kit	INCLUDES (4) R159018, (5) R274578, (2) R99038 AND T78784
20	R99038	2	O-Ring	-
21	64M1017	2	Drain Plug	-
22	R274578	5	O-Ring	-
23	R159018	4	Dowel Pin	-
24	RE571616	1	Valve Spool	-
25	TA25675	1	Valve	SUB FOR RE337589
26	AL203414	1	Valve Kit	Load Sense Blocking Valve ORDER AL229995
26	AL229995	1	Valve Kit	Load Sense Blocking Valve
27	RE571615	1	Filter	-
28	19M7809	3	Screw	M10 X 70
29	RE244397	1	Solenoid Valve	-
30	RE276475	1	Repair Kit	-
31	RE276485	1	Repair Kit	-
32	RE557872	1	O-Ring Kit	-
33	T78784	1	O-Ring	-
34	64M1022	1	Drain Plug	-
35	51M7047	1	O-Ring	23.600 X 2.900 mm
36	AL203413	1	O-Ring Kit	-
37	64M1021	1	Drain Plug	-
38	51M7045	1	O-Ring	19.300 X 2.200 mm
39	AXE27414	1	Seal Kit	-
7A	RE561721	1	Elec-Hyd Proportional Valve	SUB FOR RE594314
7B	RE594314	1	Elec-Hyd Proportional Valve	-

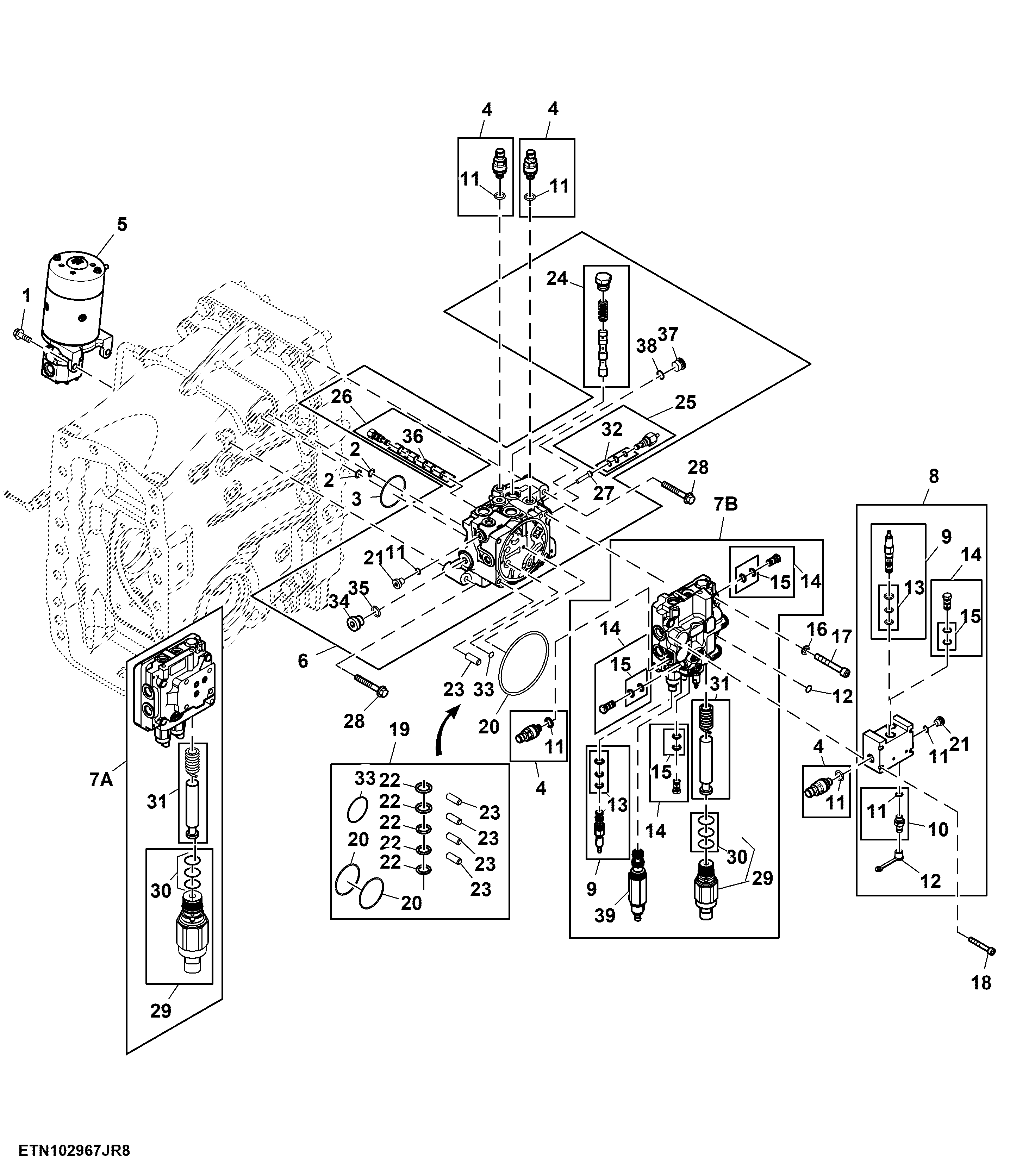

Control Valve, 1500 MFWD / ILS™, W/ AutoTrac™

Нет текстового описания
