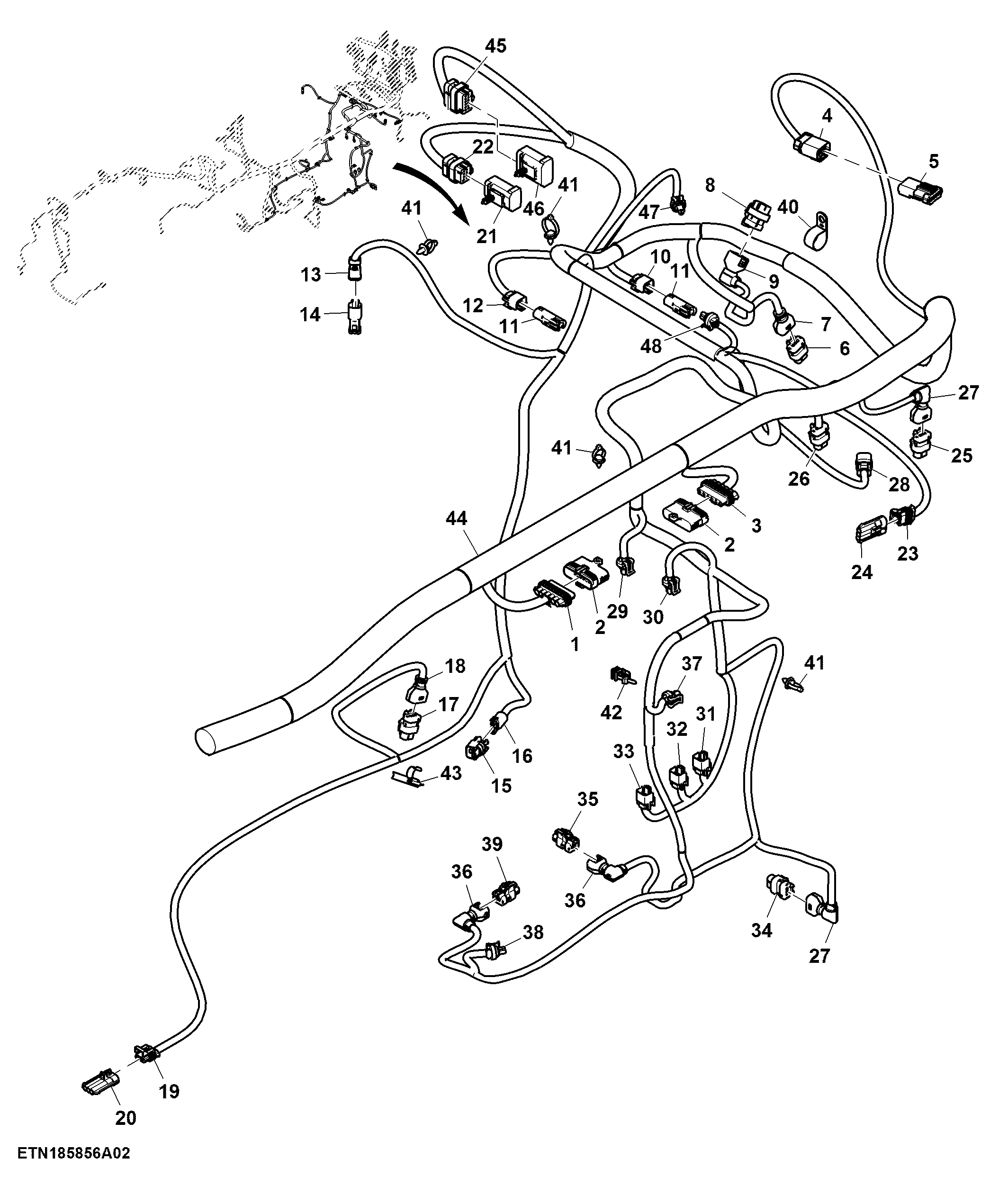

Chassis Wiring Harness, MFWD, W/ AutoTrac™, T3 Engine (3/4) (058001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8326	1	Electrical Connector Assy	-
1	57M9406	1	Elec. Connector Accessory	Splice Pack 2 SPK02
1	RWA11089	1	Repair Wire Assembly	Cavity A, B, C, D, E
1	57M10432	1	Elec.Connect Locking Device	-
2	57M8611	2	Electrical Connector Assy	-
3	57M9406	1	Elec. Connector Accessory	Splice Pack 1 SPK01
3	57M8326	1	Electrical Connector Assy	-
3	57M10432	1	Elec.Connect Locking Device	-
3	RWA11089	1	Repair Wire Assembly	Cavity A, C, E, F
4	57M10303	1	Elec. Connector Housing	Chassis To Trailer Brake Power Harness Interconnect XX208
4	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
5	57M10304	1	Elec. Connector Housing	-
6	57M9780	1	Elec. Connector Housing	Rear Chassis to Draft Sensor Extension Harness Interconnect XX721
6	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
7	57M15917	1	Elec. Connector Accessory	-
8	57M9786	1	Elec. Connector Housing	Rear Hitch Position Sensor B698
8	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
9	57M10229	1	Elec. Connector Accessory	-
10	57M8924	1	Elec. Connector Housing	Cab Suspension Lower Solenoid Y614
10	57M8633	1	Elec. Connector Accessory	-
10	RWA11097	1	Repair Wire Assembly	Cavity A, B
11	57M9222	2	Elec. Connector Housing	-
11	57M8633	2	Elec. Connector Accessory	-
12	57M8924	1	Elec. Connector Housing	Cab Suspension Raise Solenoid Y613
12	57M8633	1	Elec. Connector Accessory	-
12	RWA11097	1	Repair Wire Assembly	Cavity A, B
13	57M8639	1	Elec. Connector Housing	Cab Suspension Damping Solenoid Y615
13	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
13	57M8022	1	Elec.Connect Locking Device	-
14	57M8023	1	Elec. Connector Housing	-
15	57M8924	1	Elec. Connector Housing	Rear PTO Solenoid Y500
15	57M11380	1	Elec. Connector Accessory	-
15	RWA11097	1	Repair Wire Assembly	Cavity A, B
16	57M9222	1	Elec. Connector Housing	-
16	57M8633	1	Elec. Connector Accessory	-
17	57M9780	1	Elec. Connector Housing	Hydraulic Charge Pump Pressure Sensor B717
17	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
18	57M15917	1	Elec. Connector Accessory	-
19	57M7290	1	Elec. Connector Accessory	-
19	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
19	57M7255	1	Elec. Connector Housing	Transmission / Chassis To Radar Harness Interconnect XX201
20	57M7257	1	Elec. Connector Housing	-
20	57M7290	1	Elec. Connector Accessory	-
21	57M11337	1	Elec. Connector Accessory	-
22	57M9792	1	Elec. Connector Housing	Secondary Brake To Chassis Interconnect XX059
22	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
23	57M7255	1	Elec. Connector Housing	Cab Suspension Position Sensor B308
23	57M7290	1	Elec. Connector Accessory	-
23	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
24	57M7290	1	Elec. Connector Accessory	-
24	57M7257	1	Elec. Connector Housing	-
25	57M9780	1	Elec. Connector Housing	Transmission Secondary Speed Sensor B516
25	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
26	57M9780	1	Elec. Connector Housing	Transmission Primary Speed Sensor B517
26	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
27	57M9847	2	Elec. Connector Accessory	-
28	57M8924	1	Elec. Connector Housing	Differential Lock Solenoid Y666
28	57M11380	1	Elec. Connector Accessory	-
28	RWA11097	1	Repair Wire Assembly	Cavity A, B
29	57M8625	1	Elec. Connector Housing	Main Hydraulic Pump Pressure Sensor 1 B261
29	57M8624	1	Elec.Connect Locking Device	-
29	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
30	57M8624	1	Elec.Connect Locking Device	-
30	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
30	57M8625	1	Elec. Connector Housing	Main Hydraulic Pump Pressure Sensor 2 B262
31	57M8924	1	Elec. Connector Housing	Steer Enable Solenoid Y747
31	57M8633	1	Elec. Connector Accessory	-
31	RWA11097	1	Repair Wire Assembly	Cavity A, B
32	57M9210	1	Elec. Connector Housing	Steer Right Solenoid Y749
32	57M8633	1	Elec. Connector Accessory	-
32	RWA11097	1	Repair Wire Assembly	Cavity A, B
33	57M9210	1	Elec. Connector Housing	Steer Left Solenoid Y748
33	57M8633	1	Elec. Connector Accessory	-
33	RWA11097	1	Repair Wire Assembly	Cavity A, B
34	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
34	57M9780	1	Elec. Connector Housing	Differential Case Oil Presence Sensor B555
35	57M9775	1	Elec. Connector Housing	Rear PTO Speed Sensor B696_1
36	57M15924	2	Elec. Connector Accessory	-
37	57M8625	1	Elec. Connector Housing	Backup Hydraulic Pump Pressure Sensor B263
37	57M8624	1	Elec.Connect Locking Device	-
37	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
38	57M8625	1	Elec. Connector Housing	Hydraulic Oil Filter Restriction Sensor B552
38	57M8624	1	Elec.Connect Locking Device	-
38	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
39	57M9773	1	Elec. Connector Housing	Hydraulic Oil Temperature Sensor B694
39	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
40	57M12125	2	Clamp	-
41	RE258807	26	Tie Band	-
42	AH225366	1	Clip	-
43	57M12057	1	Elec. Connector Accessory	-
44	RE588110	1	Wiring Harness	-
45	57M9800	1	Elec. Connector Housing	Trailer Brake To Chassis Interconnect XX058
45	RWA11029	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
46	57M11338	1	Elec. Connector Accessory	-
47	57M8625	1	Elec. Connector Housing	Right Rear Brake Pressure Sensor B255
47	57M8624	1	Elec.Connect Locking Device	-
47	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
48	57M8625	1	Elec. Connector Housing	Left Rear Brake Pressure Sensor B256
48	57M8624	1	Elec.Connect Locking Device	-
48	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3

Chassis Wiring Harness, MFWD, W/ AutoTrac™, T3 Engine (3/4) (058001 - )
