Открытый узел

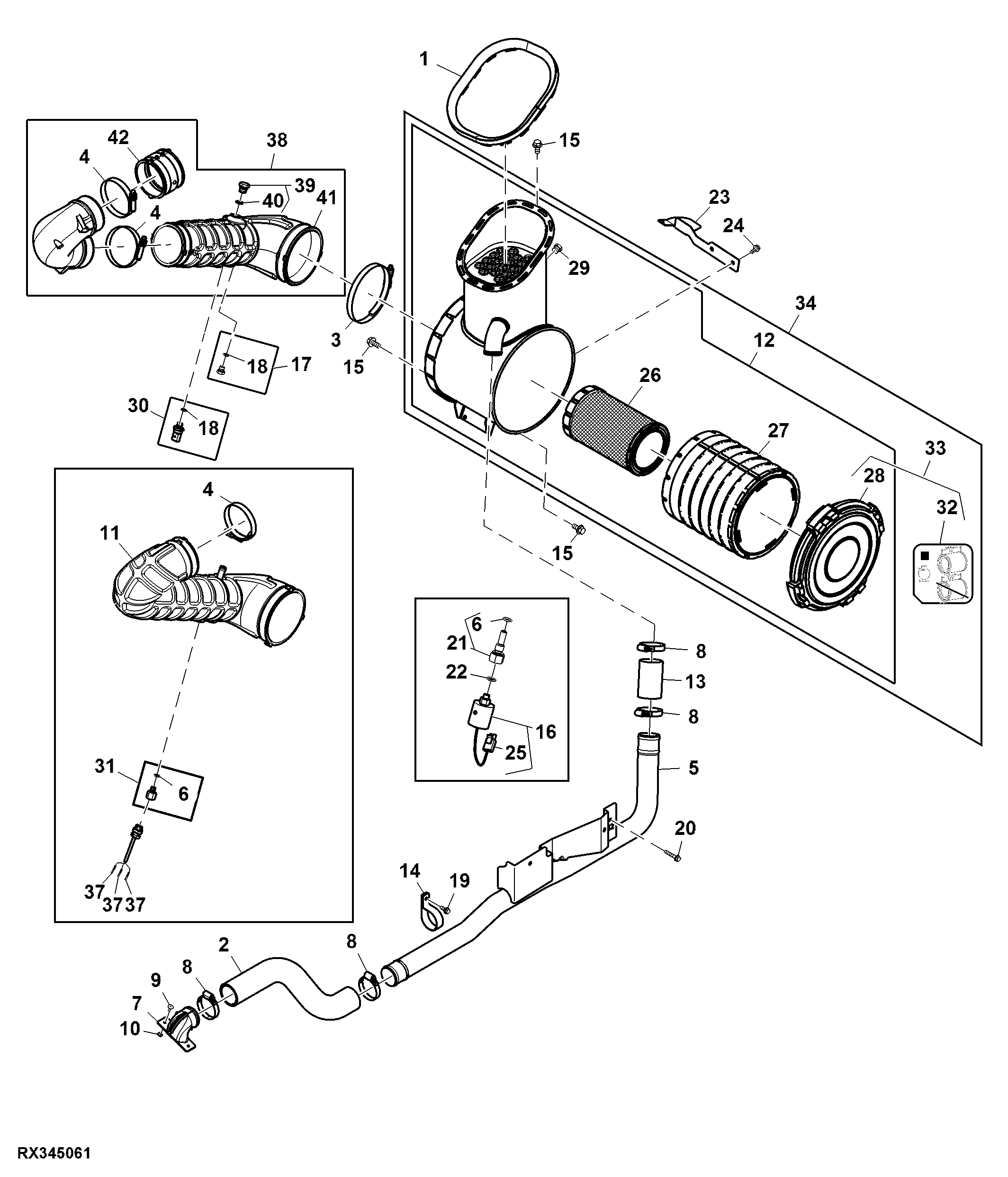

Air Intake, W/O Air Trailer Brakes, T2 Engine

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R302456	1	Isolator	-
2	R558849	1	Hose	SUB FOR R305002
3	RE66534	1	Clamp	-
4	RE52703	3	Hose Clamp	-
5	RE332101	1	Tube	-
6	51M7040	1	O-Ring	9.300 X 2.200 mm
7	R232652	1	Adapter	-
8	AL170672	4	Clamp	-
9	M136047	2	Rivet	-
10	24M7087	2	Washer	5.500 X 10 X 1 mm
11	RE556453	1	Air Intake	ORDER RE580684
12	RE325735	1	Air Cleaner	-
12	RE580335	1	Air Cleaner	SUB FOR RE325735; ORDER RE583982
13	R259319	1	Hose	-
14	R241967	1	Clamp	-
15	19M7788	3	Screw	M12 X 25
16	RE574537	1	Air Restriction Sensor	ORDER AXE36480, ALSO ORDER RE523854; SUB FOR RE219835 OR RE572978
17	RE46684	1	Fitting Plug	-
18	51M7041	2	O-Ring	11.300 X 2.200 mm
19	19M7866	1	Screw	M8 X 20
20	19M7799	2	Screw	M8 X 45
21	RE239083	1	Adapter Fitting	USE WITH RE325735
22	R77673	1	O-Ring	USE WITH RE325735
23	R549709	1	Bracket	-
24	19M7784	2	Screw	M10 X 20
25	RE12363	1	Electrical Connector Assy	-
26	RE210103	1	Air Filter	(Secondary Air Filter) ORDER RE587794; USE WITH RE325735
26	RE580338	1	Air Filter	(Secondary Air Filter) ORDER RE587792; USE WITH RE580335
26	RE587794	1	Air Filter	(Secondary Air Filter) USE WITH RE325735
26	RE587792	1	Air Filter	(Secondary Air Filter) USE WITH RE580335
27	RE210102	1	Air Filter	(Primary Air Filter) ORDER RE587793; USE WITH RE325735
27	RE580337	1	Air Filter	(Primary Air Filter) ORDER RE587791; USE WITH RE580335
27	RE587793	1	Air Filter	(Primary Air Filter) USE WITH RE325735
27	RE587791	1	Air Filter	(Primary Air Filter) USE WITH RE580335
28	RE572533	1	Cover	-
29	M122275	1	Fitting	-
30	AXE36480	1	Pressure Sensor	-
31	RE523854	1	Adapter Fitting	USE WITH AXE36480
32	R559552	1	Label	-
33	RE583723	1	Cover	-
34	RE583982	1	Air Cleaner	(Service Only)
35	RE581316	1	Wiring Harness	(Service Only)
36	57M9783	1	Elec. Connector Housing	(Service Only)
37	57M9808	3	Elec. Connector Terminal	(Service Only)
38	RE580684	1	Air Intake	-
39	RE46685	1	Fitting Plug	-
40	51M7043	1	O-Ring	15.300 X 2.200 mm
41	RE580371	1	Air Intake	-
42	R557206	1	Air Intake	-

Air Intake, W/O Air Trailer Brakes, T2 Engine
