Открытый узел

21 Engine 6090RW306-DZ105456

21 Engine 6090RW306-DZ105456

21 Engine 6090RW306-DZ105456

21 Engine 6090RW306-DZ105456

21 Engine 6090RW306-DZ105456

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

21 Engine 6090RW306-DZ105456

Нет текстового описания

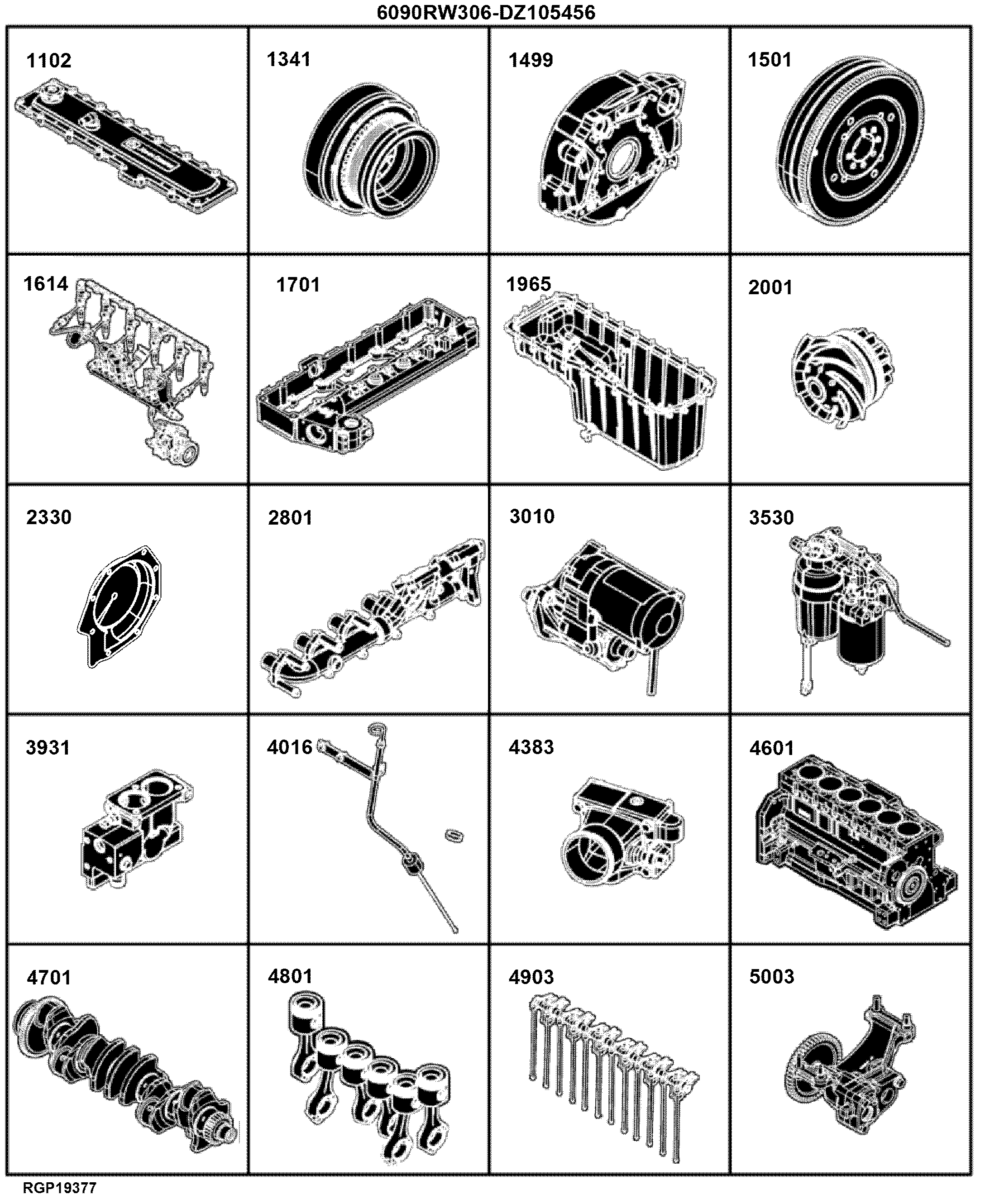

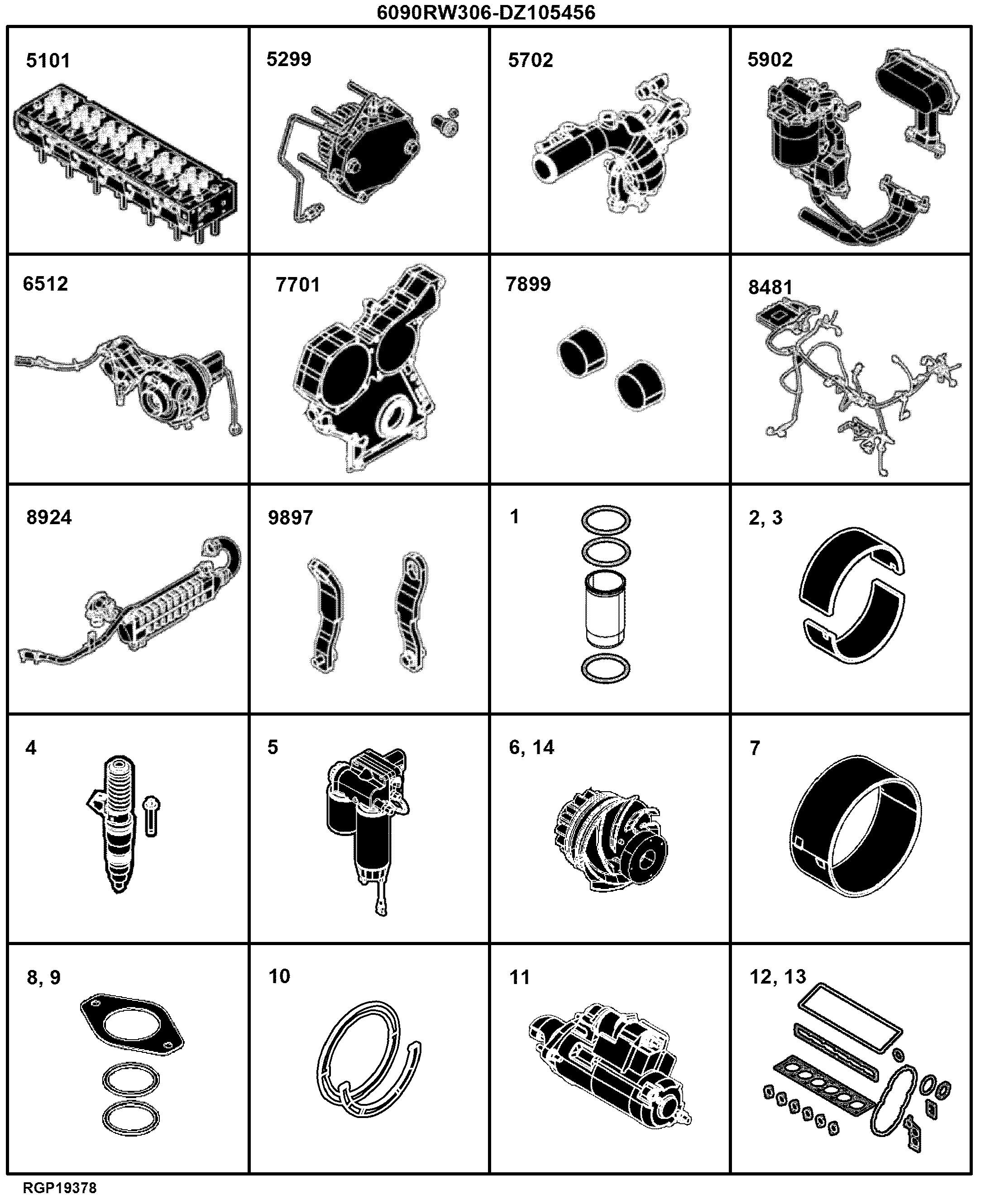

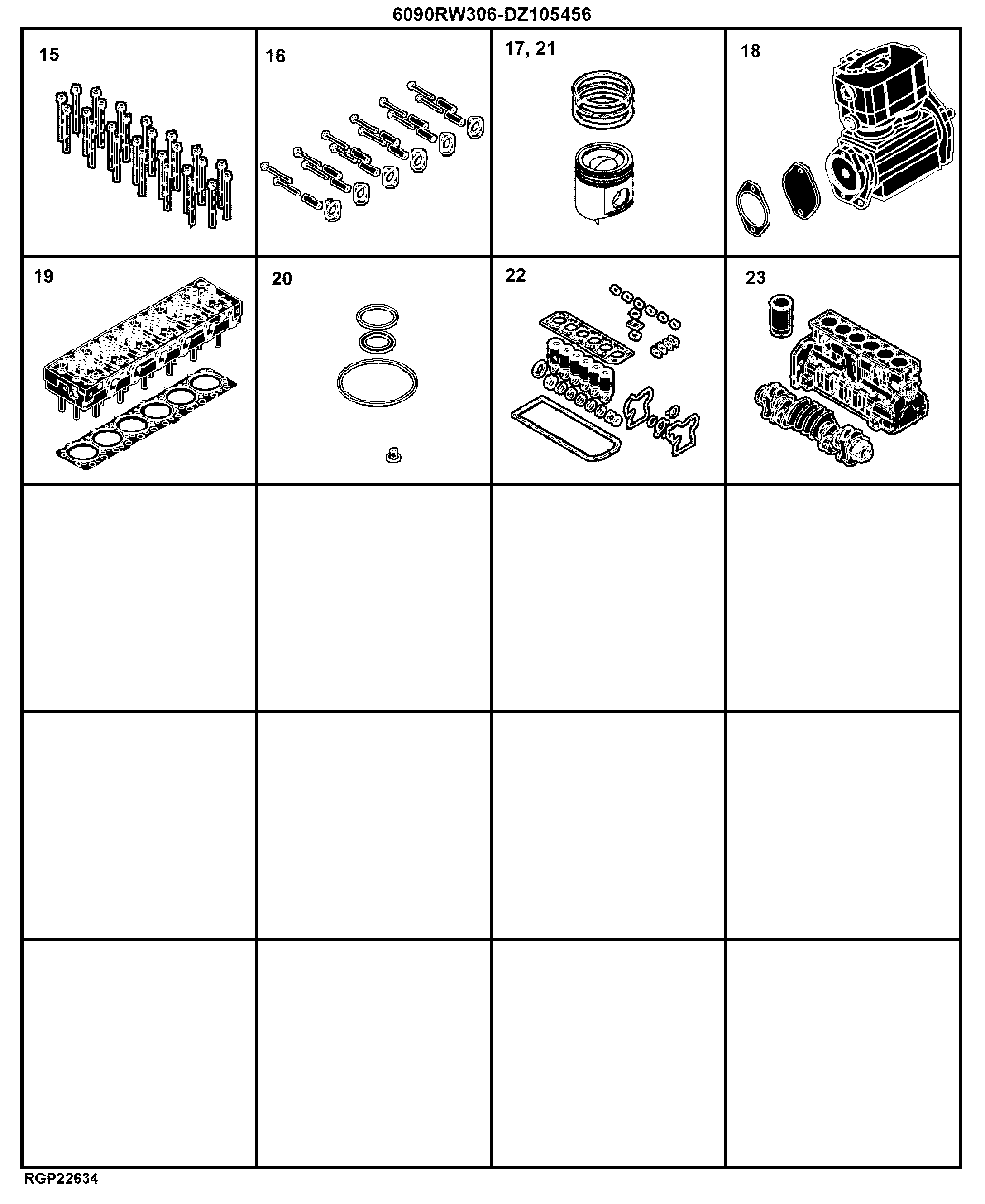

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Gasket Kit, EGR Valve	-
-	-	1	8924 Exhaust Gas Recirculation	-
-	-	1	9897 Lift Strap	-
-	-	1	9901 Connecting Rod Bearings	-
-	-	1	9901 Crankshaft Thrust Bearing Kit	-
-	-	1	9901 Cylinder Head Kit	-
-	-	1	9901 Cylinder Head Removal Gasket Kit	-
-	-	1	9901 Engine Gasket Kit (1/3)	-
-	-	1	9901 Engine Gasket Kit (2/3)	-
-	-	1	9901 Engine Gasket Kit (3/3)	-
-	-	1	9901 Engine Overhaul Kit 1/2	-
-	-	1	9901 Engine Overhaul Kit 2/2	-
-	-	1	9901 Exhaust Manifold Removal Kit	-
-	-	1	9901 Fuel Filter Element Service Kit	-
-	-	1	9901 Gasket Kit, EGR Valve	-
-	-	1	8481 Engine Wiring Harness	-
-	-	1	9901 Kit, Air Compressor	-
-	-	1	9901 Kit, Water Pump, High Flow	-
-	-	1	9901 Main Bearing Kit	-
-	-	1	9901 Nozzle Kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Primary Fuel Filter Seal Kit	-
-	-	1	9901 Seal Kit	-
-	-	1	9901 Service Kit, Cylinder Head Bolts	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Water Pump Repair Kit	-
-	-	1	4016 Engine Oil Dipstick	-
-	-	1	1341 Damper	-
-	-	1	1499 Flywheel Housing	-
-	-	1	1501 Flywheel	-
-	-	1	1614 Fuel Injection System	-
-	-	1	1701 Air Intake Manifold	-
-	-	1	1965 Oil Pan	-
-	-	1	2001 Water Pump	-
-	-	1	2330 Fan Drive (1/2)	-
-	-	1	2330 Fan Drive (2/2)	-
-	-	1	2801 Exhaust Manifold	-
-	-	1	3010 Starting Motor	-
-	-	1	3530 Fuel Filter	-
-	-	1	3931 Thermostat Housing	-
-	-	1	1102 Valve Cover	-
-	-	1	4383 Starting Aid	-
-	-	1	4601 Cylinder Block	-
-	-	1	4701 Crankshaft and Bearings	-
-	-	1	4801 Connecting Rods and Pistons	-
-	-	1	4903 Valve Actuating Mechanism	-
-	-	1	5003 Engine Oil Pump	-
-	-	1	5101 Cylinder Head with Valves	-
-	-	1	5299 Cylinder Block Fittings	-
-	-	1	5702 Water Pump Cover	-
-	-	1	5902 Engine Oil Cooler and Oil Filter	-
-	-	1	6512 Turbocharger	-
-	-	1	7701 Timing Gear Cover	-
-	-	1	7899 Air Compressor Mounting Plug	-
