20 Engine 6090RW239-RE564507-ETN20019

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

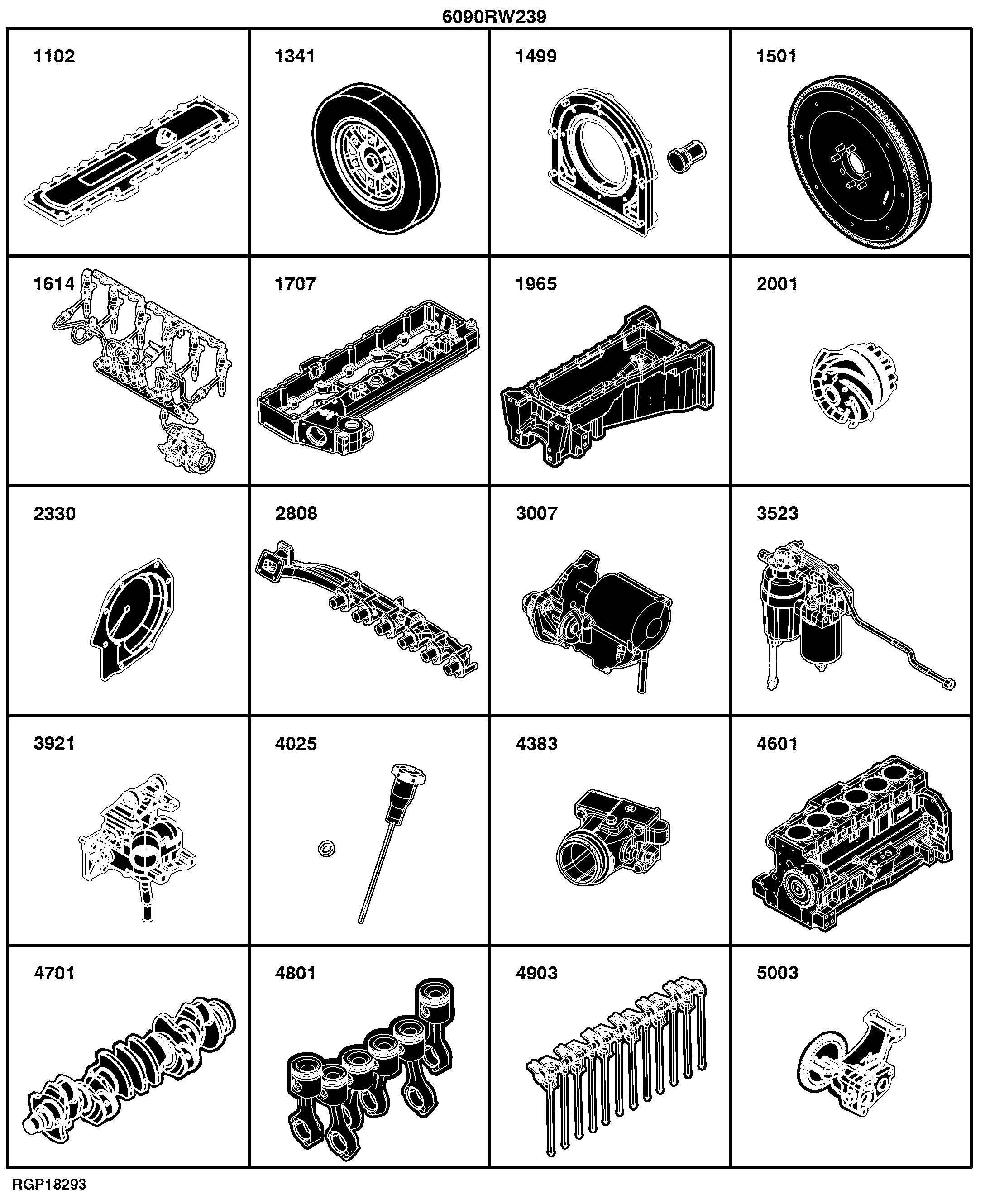

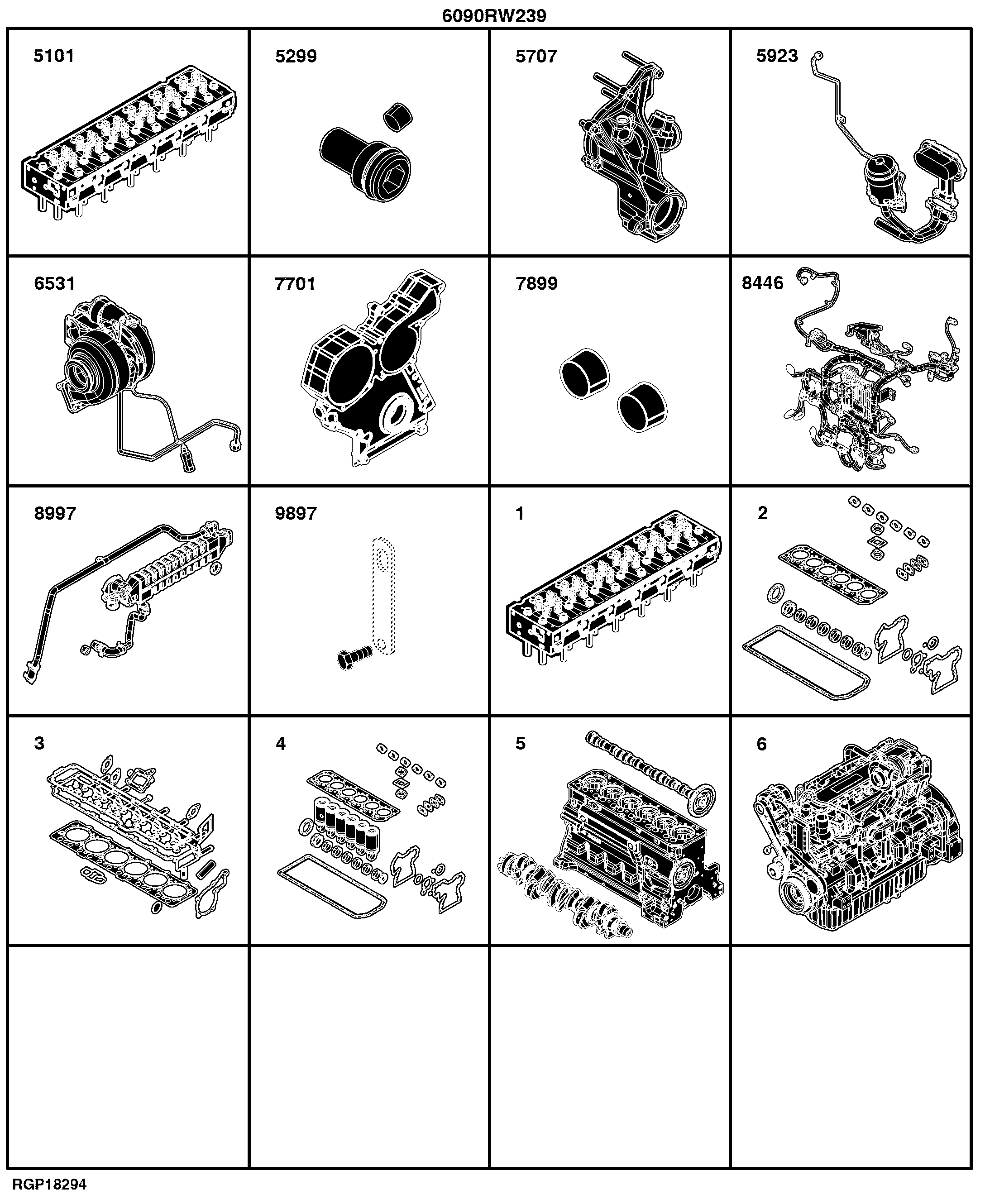

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Cylinder Head and Valves	-
-	-	1	5101 Cylinder Head with Valves	-
-	-	1	5299 Cylinder Block Fittings	-
-	-	1	5707 Water Pump Inlet	-
-	-	1	5923 Engine Oil Cooler and Oil Filter	-
-	-	1	6531 Turbocharger	-
-	-	1	7701 Timing Gear Cover	-
-	-	1	7899 Air Compressor Mounting Plug	-
-	-	1	8446 Engine Wiring Harness	-
-	-	1	8997 Exhaust Gas Recirculation Plug	-
-	-	1	9897 Lift Strap	-
-	-	1	5003 Engine Oil Pump	-
-	-	1	9901 Cylinder Head Removal Gasket Kit	-
-	-	1	9901 Engine Gasket Kit	-
-	-	1	9901 Engine Gasket Kit (1/3)	-
-	-	1	9901 Engine Gasket Kit (2/3)	-
-	-	1	9901 Engine Gasket Kit (3/3)	-
-	-	1	9901 Engine Overhaul Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	2808 Exhaust Manifold	-
-	-	1	1341 Damper	-
-	-	1	1499 Flywheel Housing	-
-	-	1	1501 Flywheel	-
-	-	1	1614 Fuel Injection System	-
-	-	1	1707 Intake Manifold	-
-	-	1	1965 Oil Pan	-
-	-	1	2001 Water Pump	-
-	-	1	2330 Fan Drive (1/2)	-
-	-	1	2330 Fan Drive (2/2)	-
-	-	1	1102 Valve Cover	-
-	-	1	3007 Starting Motor	-
-	-	1	3523 Fuel Filter	-
-	-	1	3931 Thermostat Housing	-
-	-	1	4025 Engine Oil Dipstick	-
-	-	1	4383 Starting Aid	-
-	-	1	4601 Cylinder Block	-
-	-	1	4701 Crankshaft and Bearings	-
-	-	1	4801 Connecting Rods and Pistons	-
-	-	1	4903 Valve Actuating Mechanism	-

20 Engine 6090RW239-RE564507-ETN20019
