Открытый узел

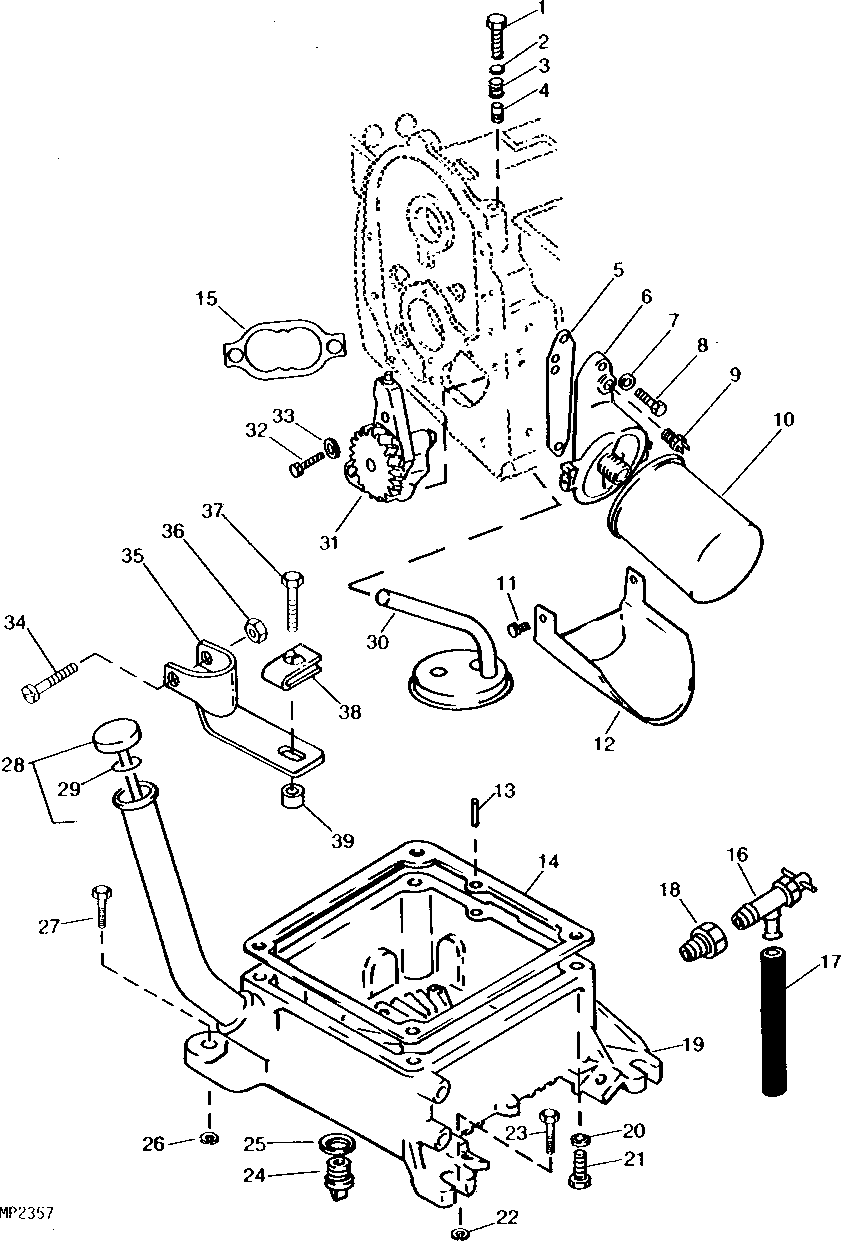

Oil Pump, Filter and Engine Base (Onan MN B43G) (222001 - 420000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2526	1	Cap Screw	3/8" X 7/8"
2	HE526-0066	1	WASHER	-
3	HE120-0140	1	Spring	-
4	HE120-0398	1	Valve	-
5	HE122-0720	1	GASKET	(SUB FOR HE122-0375)
6	HE122-0320	1	Adapter Fitting	(NLA)
7	HE526-0065	2	Washer	-
8	19H1905	2	Cap Screw	5/16" X 1"
9	HE309-0546	1	Switch	PRESSURE (SUB FOR HE309-0510)
10	AM101207	1	Oil Filter	SUB FOR HE122-0338
11	37H7	2	Screw	0.190" X 3/8"
12	HE122-0360	1	Trough	-
13	HE516-0212	2	Dowel Pin	(INCLUDED WITH OIL BASE)
14	HE102-1387	1	Gasket	(SUB FOR HE102-0693, HE102-1200, HE102-1358 AND HE102-1397)
15	HE120-0161	1	Gasket	NLA; OIL PUMP
16	AM38104	1	Drain Valve	(PARTS MARKED WITH AN (A) USE WITH HE102-1271 OIL BASE.)
17	T64688	1	Hose	(PARTS MARKED WITH AN (A) USE WITH HE102-1271 OIL BASE.) (SUB FOR M87506)
18	M86501	1	Adapter Fitting	(PARTS MARKED WITH AN (A) USE WITH HE102-1271 OIL BASE.)
19	HE102-1223	1	Base	(WITH BOTTOM DRAIN PORT) (USE WITH HE123-164701 DIPSTICK) (SUB FOR HE102-1106)
19	HE102-1271	1	Base	(WITH SIDE AND BOTTOM DRAIN PORT) (USE WITH HE123-1637 DIPSTICK)
20	12H304	4	Lock Washer	3/8"
21	19H3445	4	Cap Screw	3/8" X 3-3/4"
22	M85516	2	Lock Nut	-
23	19M7786	2	Screw	M10 X 30
24	M86873	1	Drain Plug	(ALSO ORDER M86874 GASKET) (INCLUDED ON OIL BASE) (SUB FOR HE102-0938)
25	M86874	1	Gasket	Oil Drain Plug SUB FOR HE102-0743
26	12H335	2	Lock Washer	3/8"
27	37H109	2	Screw	3/8" X 7/8"
28	HE123-164701	1	Dipstick	13.89", (USE WITH HE102-1223 BASE) (USE WITH AM125367) ; SUB FORHE123-1404
28	MIA11165	1	Dipstick	16.27", (USE WITH HE102-1271 BASE) (SUB FOR HE123-163701 OR HE123-1637)
29	HE509-0142	1	Gasket	-
30	HE120-0713	1	Oil Cup	-
31	HE120-0491	1	OIL PUMP	-
32	19H1914	2	Cap Screw	1/4" X 1"
33	12H302	2	Lock Washer	1/4"
34	37H11	1	SCREW	-
35	HE123-1612	1	Bracket	-
36	R52130	1	Lock Nut	-
37	19H1913	1	Cap Screw	5/16" X 2-1/4"
38	12H303	1	Lock Washer	5/16"
39	28H1511	1	Washer	0.364" X 0.540" X 1/4"

Oil Pump, Filter and Engine Base (Onan MN B43G) (222001 - 420000)

Нет текстового описания
