Hydrostatic Control Levers And Linkage (104041 - 120000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M112830	2	Nut	SPACER
3	M113243	2	Screw	-
4	M85076	1	Knob	-
5	M83530	1	Fastener Item	-
6	AM101457	1	Control	SPEED
7	16H658	2	Rivet	1/4" X 5/8"
8	M73956	1	Weld Nut	NLA
9	AM105621	1	BRACKET	-
10	19M7865	1	Screw	M8 X 16
11	14M7298	3	Flange Nut	M8
12	M89321	1	Round Retainer	NLA
13	M84111	2	Washer	-
14	24H1730	1	Washer	13/32" X 1-1/2" X 0.120"
15	B1147B	1	Compression Spring	-
16	M85516	1	Lock Nut	-
17	M74636	2	Nut	-
18	19M7864	3	Screw	M8 X 12
19	AM116995	1	Plate	-
20	19M7775	2	Screw	M6 X 16
21	14M7396	1	Lock Nut	M8
22	M47618	1	Compression Spring	(NLA)
23	M74613	1	Pin Fastener	PIVOT
24	19H2228	2	Cap Screw	3/8" X 4"
25	AM107987	1	Angle	-
26	M84971	1	Nut	CLAMP-ON
27	AM107986	2	Arm	NLA;Detent
28	M78733	1	Bearing	ADJUSTABLE ECCENTRIC
29	19M7184	1	Cap Screw	M8 X 55
30	19M7288	1	Cap Screw	M8 X 30
31	AM102726	1	Ball Bearing	-
32	AM107988	1	BRACKET	-
33	19M8466	1	Cap Screw	M8 X 160
34	19H1895	1	CAP SCREW	1/2" X 3/4"
35	19M7922	1	Cap Screw	M8 X 40
36	M93609	1	Arm	HYDROSTATIC CONTROL
37	M46935	1	Spring Washer	SPRING
38	AM116325	1	Link	HYDROSTATIC CONTROL
39	AM116215	1	SUPPORT	STEERING
40	M112845	1	Bracket	ANCHOR, (SUB FOR AM116327)
2A	AM116192	1	Torsional Damper	(SUB AM121646)
2B	AM121646	1	Gas Operated Cylinder	-

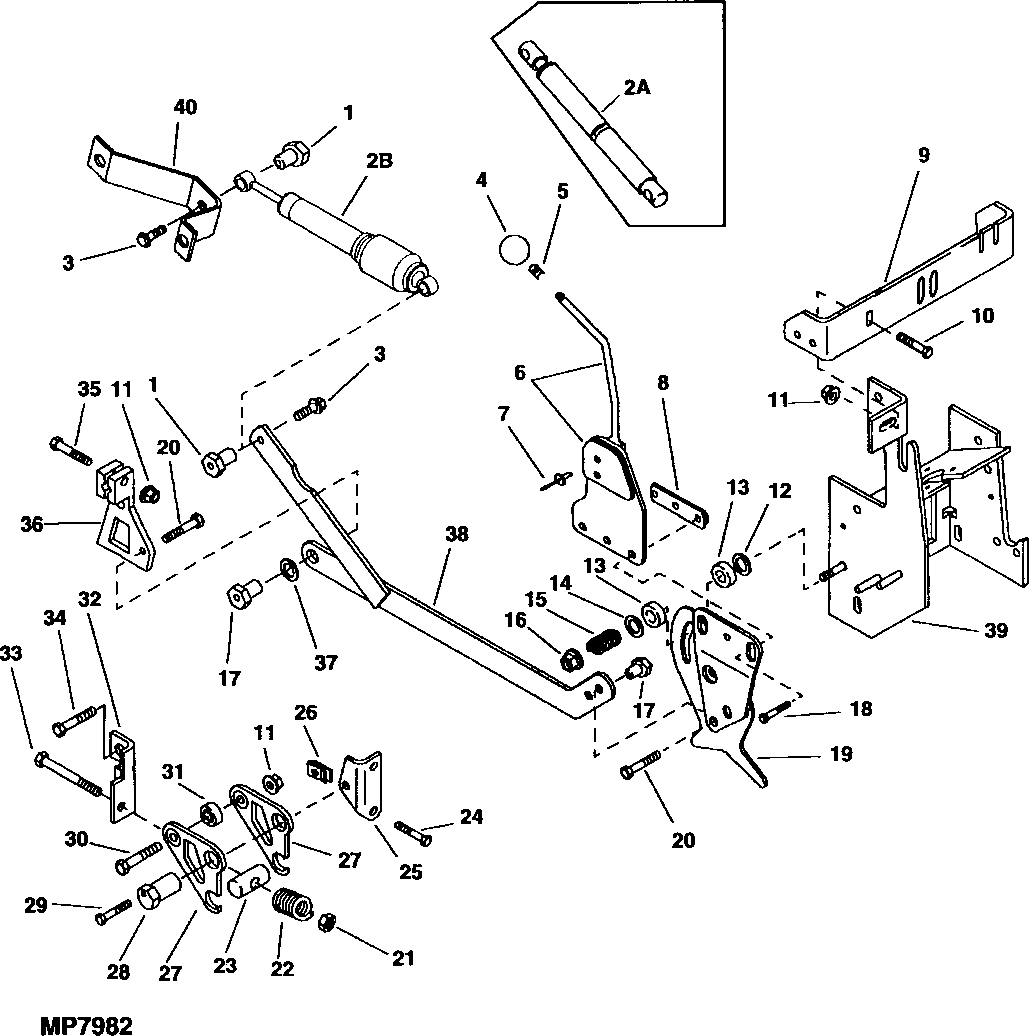

Hydrostatic Control Levers And Linkage (104041 - 120000)
