Открытый узел

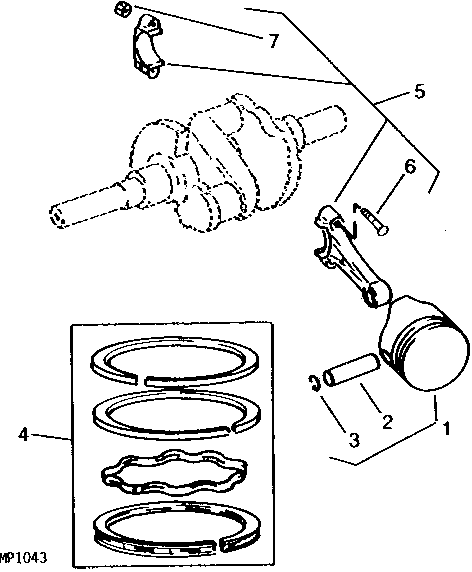

Connecting Rod and Piston (Onan MN B43G) (222001 - 420000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	HE112-0264	1	Piston Replacement Kit	STD, INCLUDES HE113-0310
1	AM39510	1	Piston Replacement Kit	OS = .254 mm (.010"), ORDER AM118196
1	AM118196	1	Piston Replacement Kit	OS = .254 mm (.010"), INCLUDES AM118199
1	AM39511	1	Piston Replacement Kit	OS = .508 mm (.020"), ORDER AM118197
1	AM118197	1	Piston Replacement Kit	OS = .508 mm (.020"), INCLUDES AM118200
1	AM39512	1	Piston Replacement Kit	OS = .762 mm (.030"), ORDER AM118198
1	AM118198	1	Piston Replacement Kit	OS = .762 mm (.030"), NLA; ALSO INCLUDES SET OF RINGS
1	HE112-0186	1	Piston Replacement Kit	STD, ORDER HE112-0264
2	HE112-0229	2	Piston Pin	NLA; SUB FOR HE112-0122
3	R33282	4	Snap Ring	NLA; SUB FOR HE518-0311
4	AM39515	1	Piston Ring Kit	(TOP RING 1.969 MM (.0775") THICK) OS = .254 mm (.010")
4	AM118201	1	Piston Ring Kit	(TOP RING 1.478 MM (.0582") THICK) OS = .762 mm (.030")
4	AM119138	1	Piston Ring Kit	(TOP RING 1.969 MM (.0775") THICK) OS = .762 mm (.030"), (SUB FOR AM39517)
4	AM118200	1	Piston Ring Kit	(TOP RING 1.478 MM (.0582") THICK) OS = .508 mm (.020")
4	AM119137	1	Piston Ring Kit	(TOP RING 1.969 MM (.0775") THICK) OS = .508 mm (.020"), NLA
4	AM118199	1	Piston Ring Kit	(TOP RING 1.478 MM (.0582") THICK) OS = .254 mm (.010")
4	HE113-0310	1	Piston Ring Kit	(TOP RING 1.478 MM (.0582") THICK) STD
4	HE113-0314	1	Piston Ring Kit	(TOP RING 1.969 MM (.0775") THICK) STD, ORDER HE112-0264; SUB FOR HE113-0189
5	HE114-0394	2	Connecting Rod	STD, SUB FOR HE114-0300
5	AM39522	2	CONNECTING ROD	US = .254 mm (.010")
5	AM39523	2	CONNECTING ROD	US = .508 mm (.020")
5	AM39524	2	CONNECTING ROD	US = .762 mm (.030")
6	HE114-0240	4	Bolt	-
7	M63051	4	Lock Nut	-

Connecting Rod and Piston (Onan MN B43G) (222001 - 420000)

Нет текстового описания
