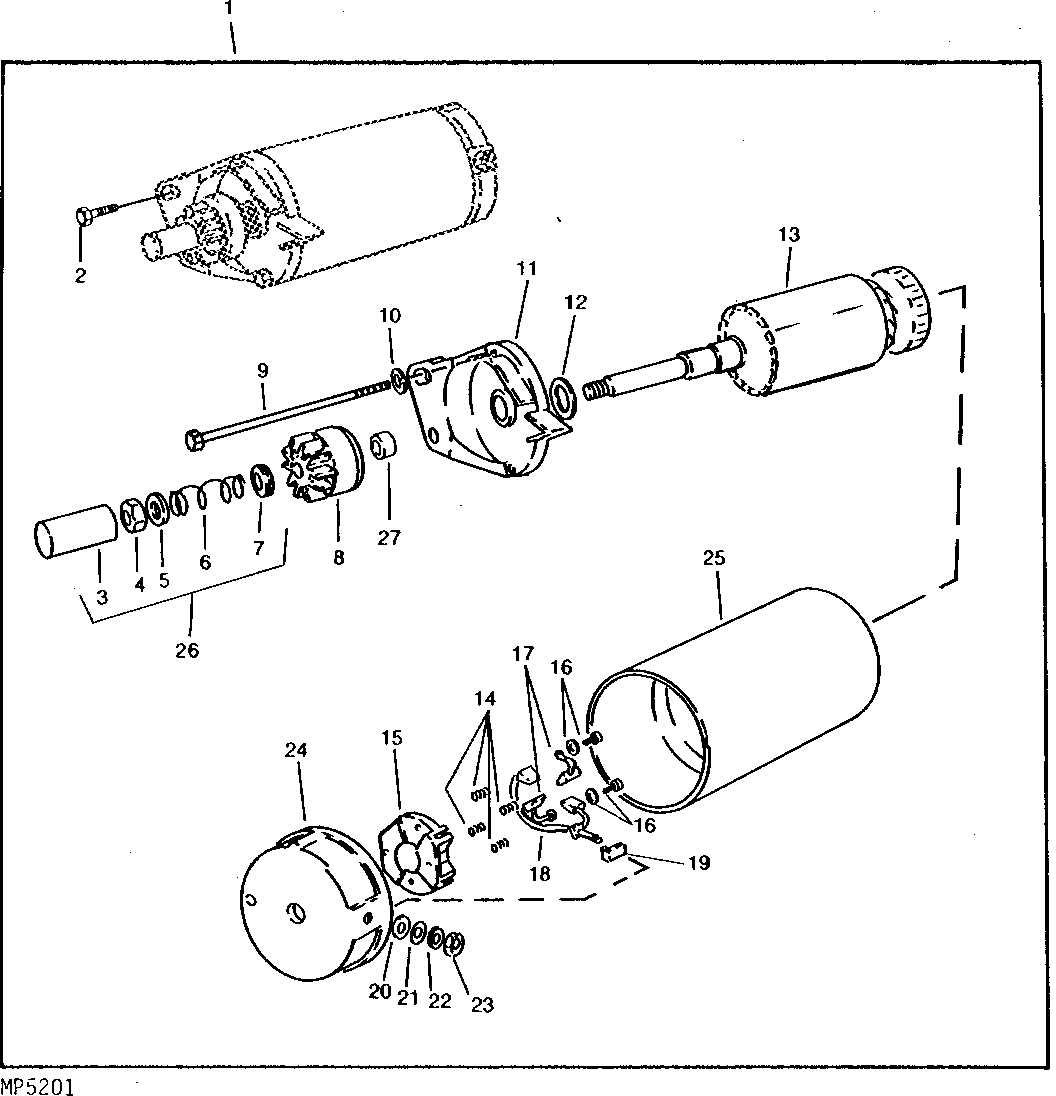

STARTER MOTOR (ONAN M.N. P218G) (BENDIX TYPE) [C01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	HE191-1828	1	STARTER MOTOR	-
2	19H3467	2	Screw	5/16" X 1", (SUB FOR 19H1849 AND HE526-0122)
3	-	1	Part 3	(C)
4	-	1	Part 4	(C)
5	-	1	Part 5	(C)
6	-	1	Part 6	(C)
7	-	1	Part 7	(C)
8	HE191-1156	1	DRIVE	-
9	HE191-1048	2	Cap Screw	-
10	12H302	2	Lock Washer	1/4"
11	-	1	Part 11	STARTER DRIVE END ASSEMBLY CAP (SUB HE191-1828)
12	HE191-1038	1	Thrust Washer	-
13	HE191-1039	1	Armature	-
14	-	4	Part 14	(A) (B)
15	-	1	Part 15	(B)
16	-	2	Part 16	(B)
17	-	2	Part 17	(A) (B)
18	-	1	Part 18	(A) (B)
19	-	1	Part 19	(B)
20	-	1	Part 20	(B)
21	-	1	Part 21	(B)
22	-	1	Part 22	(B)
23	-	1	Part 23	(B)
24	HE191-1532	1	Cap	CAP ASSEMBLY COMMUTATOR (INCLUDES PARTS MARKED WITH A (B))
25	-	1	Part 25	(SUB HE191-1828 STARTER)
25	HE191-1533	1	KIT	BRUSH AND SPRING (INCLUDES PARTS MARKED WITH AN (A))
26	HE191-1359	1	COVER	(INCLUDES PARTS MARKED WITH A (C))
27	HE191-1534	1	SEAL	-

STARTER MOTOR (ONAN M.N. P218G) (BENDIX TYPE) [C01]
