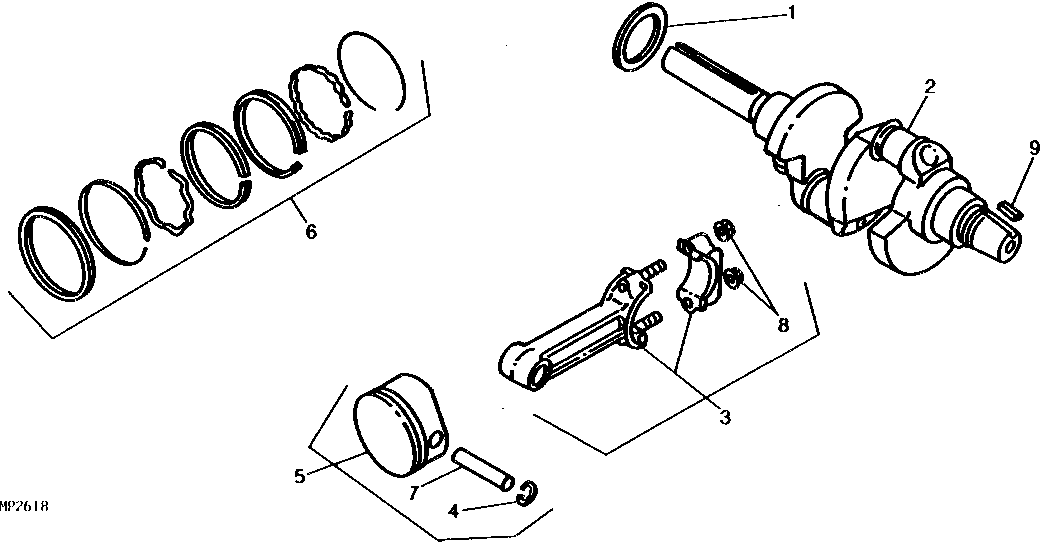

PISTON, CONNECTING ROD, AND CRANKSHAFT [A14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M83032	1	THRUST WASHER	(.128/.131 THICK)
1	M83033	1	Thrust Washer	(.137/.140 THICK)
1	M83031	1	THRUST WASHER	(.119/.122 THICK)
2	AM38012	1	CRANKSHAFT	-
2	AM38854	1	CRANKSHAFT	-
2	AM100427	1	CRANKSHAFT	(KT17QS24301)
3	AM100423	2	CONNECTING ROD	STD, (SUB FOR AM38695 OR AM38023) (ENG. S.N. -15089861)
3	AM104118	2	CONNECTING ROD	STD, (ENG. S.N. 15089862- )
3	AM100424	2	CONNECTING ROD	.010 U.S. (SUB FOR AM38024 OR AM39312) (ENG. S.N. -15089861)
3	AM104954	2	CONNECTING ROD	.010 U.S. (ENG. S.N. 15089862- )
4	M42013	4	RETAINER	-
5	AM104117	2	PISTON	.003 O.S. (ENG.S.N. 15089862- )
5	AM104957	2	PISTON	.030 O.S. (ENG. S.N. 15089862- )
5	AM102944	2	PISTON	.030 O.S. (SUB FOR AM38031 OR AM38694) (ENG. S.N. -15089861)
5	AM104956	2	PISTON	.020 O.S. (ENG. S.N. 15089862- )
5	AM102943	2	PISTON	.020 O.S. (SUB FOR AM38030 OR AM38693) (ENG. S.N. -15089861)
5	AM104955	2	PISTON	.010 O.S. (ENG. S.N. 15089862- )
5	AM102942	2	PISTON	.010 O.S. (SUB FOR AM38029 OR AM38692) (ENG. S.N. -15089861)
5	AM102941	2	PISTON	.003 O.S. (SUB FOR AM100445) ENG. S.N. -15089861)
5	AM104116	2	PISTON	STD (ENG. S.N. (15089862- )
5	AM102940	2	PISTON	STD, (SUB FOR AM38028 OR AM38691) (ENG. S.N. -15089861)
6	AM102951	2	PISTON RING KIT	STD. (SUB FOR AM38032)
6	AM103293	2	RING	.010 O.S. (SUB FOR AM38033)
6	AM102394	2	RING	.020 O.S. (SUB FOR AM38034)
6	AM38035	2	RING	.030 O.S. (ENG. S.N. -15089861)
6	AM104958	2	RING	.030 O.S. (ENG. S.N. 15089862- )
7	-	2	Part 27	(INCLUDED WITH PISTON)
8	-	2	Part 28	(SUB ROD ASSY. ACCORDING TO SIZE AND ENG. SN)
9	-	1	Part 29	3/16" SQ. (CUT FROM H64373)
