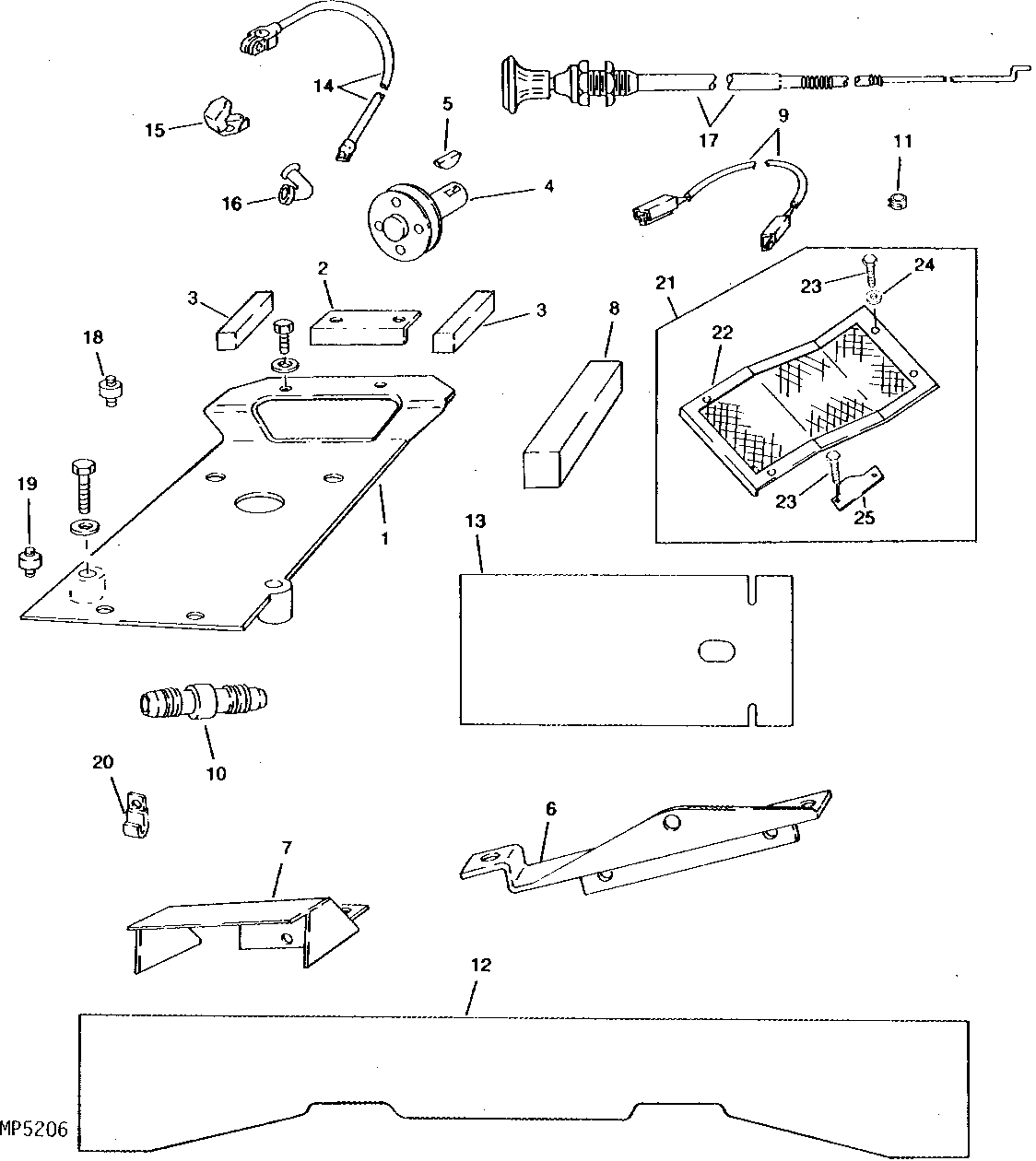

ENGINE INSTALLATION KIT AND MISC. PARTS IN 18HP ONAN ENGINE REPOWER KIT (CONTINUED) [C10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
14	M81568	1	BOLT	(FOR POSITIVE BATTERY CABLE TERMINAL)
14	M81569	1	NUT	(FOR POSITIVE BATTERY CABLE TERMINAL)
14	12H356	1	Lock Washer	1/4", (FOR STARTER (+) TERMINAL)
14	14H850	1	NUT	1/4", (FOR STARTER (+) TERMINAL)
14	AM103069	1	Battery Cable	POSITIVE (POSITIVE TERMINAL TO STARTER SOLENOID)
15	M86133	1	Cover	(COVER FOR POSITIVE BATTERY TERMINAL)
16	M73221	1	Boot	(FOR POSITIVE BATTERY CABLE TO SOLENOID)
17	AM105000	1	PUSH PULL CABLE	42.40" CHOKE CABLE
18	M75109	2	RUBBER MOUNT	FRONT FENDERDECK
18	14H785	2	Nut	5/16", (FOR FRONT FENDERDECK RUBBER MOUNTS)
18	24H1224	4	Washer	11/32" X 1" X 1/16", (USE ON FRONT RUBBER MOUNT MOUNTING STUDS)
19	M75109	2	RUBBER MOUNT	REAR FENDERDECK
19	14H871	4	Nut	5/16", (USE (2) FOR FRONT FENDERDECK RUBBER MOUNTS AND (2) FOR REAR FENDERDECK RUBBER MOUNTS)
19	M89051	2	Nut	(FOR REAR FENDERDECK RUBBER MOUNTS)
19	24H1224	2	Washer	11/32" X 1" X 1/16", (USE ON REAR RUBBER MOUNT MOUNTING STUDS)
20	N10010	3	Clip	(USE (1) TO RETAIN WIRING HARNESS TO TOP OF BLOWER HOUSING AND USE (2) TO RETAIN FUEL HOSE TO TRACTOR FRAME)
20	-	1	Part 17	1/4" I.D. X 22" LONG (CUT FROM M63270)
21	AM38823	1	KIT	GRASS SCREEN AND COVER (INCLUDES PARTS MARKED WITH A (B))
22	M83901	1	SCREEN	(B)
23	37H51	6	Screw	(B) 1/4" X 1/2"
24	24H1720	4	Washer	(B) 1/4" X 3/4" X 0.060"
25	M84307	1	PLATE	(B) BLOWER HOUSING

ENGINE INSTALLATION KIT AND MISC. PARTS IN 18HP ONAN ENGINE REPOWER KIT (CONTINUED) [C10]
