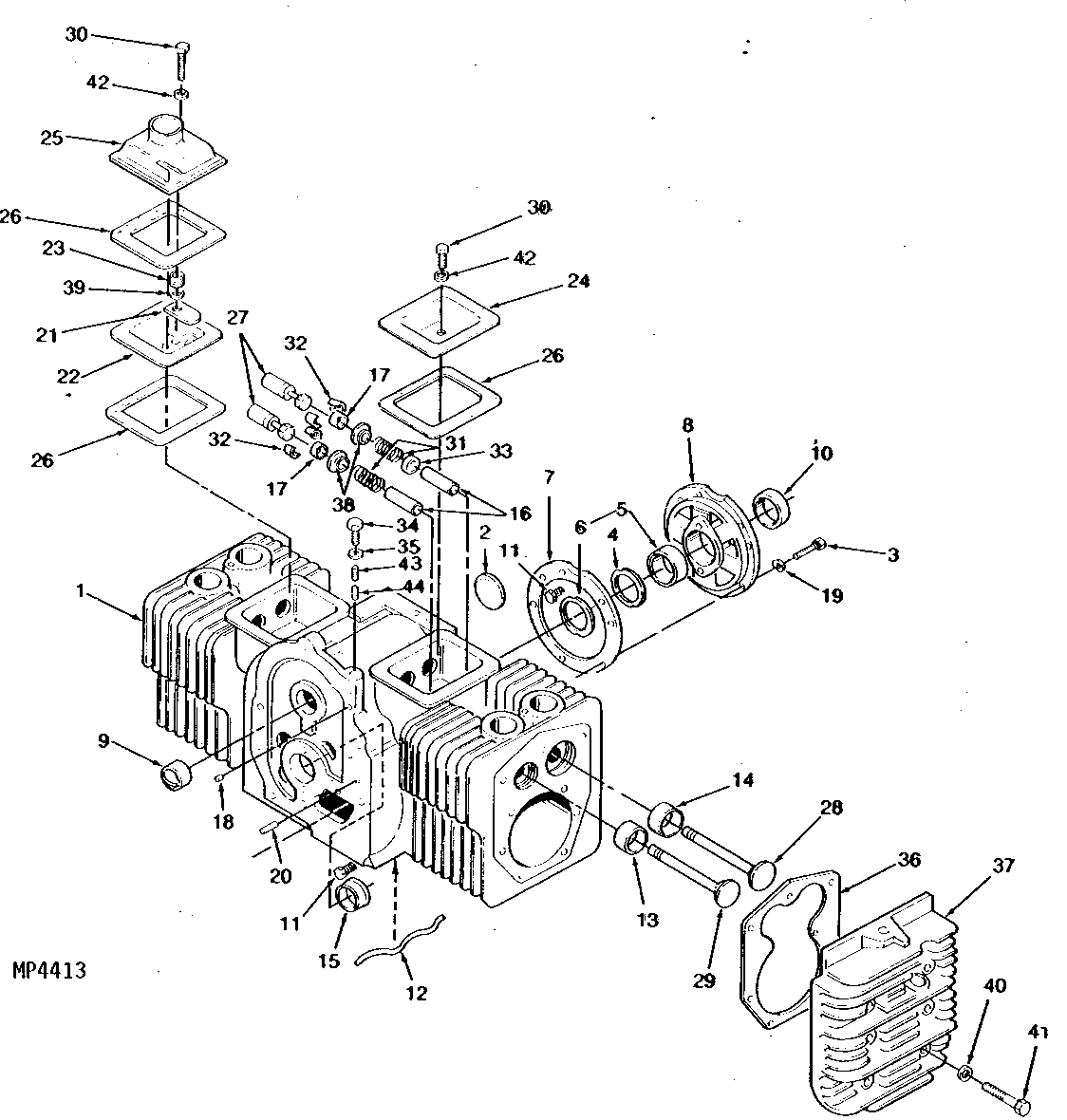

CYLINDER BLOCK AND ENGINE (ONAN M.N. P218G) [B04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	NOT SERVICED SEPARATELY, ORDER AM104701
2	HE517-0048	1	PLUG	CAMSHAFT OPENING
3	19H1732	5	Cap Screw	3/8" X 1-1/4"
4	HE104-0776	1	SHIM	.127MM, (.005")
5	HE101-0450	1	BEARING	STANDARD
5	HE10241	1	BEARING	.050MM, (.002") UNDERSIZE
5	HE10242	1	BEARING	.254MM, (.010") UNDERSIZE
5	HE10243	1	BEARING	.508MM, (.020") UNDERSIZE
5	HE10244	1	BEARING	.762MM, (.030") UNDERSIZE
6	HE104-0575	2	THRUST WASHER	THRUST
7	HE101-0415	1	GASKET	BEARING PLATE
8	HE101-0439	1	Plate	BEARING, REAR
9	HE101-0405	2	BEARING	CAMSHAFT
10	HE509-0041	1	Seal	CRANKSHAFT, REAR
11	HE516-0072	4	Pin Fastener	DRIVE, BEARING STOP
12	HE120-0735	1	Tube	OIL
13	HE110-1824	2	Valve Seat Insert	VALVE SEAT, EXHAUST, STANDARD
14	HE110-0197	2	Valve Seat Insert	VALVE SEAT, INTAKE, STANDARD
15	HE101-0432	1	BEARING	CRANKSHAFT (FRONT) STANDARD
15	HE10245	1	BEARING	.050MM, (.002") UNDERSIZE
15	HE10246	1	BEARING	.254MM, (.010") UNDERSIZE
15	HE10247	1	BEARING	.508MM, (.020") UNDERSIZE
15	HE10248	1	BEARING	.762MM, (.030") UNDERSIZE
16	HE110-3527	2	Guide	EXHAUST
16	HE110-3526	2	Guide	INTAKE
17	HE110-3510	4	Cap	VALVE
18	HE517-0067	1	Plug	CORE HOLE
19	12H304	5	Lock Washer	3/8"
20	HE516-0141	2	SPRING PIN	GEAR COVER ALIGNMENT
21	HE123-1175	1	Tube	BREATHER VALVE
22	HE123-1173	1	DEFLECTOR	BREATHER VALVE
23	HE123-1174	1	Spring	BREATHER VALVE
24	HE110-1879	1	Valve Cover	VALVE, R.H.
25	HE110-2274	1	Valve Cover	VALVE, L.H.
26	HE110-1921	3	Gasket	VALVE COVER
27	HE115-0006	4	TAPPET	STANDARD
27	AM39508	4	Tappet	.050MM, (.002") O.S.
27	HE10344	4	TAPPET	.127MM, (.005") O.S.
28	HE110-3479	2	Intake Valve	-
29	HE110-3480	2	Exhaust Valve	-
30	19H2102	2	Cap Screw	1/4" X 1-3/4"
31	HE110-3485	4	Spring	VALVE
32	HE110-3511	8	Lock	VALVE SPRING
33	HE509-0210	2	Seal	VALVE INTAKE
34	HE801-0049	1	Cap Screw	-
35	HE526-0066	1	WASHER	COPPER
36	HE110-3181	2	Engine Cylinder Head Gasket	CYLINDER HEAD
37	HE110-3509	1	Cylinder Head	RIGHT SIDE
37	HE110-3508	1	Cylinder Head	LEFT SIDE
38	HE110-3487	4	Washer	VALVE SPRING RETAINING
39	24H1287	1	Washer	9/32" X 5/8" X 0.065"
40	HE526-0122	18	Washer	-
41	HE800-0572	10	Cap Screw	2" LONG
41	HE800-0571	8	Cap Screw	1-5/8" LONG
42	HE526-0063	2	WASHER	COPPER
43	HE120-0140	1	Spring	BYPASS VALVE
44	HE120-0398	1	Valve	BYPASS VALVE
..	HE168-0183	1	GASKET KIT	VALVE GRIND GASKET
..	HE168-0182	1	GASKET KIT	COMPLETE OVERHAUL GASKET
..	AM104701	1	ENGINE	-
..	AM104600	1	SHORT BLOCK ASSEMBLY	-
..	BM16724	1	KIT	18HP ONAN ENGINE REPOWER KIT (ONAN ENGINE REPLACEMENT KIT FOR 17HP KOHLER ENGINE)
