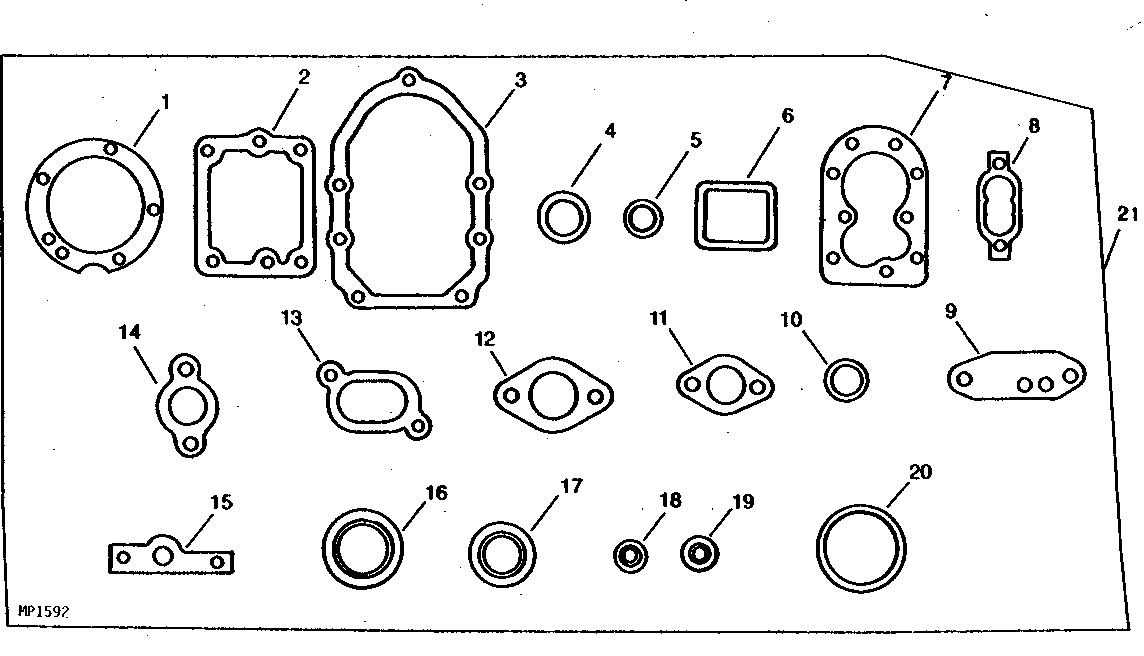

CARBON REMOVAL AND ENGINE GASKET KITS (ONAN M.N. P218G) [B13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	HE101-0415	1	GASKET	BEARING PLATE
2	HE102-1200	1	GASKET	OIL BASE
3	HE103-0408	1	Gasket	GEARCASE
4	M86874	1	Gasket	OIL DRAIN
5	HE110-3136	2	Gasket	VALVE GUIDE (A)
6	HE110-1921	3	Gasket	VALVE COVER (A)
7	HE110-3181	2	Engine Cylinder Head Gasket	CYLINDER HEAD (A)
8	HE120-0161	1	Gasket	OIL PUMP
9	HE122-0321	1	GASKET	(18 HP) OIL FILTER ADAPTER
9	HE122-0375	1	GASKET	(16HP) OIL FILTER ADAPTER
10	HE509-0142	1	Gasket	OIL FILL
11	HE145-0438	1	Gasket	CARBURETOR FLANGE
12	HE154-0733	1	GASKET	CARBURETOR MOUNT
13	PT7820	2	Gasket	INTAKE (A)
14	HE154-1725	2	GASKET	EXHAUST
15	HE160-1150	1	GASKET	BREAKER BOX
16	HE509-0008	1	Seal	GOVERNOR SHAFT
17	HE509-0040	1	Seal	GEAR COVER
18	HE509-0041	1	Seal	CRANK SHAFT
19	PT7928	2	SEAL	VALVE GUIDE
20	HE509-0145	1	Seal	AIR CLEANER (A)
21	HE168-0182	1	GASKET KIT	ENGINE
..	HE168-0183	1	GASKET KIT	CARBON REMOVAL (INCLUDES PARTS MARKED WITH AN (A))

CARBON REMOVAL AND ENGINE GASKET KITS (ONAN M.N. P218G) [B13]

Нет текстового описания
