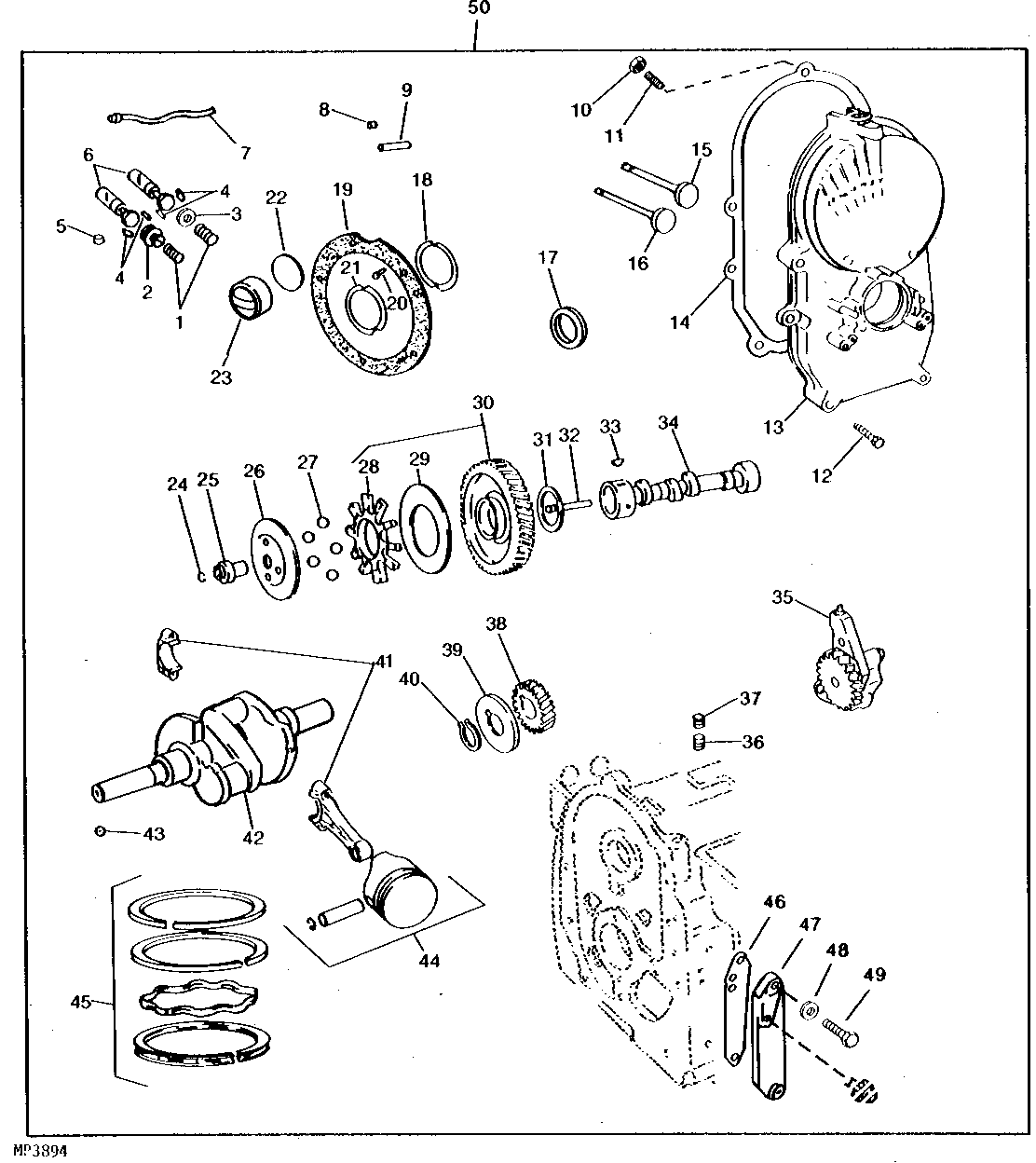

SHORT BLOCK AND ENGINE (ONAN M.N. B43E) (S.N. 285001-420000) [A18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	4	Part 1	(ORDER AM118301)
2	-	4	Part 2	(ORDER AM118301)
3	HE110-0893	2	WASHER	(SUB FOR PT7770)
4	HE110-0639	8	LOCK	-
5	HE517-0120	1	Plug	-
6	HE115-0006	4	TAPPET	-
7	HE120-0735	1	Tube	-
8	HE517-0067	1	Plug	-
9	HE516-0141	2	SPRING PIN	-
10	14H785	1	Nut	5/16"
11	HE520-0933	1	Stud	-
12	19H1875	4	Cap Screw	5/16" X 1-3/4"
13	HE103-0791	1	Gear Case	(SUB FOR HE103-0701)
14	HE103-0810	1	Gasket	GEARCASE, (SUB FOR HE103-0408 AND HE103-0798)
15	HE110-2368	2	Intake Valve	-
16	HE110-1955	2	Exhaust Valve	-
17	HE509-0041	1	Seal	-
18	HE104-0776	1	SHIM	.005"
19	HE101-0809	1	Gasket	BEARING PLATE, (SUB FOR HE101-0415, HE101-0773 AND HE101-0782)
20	HE516-0072	2	Pin Fastener	-
21	HE104-0575	2	THRUST WASHER	-
22	HE517-0048	1	PLUG	-
23	HE101-0405	2	BEARING	CAMSHAFT
24	HE150-0078	1	SNAP RING	-
25	HE150-1519	1	HUB	-
26	HE150-1520	1	Disk	-
27	HE510-0015	5	BALL	-
28	-	1	Part 28	(ORDER HE105-0700)
29	-	1	Part 29	(ORDER HE105-0700)
30	HE105-0700	1	Gear	(SUB FOR HE105-0332)
31	HE105-0541	2	THRUST WASHER	-
32	-	1	Part 32	(ORDER HE105-0637 CAMSHAFT)
33	26H70	2	Shaft Key	1/8" X 1/2"
34	HE105-0637	1	CAMSHAFT	(SUB FOR HE105-0376)
35	HE120-0491	1	OIL PUMP	-
36	HE120-0398	1	Valve	-
37	HE120-0140	1	Spring	-
38	HE104-0032	1	Gear	CRANKSHAFT
39	HE104-0043	1	WASHER	-
40	U11030	1	Snap Ring	(SUB FOR HE518-0014)
41	HE114-0300	2	CONNECTING ROD	-
42	HE104-1441	1	CRANKSHAFT	(PTO END IS 2 5/8" LONG) (SUB HE104-1699 CRANKSHAFT KIT)
43	HE517-0082	1	BALL	-
44	HE112-0186	2	Piston Replacement Kit	(SUB HE112-0264) (ALSO INCLUDES SET OF RINGS)
45	HE113-0314	2	Piston Ring Kit	(SUB FOR HE113-0189)
46	HE122-0720	1	GASKET	(SUB FOR HE122-0375)
47	HE122-0438	1	PAD	-
48	HE526-0065	2	Washer	-
49	19H1905	2	Cap Screw	5/16" X 1"
50	HE110-3385	1	SHORT BLOCK ASSEMBLY	(A) (B) (NO LONGER AVAILABLE) (SUB AM118174)
..	AM100001	1	ENGINE	(A) (B) (NOT AVAILABLE) (SUB AM118174 SHORT BLOCK OR SEE FOOTNOTE 'C')
..	AM100968	1	ENGINE	(A) (B) (NOT AVAILABLE) (SUB AM118174 SHORT BLOCK OR SEE FOOTNOTE 'C')
..	AM102578	1	ENGINE	(A) (B) (NOT AVAILABLE) (SUB AM118174 SHORT BLOCK OR SUB AM121837 P218G ENGINE WITH AM102988 DRIVESHAFT)
