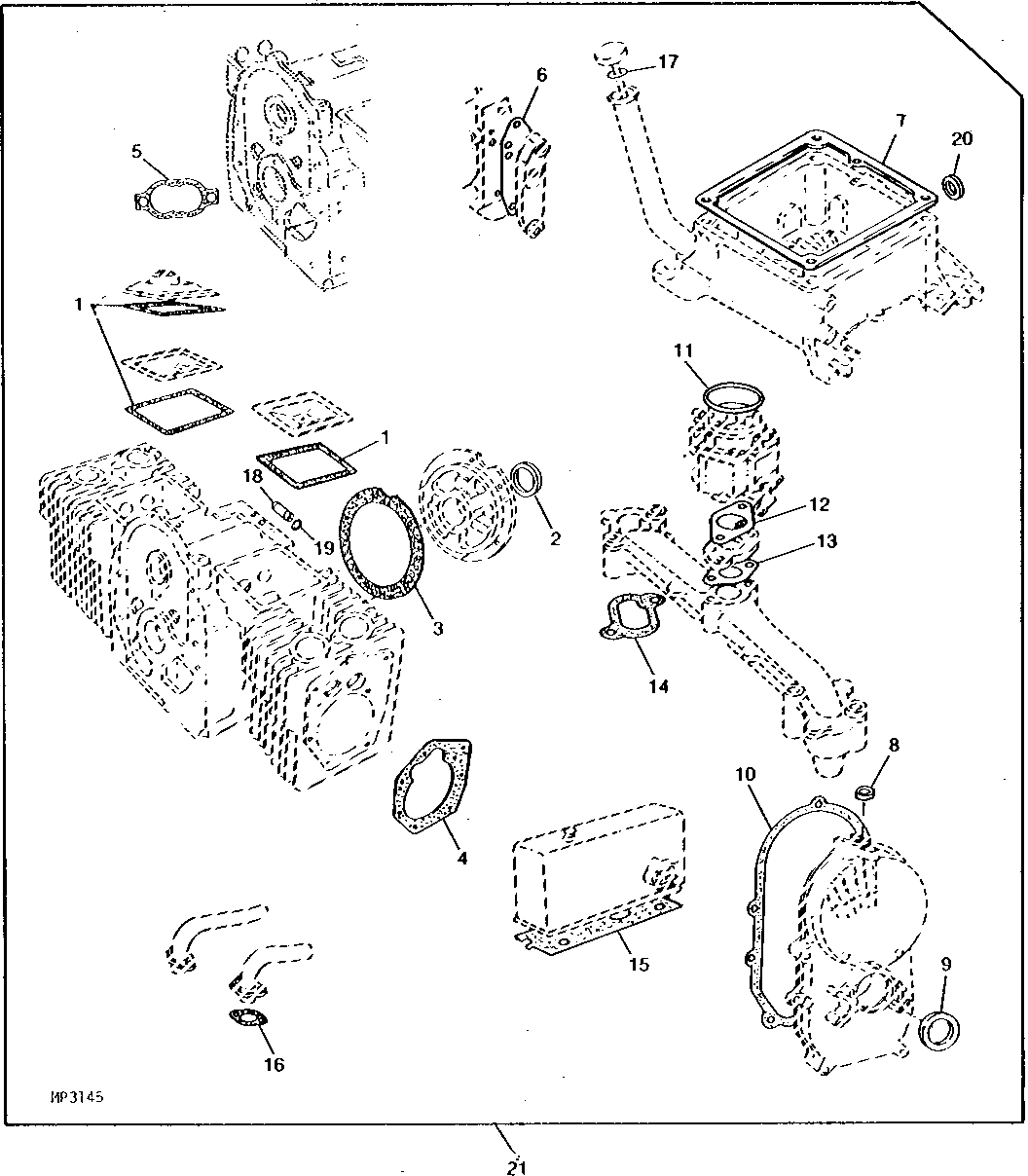

ENGINE GASKET KIT (ONAN M.N. B43E) (S.N. 285001-420000) [A20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	HE110-3709	3	Gasket	VALVE COVER, (SUB FOR HE110-1921)
2	HE509-0041	1	Seal	OIL-CRANKSHAFT
3	HE101-0809	1	Gasket	BEARING PLATE, (SUB FOR HE101-0415, HE101-0773 AND HE101-0782)
4	HE110-3181	2	Engine Cylinder Head Gasket	CYLINDER HEAD
5	HE120-0161	1	Gasket	OIL PUMP
6	HE122-0774	1	Gasket	OIL FILTER ADAPTER, (SUB FOR HE122-0321, HE122-0375 AND HE122-0720)
7	HE102-1387	1	Gasket	OIL BASE, (SUB FOR HE102-1200, HE102-1358 AND HE102-1397)
8	HE509-0008	1	Seal	OIL
9	HE509-0040	1	Seal	GEAR COVER
10	HE103-0810	1	Gasket	GEARCASE MOUNTING, (SUB FOR HE103-0408 AND HE103-0798)
11	HE509-0145	1	Seal	AIR CLEANER O-RING
12	HE154-0733	1	GASKET	CARBURETOR MOUNTING
13	HE145-0438	1	Gasket	CARBURETOR FLANGE
14	HE154-2495	2	Gasket	INTAKE, (SUB FOR HE154-1744 AND PT7820)
15	HE160-1368	1	Gasket	BREAKER BOX (SUB FOR HE160-1150)
16	HE154-2746	2	Gasket	EXHAUST ADAPTER (SUB FOR HE154-1725)
17	HE509-0142	1	Gasket	OIL FILL CAP
18	HE110-3604	2	Seal	(SUB FOR PT7928)
19	HE110-3136	2	Gasket	INTAKE VALVE GUIDE
20	M86874	1	Gasket	OIL DRAIN PLUG (SUB FOR HE102-0743)
21	HE168-0165	1	Gasket Kit	OVERHAUL (SUB HE168-0187)

ENGINE GASKET KIT (ONAN M.N. B43E) (S.N. 285001-420000) [A20]
