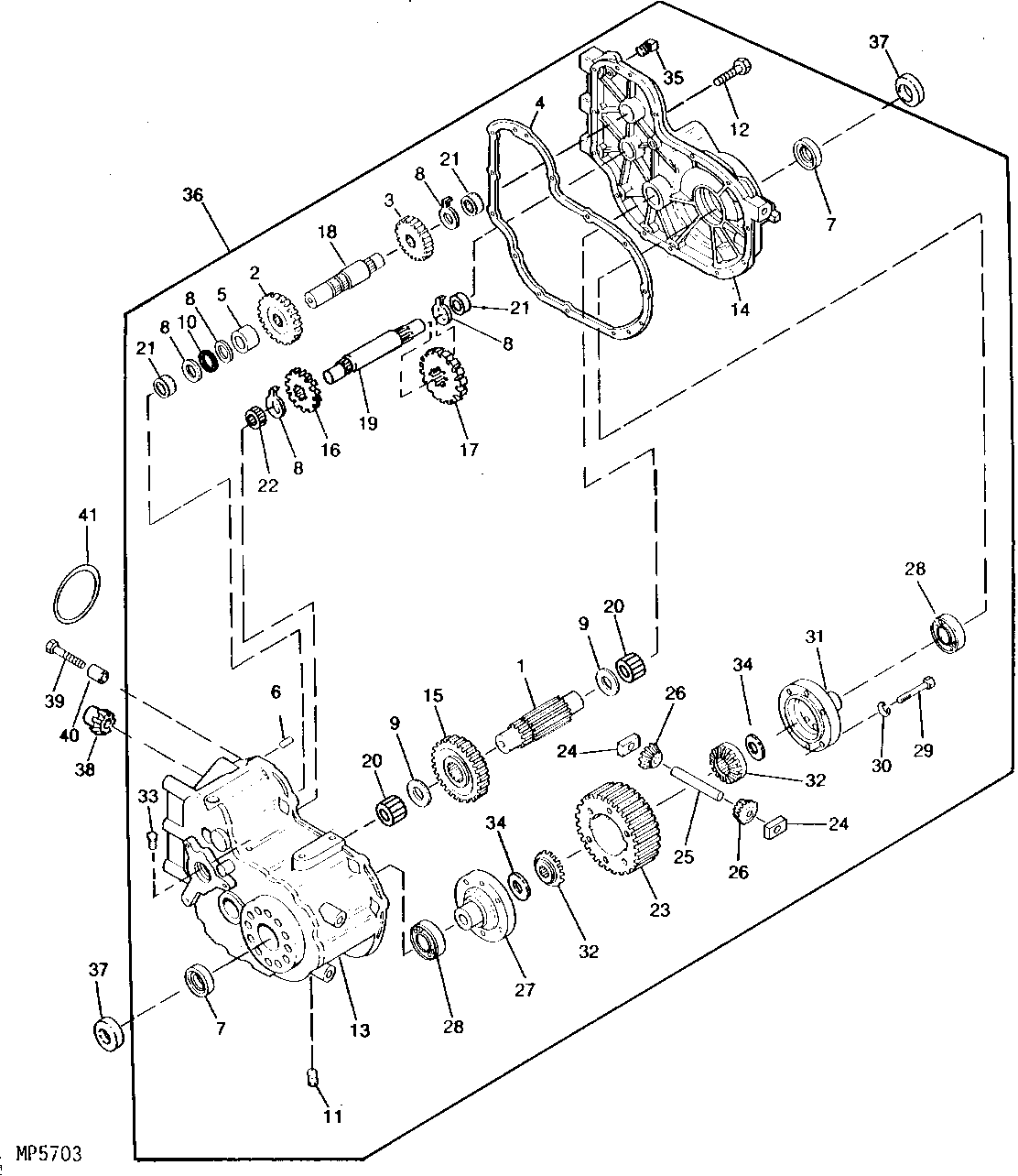

DIFFERENTIAL AXLE [D20]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M48945	1	Pinion	OUTPUT
2	M48923	1	Bevel Gear	(30T)
3	M48946	1	Gear	(16T)
4	M94095	1	GASKET	(SUB FOR M86055)
5	M84731	1	Spacer	-
6	M41028	2	PIN	-
7	M48934	2	Seal	-
8	JD9809	2	Thrust Bearing	(.060 THICK)
8	-	3	Part 9	TABBED (.060 THICK) (ORDER AM107097 THRUST WASHER KIT) (SUB FOR (6) JD9812 (.030 THICK))
9	-	2	Part 10	(.060 THICK) (ORDER AM107097 THRUST WASHER KIT) (SUB FOR (2) JD9896 THIS APPLICATION OR (4) M75110 (.030 THICK))
10	JD8856	1	Needle Bearing	-
11	M41129	1	Drain Plug	MAGNETIC
12	37H101	13	Screw	5/16" X 1" SELF-TAPPING
13	AM39633	1	CASE	(INCLUDES (1) AM35569, (1) JD8881, (1) JD9863 AND (1) 19H2931)
14	AM106862	1	COVER	(INCLUDES (1) AM35569 AND (2) JD8881) (SUB FOR AM39604)
15	M85582	1	GEAR	OUTPUT (33T)
16	M85583	1	SPUR GEAR	(17T)
17	M85584	1	Spur Gear	(27T)
18	M85585	1	Countershaft	-
19	M85586	1	Shaft	BRAKE
20	AM35569	2	Needle Bearing	-
21	JD8881	3	Needle Bearing	-
22	JD9863	1	Needle Bearing	-
23	M85552	1	Gear	RING
24	M85578	2	Support	-
25	M85553	1	Pin	-
26	M85554	2	Pinion	BEVEL
27	M85555	1	Holder	(SUB M75150 AND ALSO ORDER (1) M75151 WASHER UNLESS PREVIOUSLY INSTALLED)
27	M75150	1	Holder	-
28	JD8514	2	Ball Bearing	-
29	M85556	6	Screw	-
30	M83814	6	Washer	-
31	M85587	1	HOLDER	(SUB M75152 AND ALSO ORDER (1) M75151 WASHER UNLESS PREVIOUSLY INSTALLED)
31	M75152	1	Holder	-
32	M85559	2	Bevel Gear	-
33	19H2931	1	Screw	1/4" X 0.620", HS, HEAD MARKED 12.9
34	M75151	2	Thrust Washer	-
35	15H638	2	Pipe Plug	-
36	AM105158	1	AXLE, WITH DIFFERENTIAL	(SUB FOR AM39164) (SUB AM107074)
36	AM107074	1	TRANSMISSION	(SUB FOR AM105983)
37	M85577	2	Washer	-
38	M85135	1	Bevel Gear	-
39	19H2228	4	Cap Screw	3/8" X 4"
40	M84879	4	Spacer	-
41	U44496	1	O-Ring	-
..	AM107097	1	Washer Kit	THRUST WASHER (INCLUDES (3) TABBED WASHERS AND (2) THRUST WASHERS)
