Открытый узел

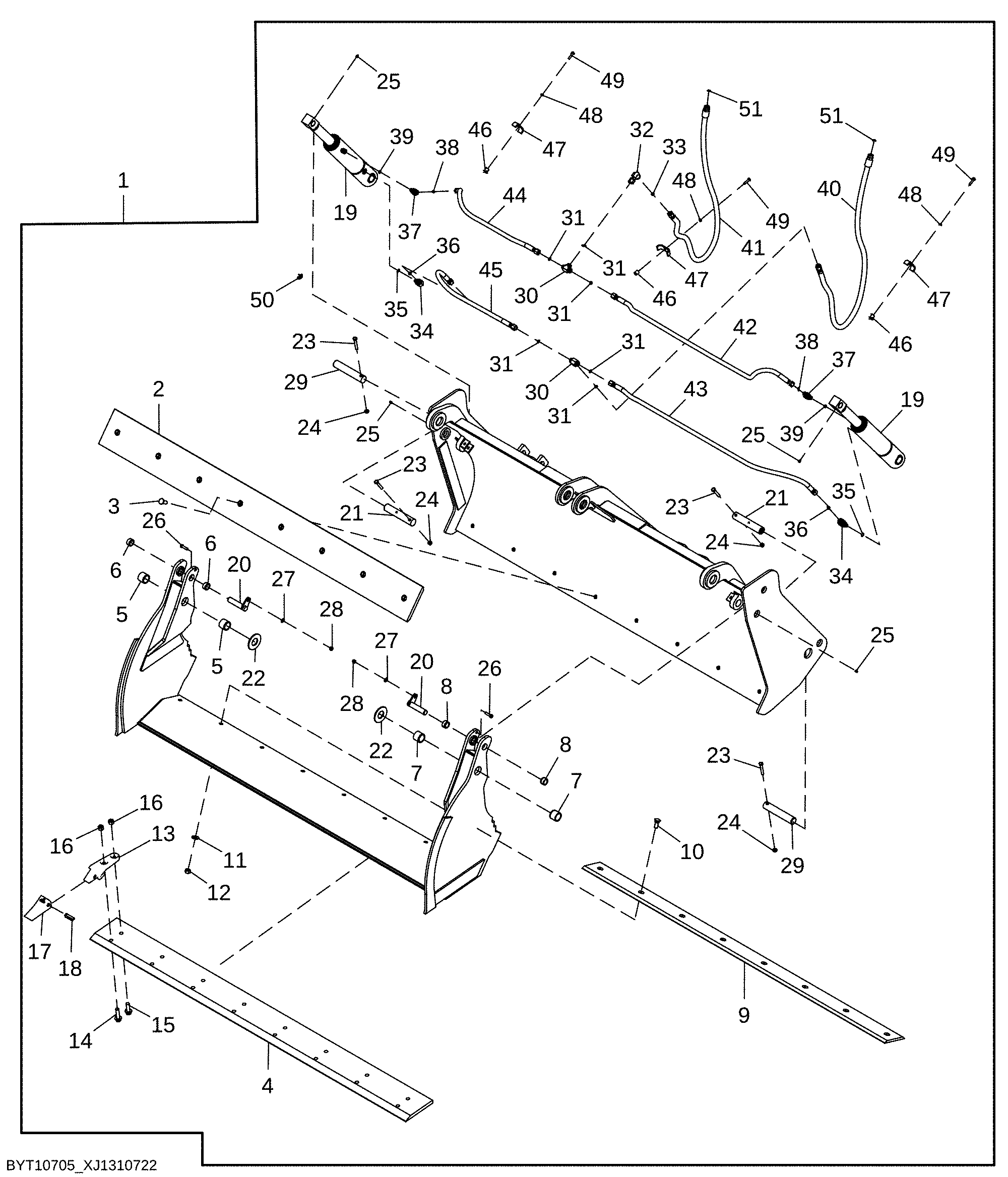

Multipurpose Flip Fork Ready Bucket Kit with Teeth 0.96 m³ 92 in

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT10705	1	Multi-Purpose Bucket	WHOLE GOODS
2	T143802	1	Cutting Edge	-
3	09H1776	8	Bolt	5/8" X 1-3/4"
4	T128538	1	Cutting Edge	-
5	T128533	2	Bushing	-
6	T166433	2	Bushing	-
7	T128533	2	Bushing	-
8	T166433	2	Bushing	-
9	T403798	1	Cutting Edge	-
10	09H1776	8	Bolt	5/8" X 1-3/4"
11	24M7241	16	Washer	17 X 34 X 4 mm
12	14H1039	16	Nut	5/8"
13	T221X230	8	Bucket Tooth Adapter	-
14	19M7824	8	Screw	M16 X 60
15	19M7794	8	Screw	M16 X 50
16	14M7276	16	Nut	M16
17	T230SP	8	Tooth	-
18	T23P	8	Pin	-
19	AHC15426	2	Hydraulic Cylinder	Multi-Purpose Loader Bucket Cylinder Components on Separate Page
20	AT425236	2	Pin	-
21	T328756	2	Pin	-
22	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
23	19H2106	4	Cap Screw	7/16" X 2-3/4"
24	K40006	4	Lock Nut	-
25	JD7844	4	Lubrication Fitting	-
26	19H1800	2	Cap Screw	3/8" X 1-1/2"
27	24M7239	2	Washer	10.700 X 21 X 2.500 mm
28	T54568	2	Lock Nut	-
29	T352251	2	Pin	-
30	38H5031	2	Tee Fitting	-
31	T77857	6	O-Ring	-
32	38H5107	1	Elbow Fitting	-
33	T77857	1	O-Ring	-
34	38H5036	2	Elbow Fitting	-
35	51M7042	2	O-Ring	13.300 X 2.200 mm
36	T77857	2	O-Ring	-
37	38H5154	2	Elbow Fitting	-
38	T77613	2	O-Ring	-
39	51M7042	2	O-Ring	13.300 X 2.200 mm
40	AT448168	1	Hydraulic Hose	Loader Bucket Cylinder Hose Line to Hydraulic Oil Line, INCLUDES T77932
41	AT448168	1	Hydraulic Hose	Loader Bucket Cylinder Hose Line to Hydraulic Oil Line, INCLUDES T77932
42	AT493818	1	Hydraulic Hose	Loader Bucket Cylinder Hose Line
43	AT493819	1	Hydraulic Hose	Loader Bucket Cylinder Hose Line
44	AT493820	1	Hydraulic Hose	Loader Bucket Cylinder Hose Line
45	AT493821	1	Hydraulic Hose	Loader Bucket Cylinder Hose Line
46	28H3383	7	Bushing	0.493" X 0.675" X 3/4"
47	T27022	7	Clamp	-
48	24M3739	7	Washer	8 X 15 X 2 mm
49	19M8008	7	Cap Screw	M8 X 35
50	R44302	1	Tie Band	-
51	T77932	2	O-Ring	-

Multipurpose Flip Fork Ready Bucket Kit with Teeth 0.96 m³ 92 in

Нет текстового описания
