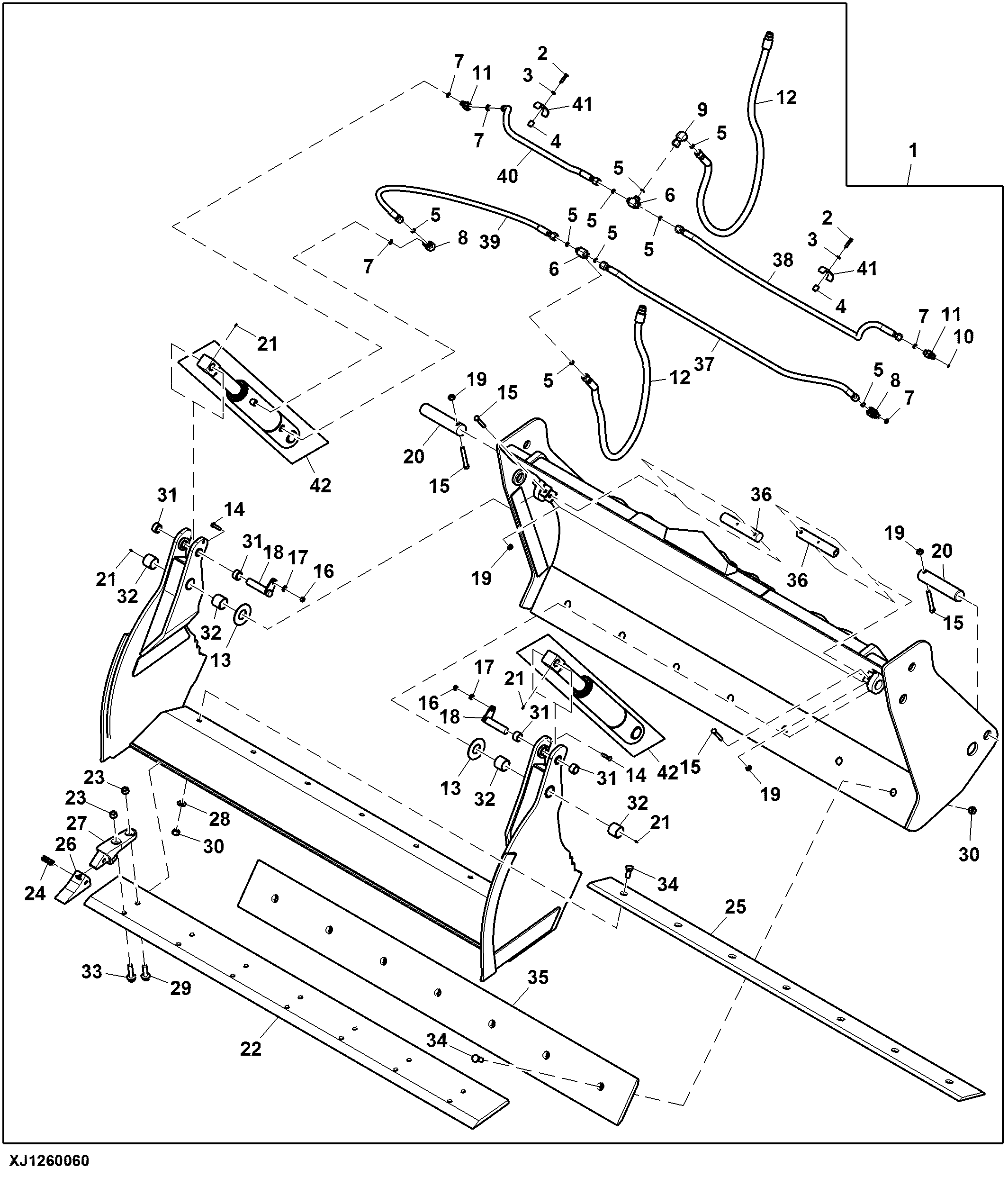

Multipurpose Bucket Kit with Teeth 0.89 m³ 86.00 in

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT10702	1	Multi-Purpose Bucket	Whole Goods
2	19M8008	7	Cap Screw	M8 X 35
3	24M3739	7	Washer	8 X 15 X 2 mm
4	28H3383	7	Bushing	0.493" X 0.675" X 3/4"
5	T77857	9	O-Ring	-
6	38H5031	2	Tee Fitting	-
7	51M7042	4	O-Ring	13.300 X 2.200 mm
8	38H5036	2	Elbow Fitting	-
9	38H5107	1	Elbow Fitting	-
10	T77613	2	O-Ring	-
11	38H5154	2	Elbow Fitting	-
12	T77932	1	O-Ring	-
12	AT448168	2	Hydraulic Hose	To Lift Arm Assembly, INCLUDES T77932
13	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
14	19H1800	2	Cap Screw	3/8" X 1-1/2"
15	19H2106	4	Cap Screw	7/16" X 2-3/4"
16	T54568	2	Lock Nut	-
17	24M7239	2	Washer	10.700 X 21 X 2.500 mm
18	AT425236	2	Pin	-
19	K40006	4	Lock Nut	-
20	T352251	2	Pin	-
21	JD7844	4	Lubrication Fitting	-
22	T166455	1	Cutting Edge	-
23	14M7276	14	Nut	M16
24	T23P	7	Pin	-
25	T403797	1	Cutting Edge	-
26	T230SP	7	Tooth	-
27	T221X230	7	Bucket Tooth Adapter	-
28	24M7241	14	Washer	17 X 34 X 4 mm
29	19M7794	7	Screw	M16 X 50
30	14H1039	14	Nut	5/8"
31	T166433	4	Bushing	-
32	T128533	4	Bushing	-
33	19M7824	7	Screw	M16 X 60
34	09H1776	14	Bolt	5/8" X 1-3/4"
35	T166454	1	Cutting Edge	Auxillary Cutting Edge
36	T328756	2	Pin	-
37	AT490313	1	Hydraulic Hose	LGTH = 1380 mm, Fabricate To Loader Bucket Cylinder Head End
38	AT490315	1	Hydraulic Hose	LGTH = 1160 mm, Fabricate To Loader Bucket Cylinder Tail End
39	AT490316	1	Hydraulic Hose	LGTH = 845 mm, Fabricate
40	AT490317	1	Hydraulic Hose	LGTH = 665 mm, Fabricate
41	T27022	7	Clamp	-
42	AHC15426	2	Hydraulic Cylinder	Components on Separate Page

Multipurpose Bucket Kit with Teeth 0.89 m³ 86.00 in
