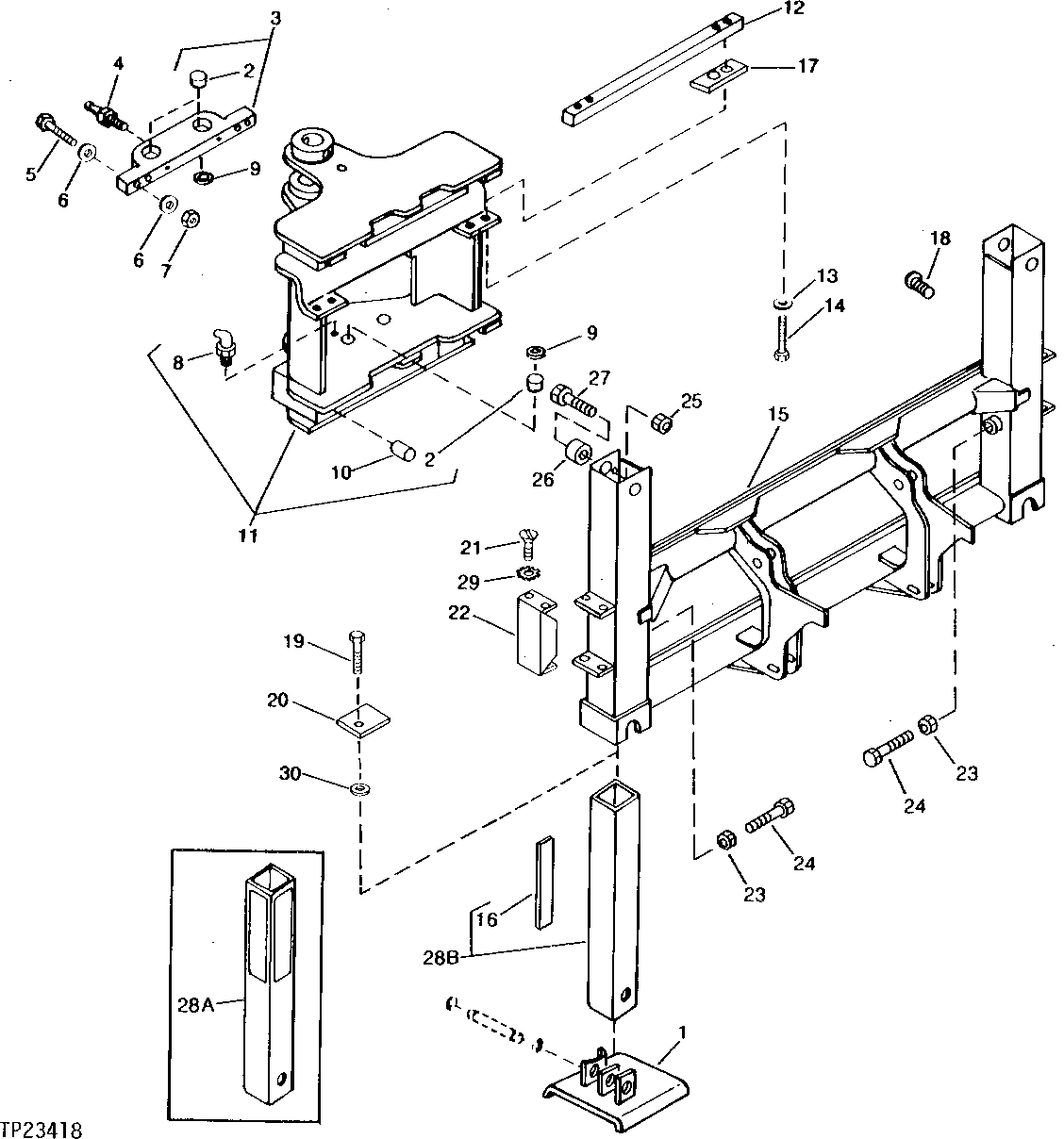

STABILIZER AND SLIDING FRAME [02C14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT135086	1	STABILIZER FOOT	R.H. (NOT ILLUSTRATED) (SUB FOR AT114577 AND AT118545) (ALSO ORDER AT133235)
1	AT113983	1	STABILIZER FOOT	(R.H.) (SUB FOR AT113830) (SUB AT135086) (ALSO ORDER AT133235) (NOT ILLUSTRATED)
1	AT118544	1	STABILIZER FOOT	(L.H.) (SUB FOR AT114576 AND AT118544) (ALSO ORDER AT133235)
1	AT113982	1	STABILIZER FOOT	(L.H.) (SUB FOR AT113831) (SUB AT135085) (ALSO ORDER AT133235)
2	T70723	4	Bushing	-
3	AT106569	1	PLATE	-
3	AT118604	1	Plate	-
4	JD7797	2	Lubrication Fitting	-
5	19M7969	4	Cap Screw	M20 X 110
5	19M7907	4	Screw	M20 X 140
6	24M7188	8	WASHER	22 X 37 X 3 MM
7	14M7277	4	Nut	M20
8	JD7806	2	Lubrication Fitting	-
9	R33516	2	WASHER	-
9	T79849	2	BUSHING	-
10	T67856	4	Bushing	-
11	AT106584	1	FRAME	-
12	T106066	1	Bar	-
13	24M7241	4	Washer	17 X 34 X 4 MM
14	19M7369	4	Cap Screw	M16 X 60
15	-	1	Part 21	( AT114138 - NO LONGER AVAILABLE)
15	AT156700	1	FRAME	(SUB FOR AT118549)
16	T118844	4	REINFORCEMENT	-
17	T106398	2	Strap	(.125" THICK)
17	T106399	2	Strap	(.042" THICK)
18	T77832	2	Self-Locking Screw	LICENSE PLATE LIGHT
19	19M7557	2	Cap Screw	M10 X 16
20	T113306	2	STRAP	-
20	T126013	2	Strap	-
21	19M7774	8	Screw	M6 X 12
22	AT113993	2	GUARD	-
23	14M7315	2	Nut	M20
24	19M8002	2	Cap Screw	M20 X 55
25	14M7337	1	Lock Nut	M10
26	T118913	1	BUMPER	-
27	19M7835	1	Screw	M10 X 35
29	12M7081	2	Lock Washer	6.400 MM
30	28H1517	2	Washer	0.493" X 0.675" X 1/4"
28A	AT106523	2	STABILIZER	-
28B	AT114623	1	STABILIZER	-

STABILIZER AND SLIDING FRAME [02C14]

Нет текстового описания
