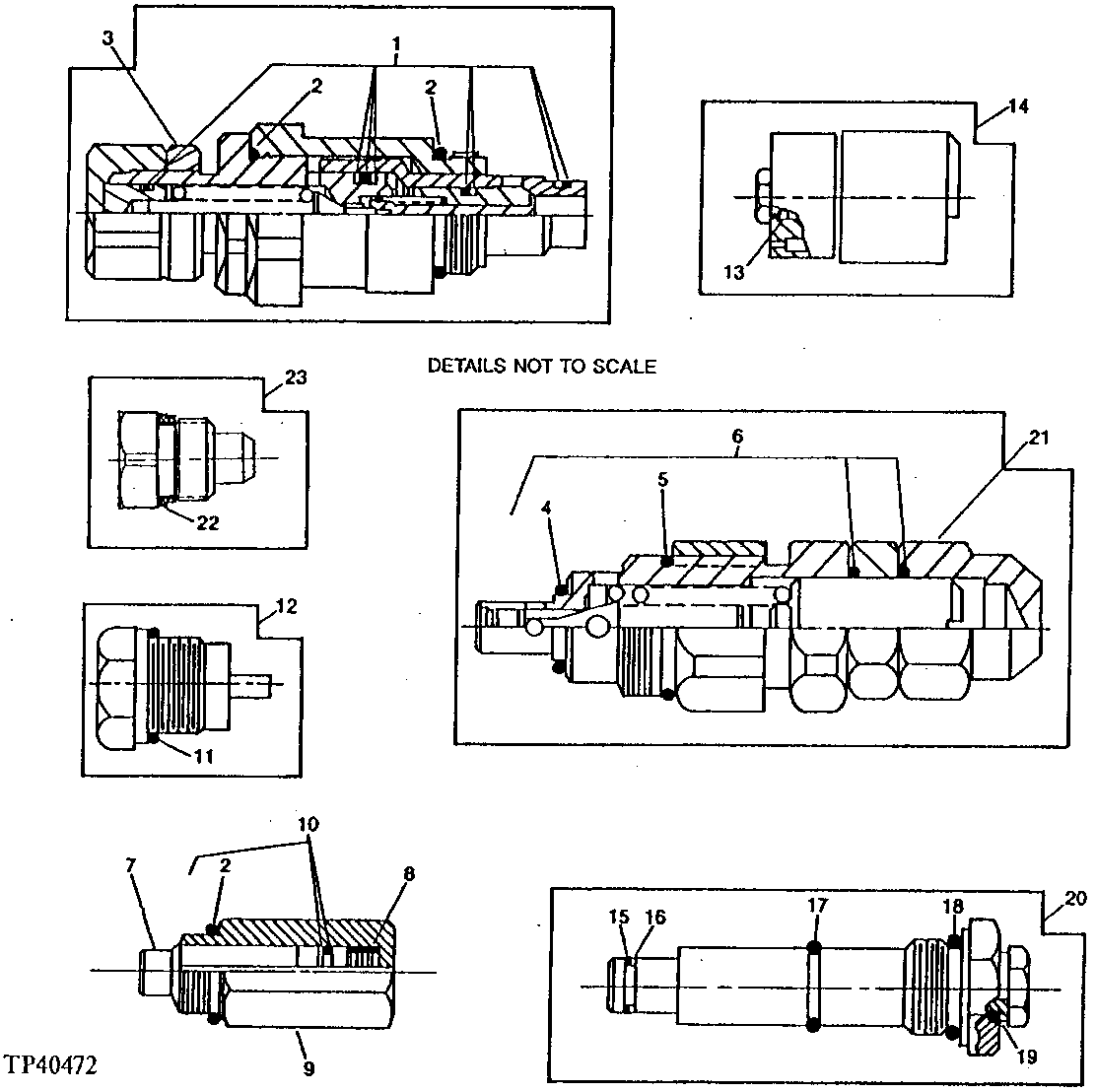

LOADER RELIEF VALVES AND KITS (HUSCO) [02B21]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT314539	1	Seal Kit	1 1/16 INCH RELIEF VALVE SEAL KIT, (SUB FOR AT178359 AND AT189413)
1	AT314538	1	Seal Kit	7/8 INCH RELIEF VALVE SEAL KIT, (SUB FOR AT83171, AT168676, AT178359 AND AT189413)
2	T118681	3	O-Ring	-
3	AT118707	1	PRESSURE RELIEF VALVE	(LOADER RELIEF, SYSTEM) (2500 PSI) (LOWER INLET) (SUB FOR AT114557) (FOR USE WITH VICKER'S HYDRAULIC PUMP)
3	AT117647	1	PRESSURE RELIEF VALVE	(SYSTEM RELIEF) (2600 PSI) (FOR USE WITH SUNDSTRAND HYDRAULIC PUMP)
3	AT114555	1	RELIEF VALVE	(3200 PSI) (WITH ANTI-CAVITATION) (LOWER BUCKET) (SUB AT114683, T118681, T118866 AND T118867)
4	R63548	1	O-Ring	-
5	R47151	5	O-Ring	-
6	AT114534	1	Seal Kit	(SEAL REPAIR) (RELIEF VALVE) (WITHOUT ANTI-CAVITATION)
6	AT314538	1	Seal Kit	7/8 INCH RELIEF VALVE SEAL KIT, (SUB FOR AT165834, AT168676, AT178359 AND AT189413)
6	AT314539	1	Seal Kit	1 1/16 INCH RELIEF VALVE SEAL KIT, (SUB FOR AT178359 AND AT189413)
7	AT114682	2	Valve Kit	(SERVICE) (2750 PSI) (UPPER AND LOWER SWING)
7	AT114684	1	Valve Kit	(SERVICE) (1875 PSI) (UPPER BOOM)
7	AT114683	1	KIT	(3200 PSI) (LOWER BUCKET)
8	T118867	3	Spring	-
9	T118866	3	Housing	-
10	AT314538	1	Seal Kit	(SEAL REPAIR) (SUB FOR AT114530, AT168676, AT178359 AND AT189413) (ANTI-CAVITATION)
11	U12547	1	O-Ring	(LOADER RELIEF)
12	AT114551	1	PRESSURE RELIEF VALVE	(LOADER RELIEF) (ANTI-CAVITATION) (LOWER BOOM)
13	R79060	1	O-Ring	(SUB FOR R47158)
14	AT114543	1	PRESSURE RELIEF VALVE	(LOWER PRESSURE) (UPPER INLET) (BACKHOE ONLY)
15	T118690	1	O-Ring	-
16	T118691	1	BACK-UP RING	-
17	T40308	1	O-Ring	-
18	R47150	1	O-Ring	-
19	T118689	1	O-Ring	-
20	AT114544	1	SELF-OPERATING VALVE	(UNLOADING VALVE) (UPPER INLET) (BACKHOE ONLY)
21	AT114538	1	Pressure Relief Valve	(2750 PSI) (LOWER CROWD)
21	AT114547	1	Pressure Relief Valve	(3200 PSI) (UPPER BUCKET)
22	T183757	1	Seal	(SUB FOR T81544 AND T141872) (WITH DIGMORE DIPPERSTICK)
23	AT83174	1	Fitting Plug	(WITH DIGMORE DIPPERSTICK)

LOADER RELIEF VALVES AND KITS (HUSCO) [02B21]

Нет текстового описания
