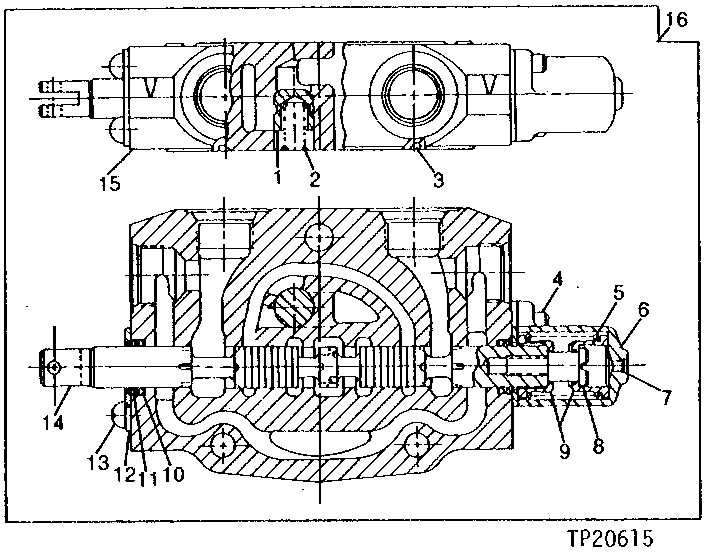

BACKHOE CONTROL VALVE (BOOM, BUCKET, CROWD AND AUXILIARY SECTIONS) (HUSCO) [02E25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T81538	1	Poppet	-
2	T81539	1	Spring	-
3	T118685	1	O-Ring	-
4	19H3554	2	Screw	1/4" X 0.880", (SUB FOR T65036)
5	T118683	1	Spring	(USE WITH AT114537, AT135930, AT114498, AT118684 OR AT135931)
5	T134881	1	Spring	(USE WITH AT158019 OR AT158020)
6	T118808	1	Cap	-
7	T118799	1	Filter	-
8	T81541	1	Screw	-
9	T81540	2	Retainer	-
10	-	2	Part 11	(K)
11	-	2	Part 12	(K)
12	T81524	2	Plate	-
13	21H1018	2	SCREW	1/4" X 3/8"
14	-	1	Part 15	IF AT135931 IS SUBBED AT135932 MUST BE ORDERED)
15	-	1	Part 16	IF AT135931 IS SUBBED AT135932 MUST BE ORDERED)
16	AT114537	1	VALVE	(CROWD AND BUCKET SECTIONS) (USE IF AVAILABLE)
16	AT135930	1	VALVE	(CROWD AND BUCKET SECTION) (USE IF AVAILABLE) (SUB FOR AT114537)
16	AT158017	1	SPOOL VALVE	(AUXILIARY SECTION) (ALSO ORDER (2) AT83174 PLUG WHEN A DIGMOR DIPPERSTICK IS INSTALLED) (SUB FOR AT114498)
16	AT118684	1	VALVE	(BOOM SECTIONS) (USE IF AVAILABLE)
16	AT135931	1	VALVE	(BOOM SECTION) (SUB FOR AT118684, ALSO ORDER AT135932)
16	AT158019	1	SPOOL VALVE	(CROWD AND BUCKET SECTION) (SUB FOR AT135930)
16	AT158020	1	SPOOL VALVE	(BOOM SECTION) (SUB FOR AT135931)
