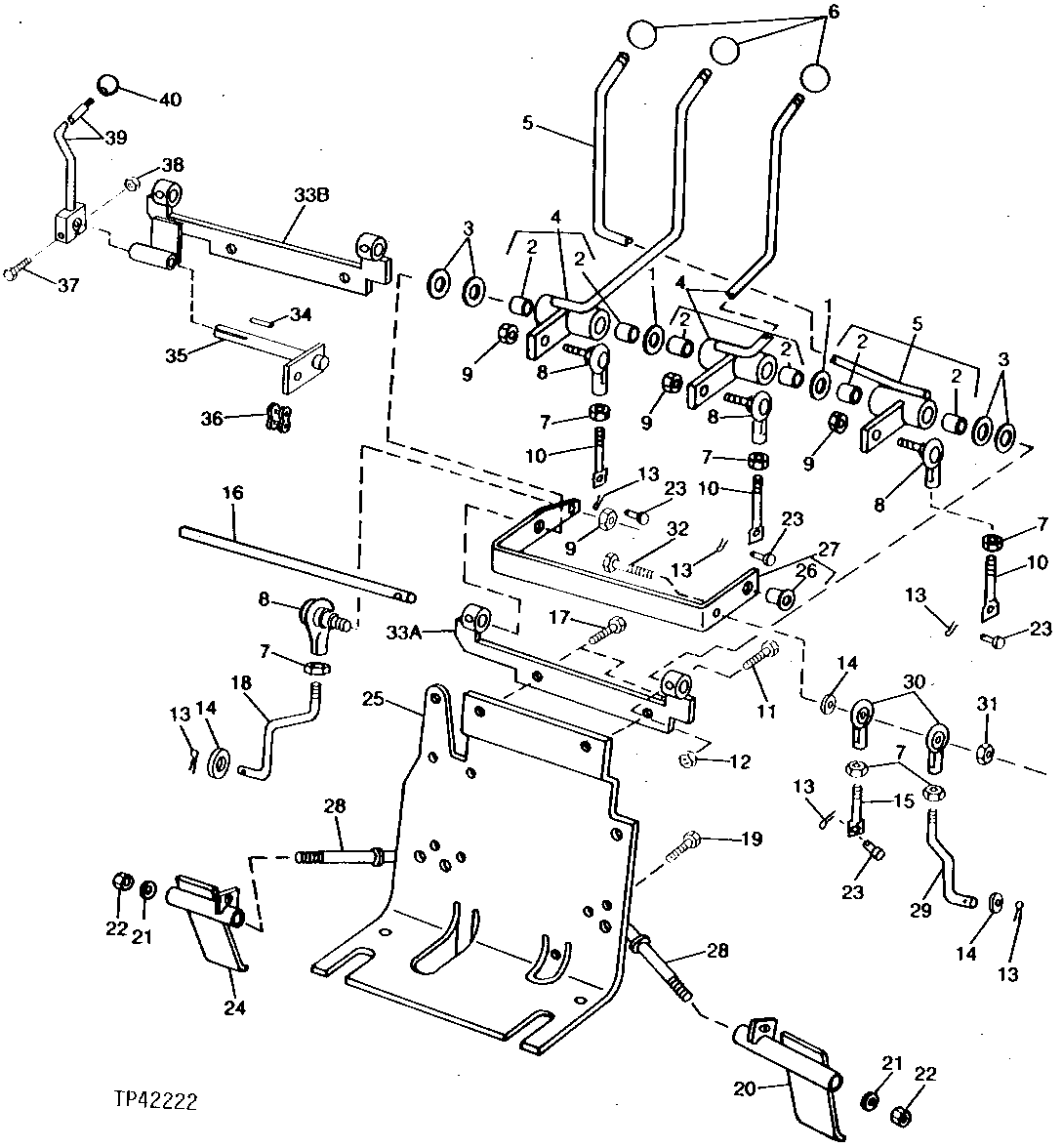

THREE-LEVER BACKHOE CONTROL VALVE LINKAGE (SERIAL NO. 760507- ) [03C03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1658	2	Washer	21/32" X 1" X 0.060"
2	T58109	6	Bushing	-
3	24H1658	1	Washer	21/32" X 1" X 0.060"
4	AT101142	2	LEVER	-
5	AT113886	1	LEVER	-
6	T68099	3	KNOB	-
7	14H466	6	NUT	3/8"
8	AT65619	4	Ball Joint	-
9	M68954	4	Lock Nut	-
10	T105825	3	Eyebolt	-
11	19M7320	1	Cap Screw	M6 X 40
12	14M7165	1	Lock Nut	M6
13	11M7081	6	Cotter Pin	2.500 X 20 MM
14	24H1305	3	Washer	13/32" X 13/16" X 0.065"
15	T106130	1	Link	-
16	T100818	1	PIN	-
17	19M7744	2	Cap Screw	M12 X 35
18	T118984	1	LINK	-
19	R72371	2	Cap Screw	(SUB FOR (2) R43569)
20	AT118622	1	PEDAL	L.H.
21	24H899	2	WASHER	21/32" X 1-1/4" X 0.120"
22	U44915	2	Lock Nut	-
23	T19155	4	Pin Fastener	-
24	AT118621	1	PEDAL	R.H.
25	AT134894	1	SUPPORT	(INSTALLED ON UNIT)
26	E70888	2	Bushing	-
27	AT101140	1	PIVOT	-
28	AT134932	1	SUPPORT	-
29	T118983	1	LINK	-
30	AM52354	2	Link End	-
31	14H1076	1	Nut	3/8"
32	19H3031	1	Cap Screw	3/8" X 2-1/2"
34	T13839	1	SHAFT KEY	(WITH EXTENDIBLE DIPPERSTICK)
35	AT107516	1	PIN	(WITH EXTENDIBLE DIPPERSTICK)
36	U13414	1	CHAIN LINK	(WITH EXTENDIBLE DIPPERSTICK)
37	19M7183	1	Cap Screw	(WITH EXTENDIBLE DIPPERSTICK)
38	14M7274	1	Nut	(WITH EXTENDIBLE DIPPERSTICK)
39	AT118625	1	LEVER	(WITH EXTENDIBLE DIPPERSTICK)
40	T68099	1	KNOB	(WITH EXTENDIBLE DIPPERSTICK)
..	AT142294	1	KIT	INCLUDES SUPPORTS, BALL JOINTS, DECALS, LEVERS, PEDALS, LINKAGE AND HARDWARE (CONVERT 2-LEVER TO 3-LEVER) (WITH EXTENDIBLE DIPPERSTICK) (SUB FOR AT135057)
..	AT142279	1	KIT	INCLUDES SUPPORTS, BALL JOINTS, DECALS, LEVERS, PEDALS, LINKAGE AND HARDWARE (CONVERT 2-LEVER TO 3-LEVER) (WITHOUT EXTENDIBLE DIPPERSTICK) (SUB FOR AT135056)
33A	AT132978	1	SUPPORT	(WITHOUT EXTENDIBLE DIPPERSTICK)
33B	AT133030	1	SUPPORT	(WITH EXTENDIBLE DIPPERSTICK)

THREE-LEVER BACKHOE CONTROL VALVE LINKAGE (SERIAL NO. 760507- ) [03C03]
