RELIEF VALVES (BUCKET SECTION) (WITH OR WITHOUT RETURN-TO-DIG) (SERIAL NO. -738468) [02J21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

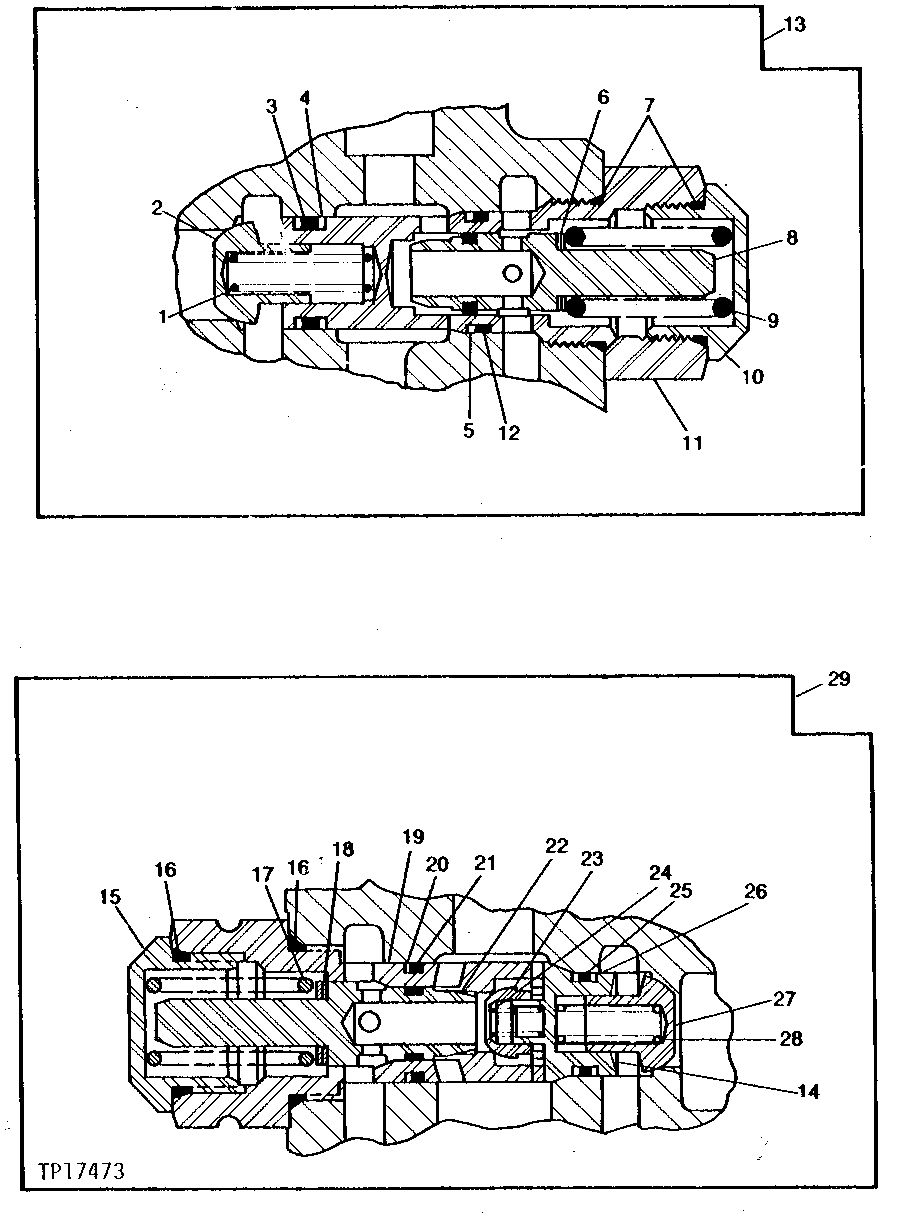

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T36012	1	Spring	-
2	U13616	1	Pressure Relief Valve	-
3	H63283	1	O-Ring	-
4	T35984	2	Back-Up Ring	(K)
5	T35985	1	Back-Up Ring	(K)
6	-	1	Part 6	(SUB AT101699)
7	W19903	2	O-Ring	(K)
8	-	1	Part 8	(SUB AT101699)
9	-	1	Part 9	(SUB AT101699)
10	-	1	Part 10	(SUB AT101699)
11	-	1	Part 11	(SUB AT101699)
12	Z29304	1	O-Ring	(K)
13	AT101699	1	Pressure Relief Valve	(TOP BUCKET SECTION)
14	-	1	Part 14	(SUB AT101701)
15	-	1	Part 15	(SUB AT101701)
16	W19903	2	O-Ring	(K)
17	-	1	Part 17	(SUB AT101701)
18	-	1	Part 18	(SUB AT101701)
19	-	1	Part 19	(SUB AT101701)
20	T35985	1	Back-Up Ring	(K)
21	Z29304	1	O-Ring	(K)
22	-	1	Part 22	(SUB AT101701)
23	-	1	Part 23	( T58862 NO LONGER AVAILABLE)
24	-	1	Part 24	( T58863 NO LONGER AVAILABLE)
25	H63283	1	O-Ring	(K)
26	T35984	1	Back-Up Ring	(K)
27	-	1	Part 27	( T58864 NO LONGER AVAILABLE)
28	-	1	Part 28	( T58865 NO LONGER AVAILABLE)
29	AT101701	1	Pressure Relief Valve	(BOTTOM BUCKET SECTION)
